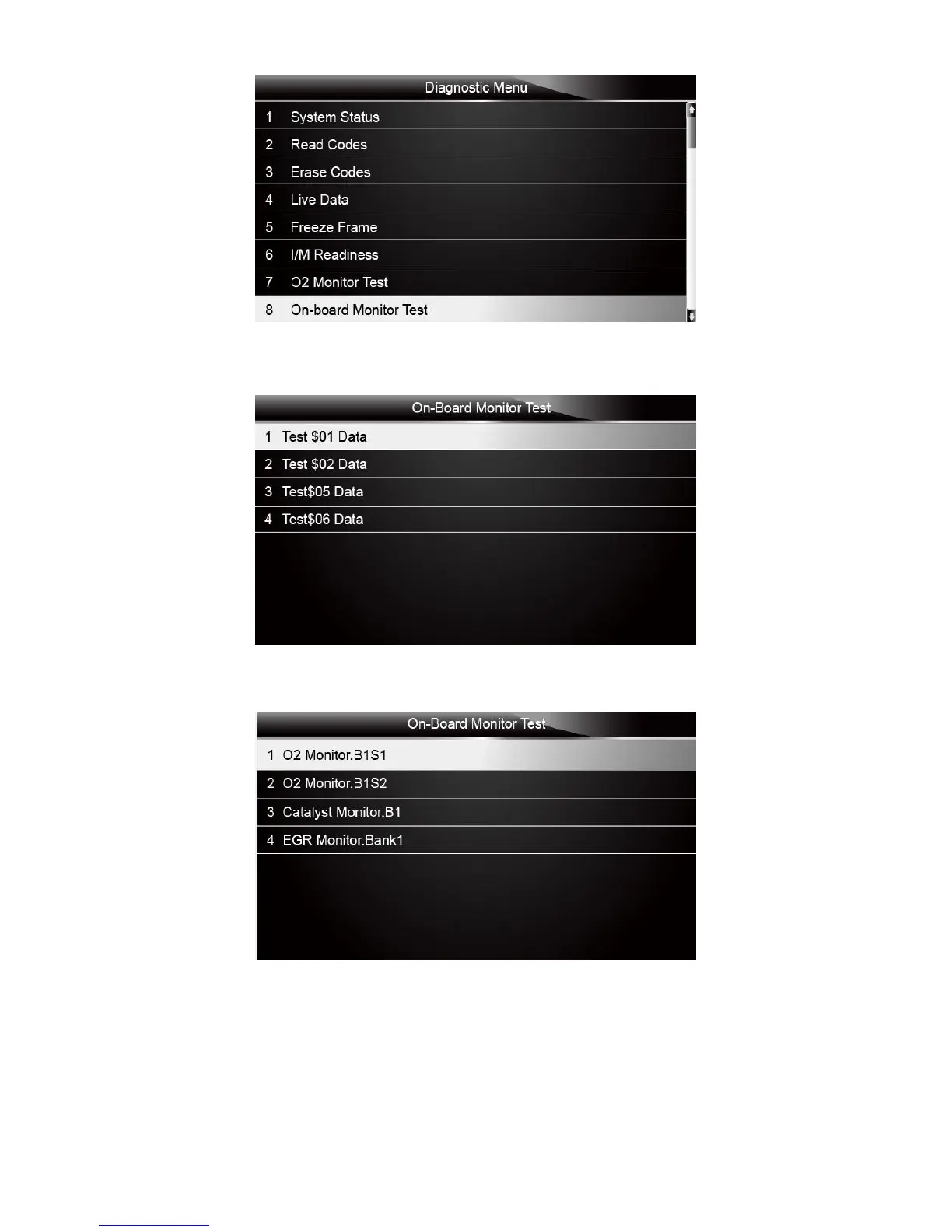

Figure 5-27 Sample Diagnostic Menu Screen
2. Depending on the protocol the vehicle used, one of these 2 screens shows.
Figure 5-28 Sample Non-CAN Vehicle Test Screen
Figure 5-29 Sample CAN vehicle test screen
3. Scroll with the arrow keys to highlight a test group and press the ENTER key to confirm. A
screen with details of the selected sensor displays. Use the up and down arrow keys to scroll
through data to select lines, and left and right arrow keys to scroll back and forth through
different screens of data.
For non-CAN vehicles, test screen is illustrated as below:
To Next Page
