22 U32-2 FPI Direct Vent Gas Insert
PARTS LIST
1) 420-122 Fan Access Panel
2) 420-142 Gasket - Fan Access Panel
422-518/P Fan Assembly:
3) 910-215/P Fan Motor (120 V)
5) 910-750 Power Cord (120 V)
910-752 Wire Harness (intermediate)
7) 910-142 Thermodisc-Fan Auto ON/OFF
8) * Fan Switch Cover
9) * Thermodisc Bracket
10) 420-140 Flue Restrictor
12) * Air Hood
13) * Levelling Bolt 5/16 x 3" Hex Hd
14) 948-045 Jack Chain
15) 948-247 Spring Lever Handle
16) 948-025 Door Extension Spring
17) * Wire Holder Clip
18) * Strain Relief
19) * Grommet for Power Cord
402-969 Conversion Kit to Propane
948-220 Logo Plate - Hampton
918-011a Manual
21) 420-920 Flush Louvers (Set) - Black/Gold
420-922 Flush Louvers (Set) - Black
420-923 Flush Louvers (Set) - Black/Steel
25) 420-940 Bay Louvers (Set) - Black/Gold
420-938 Bay Louvers (Set) - Black
420-942 Bay Louver (Set) - Black/Steel
422-928 Brick Panel (Set)
33) 902-256 Brick Panel - Right Side
34) 902-257 Brick Panel - Left Side
35) 902-258 Brick Panel - Back
36) 400-090 Brick Clip

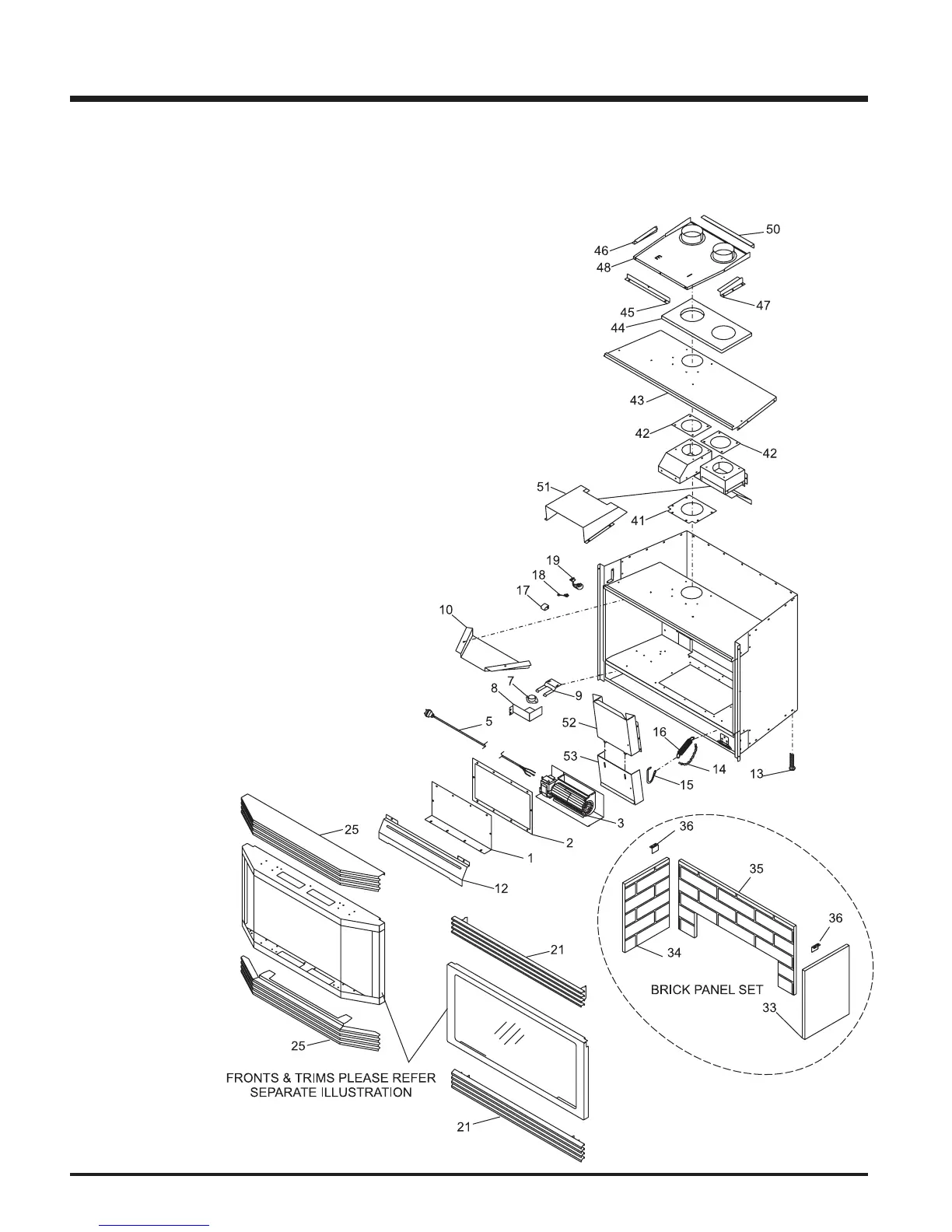

MAIN ASSEMBLY
Part # Description Part # Description
41) 420-157 Gasket - Transition Box Bottom
42) 420-054 Gasket - Transition Box Top
43) * Stove Top
44) 420-048 Thermal Insulation
45) * Adaptor Stop
46) * Adaptor Holding Brkt-Left
47) * Adaptor Holding Brkt-Right
48) 320-518 Flue Adaptor Assy
50) * Insulation Hold Down Brkt
51) 420-170 Top Fan Air Channel
52) 420-171 Upper Fan Air Channel
53) 420-172 Lower Fan Air Channel
*Not available as a replacement part.
To Next Page
