FPI U32-LP2 - Burner Assembly & Log Set

23U32-2 FPI Direct Vent Gas Insert
PARTS LIST
422-574/P Valve Assembly - NG
422-576/P Valve Assembly - LP
52) 910-040 Valve - Robertshaw NG
53) 910-190 Ignitor Piezo and Nut
54) * Valve Heat Shield
55) * Valve Tray
58) 904-240 Burner Orifice Nat. Gas #37
904-390 Burner Orifice LP # 52
936-170 Orifice Gasket
66) 910-038 Pilot Assembly - 3 Flame (NG)
910-039 Pilot Assembly - 3 Flame (LP)
67) * Pilot Holder
68) W840470 Pilot Assembly Gasket
69) 402-935 Log Set
402-572 Ember Package
70) 420-143 Valve Tray Gasket
71) 402-526 Grate/Diffuser Assy
72) 402-519 Burner Assembly (NG/LP)
73) * Log Tray Mount Bracket
74) * Log Tray Rear
90) 910-424 Pilot ON/OFF 2-1/2" (RS)
Extension Knob
91) 910-426 HI/LOW 2-1/2" (RS)
Extension Knob
*Not available as a replacement part.

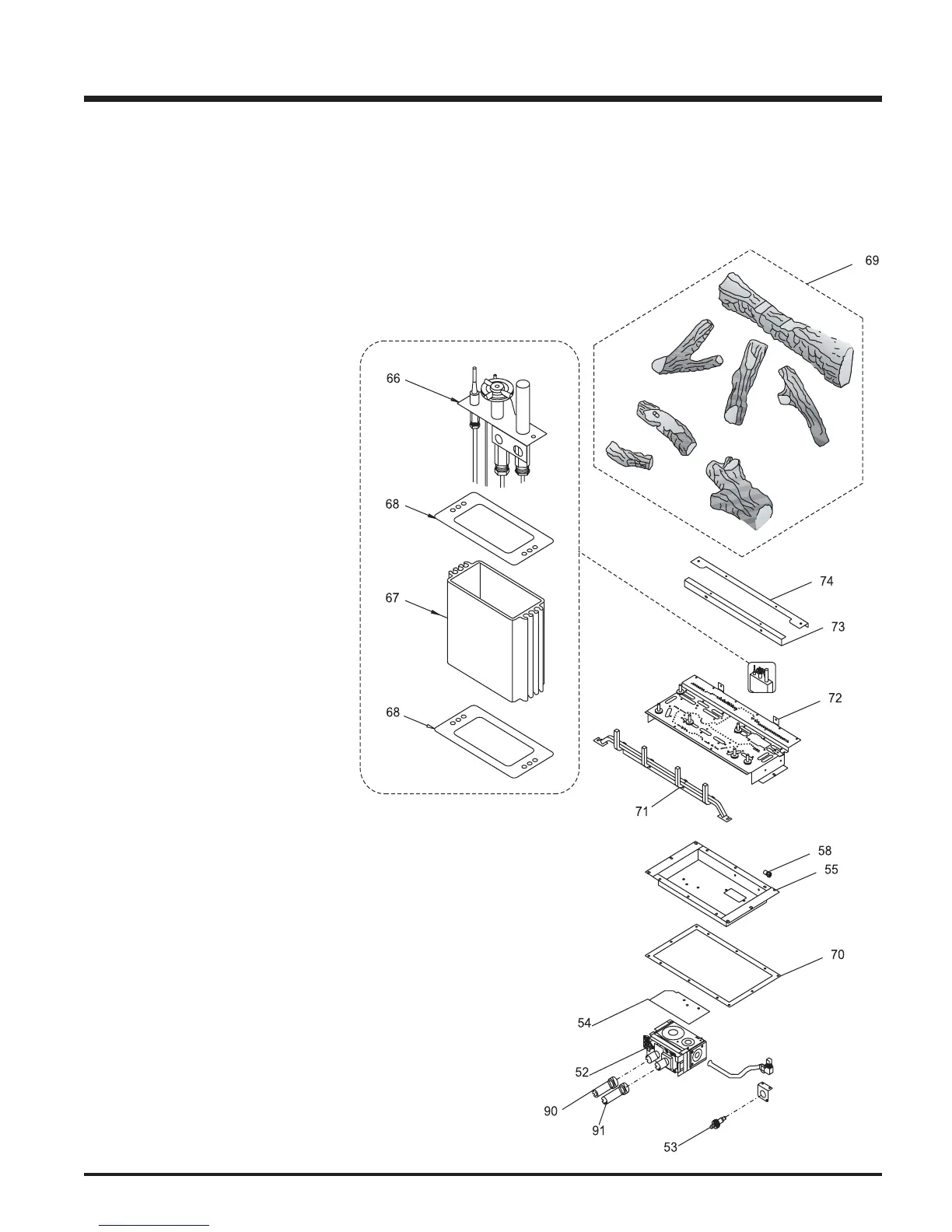

BURNER ASSEMBLY & LOG SET
Part # Description
