FPI U32-LP2 - Bay & Flush Front Assembly

24 U32-2 FPI Direct Vent Gas Insert
PARTS LIST
Bay Door
420-931 Complete Bay Door with Black Trim
102)* Glass Retainer Side (Top & Btm)
103)* Glass Retainer Front (Top & Btm)
106)940-315/P Side Glass
107)936-243 Gasket
108)940-314/P Center Glass
110)902-183 Bay Brick Panel
111)* Door Trim
112)904-196 1" Round Magnet
910-424 Pilot On/Off 2-1/2" Extension Knob
910-426 Flame Hi/Low 2-1/2" Extension Knob
402-956 Gold Trim Bay Front
402-958 Steel Trim Bay Front
113)422-960 Bay Front Screen
*Not available as a replacement part.

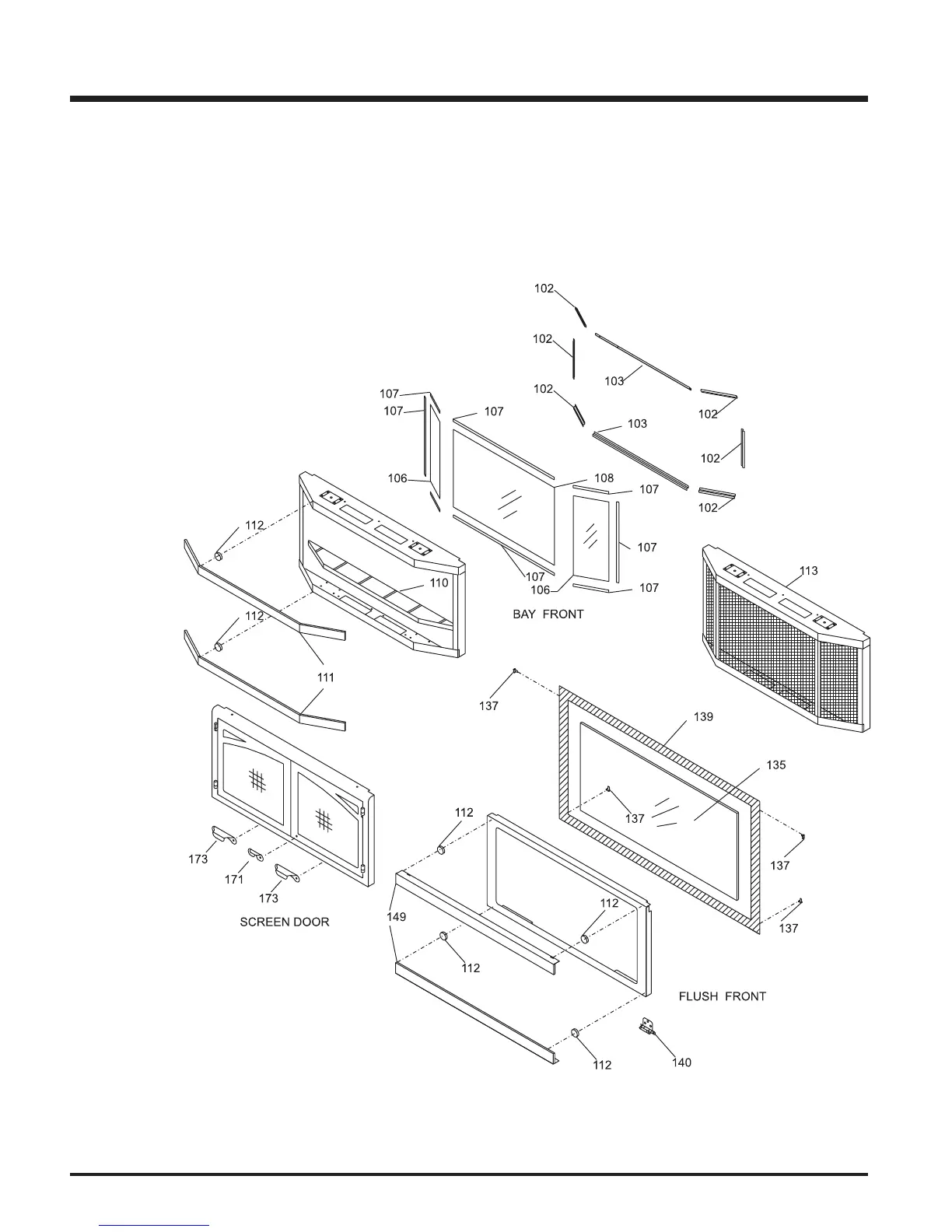

BAY & FLUSH FRONT ASSEMBLY
Part # Description
Flush Door
422-530 Complete Flush Door Assy
112)904-196 1" Round Magnet
135)940-307/P Flush Glass
137)904-691 U Clip
139)936-155 Tadpole Glass Gasket
149)420-932 Flush Trim Top/Btm (Set) -Gold
422-943 Screen Door (Optional)
171)512-546 Door Latch Assembly
173)430-133 Handle
904-712 U-clip for frame
