INSTALLATION
Typical Installation
4
INSTALLATION
Surface pump applications must always take into account NPSH (Net Positive Suction Head), maximum
pressure, minimum rated capacity, and other product specifications. Consult the product catalog and FPS
Irrigation & Industrial Pumps Engineering Manual on www.franklinwater.com
.
IMPORTANT: Refer to the motor manufacturer for motor hazards, installation, operation, and maintenance.

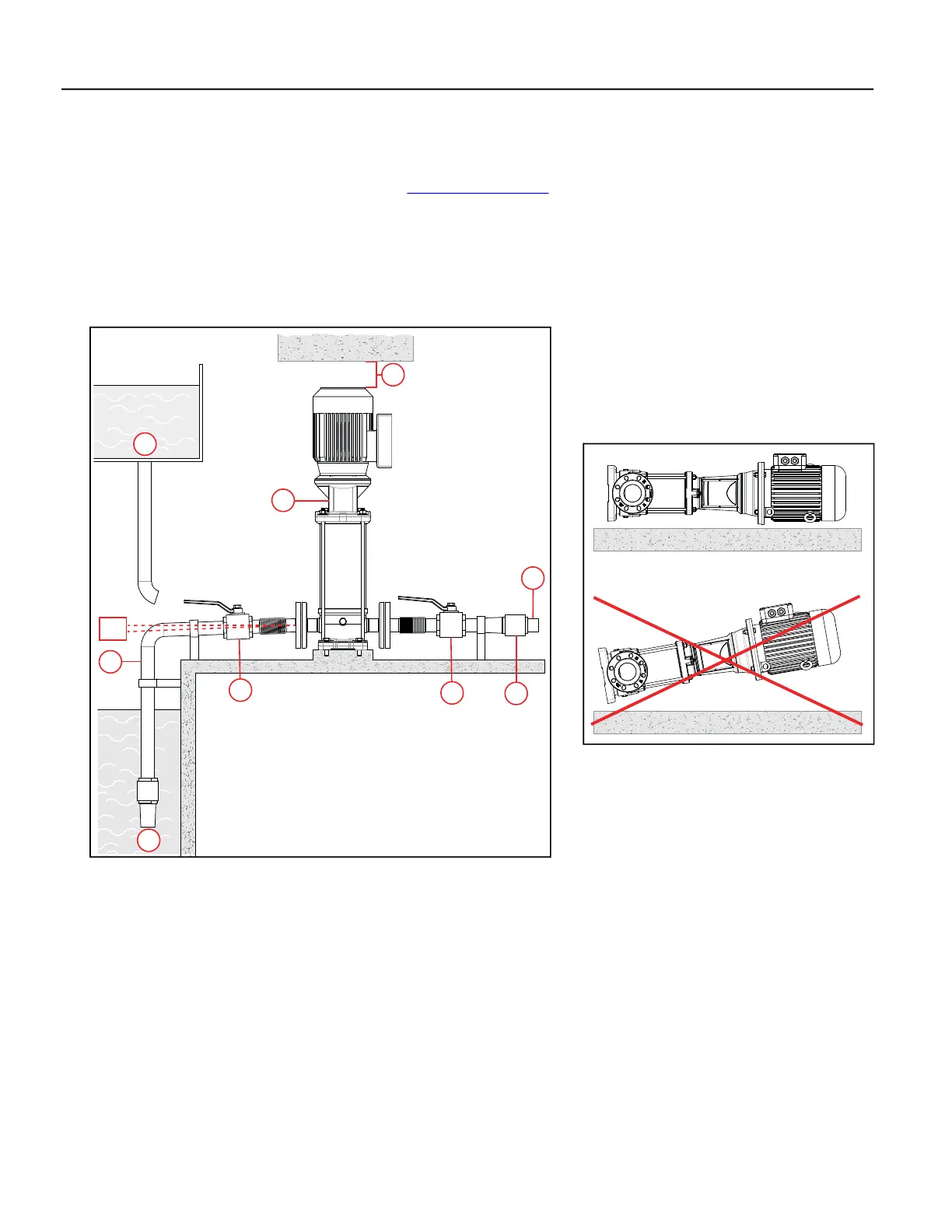

Typical Installation
IMPORTANT: Always install the pump-motor vertically with the motor above the pump, except in a prop-
erly-supported horizontal installation.
00102477 11/2013
4
6
1
3
5
2
5
2°
7
8
1 VR Series 3 Discharge line 5 Gate valve 7 Flooded suction installation
2 4-inch (10.2 cm) clearance minimum 4 Check valve 6 Suction line 8 Suction lift installation
