ASSEMBLY INSTRUCTIONS
STEP 1
9
8
7

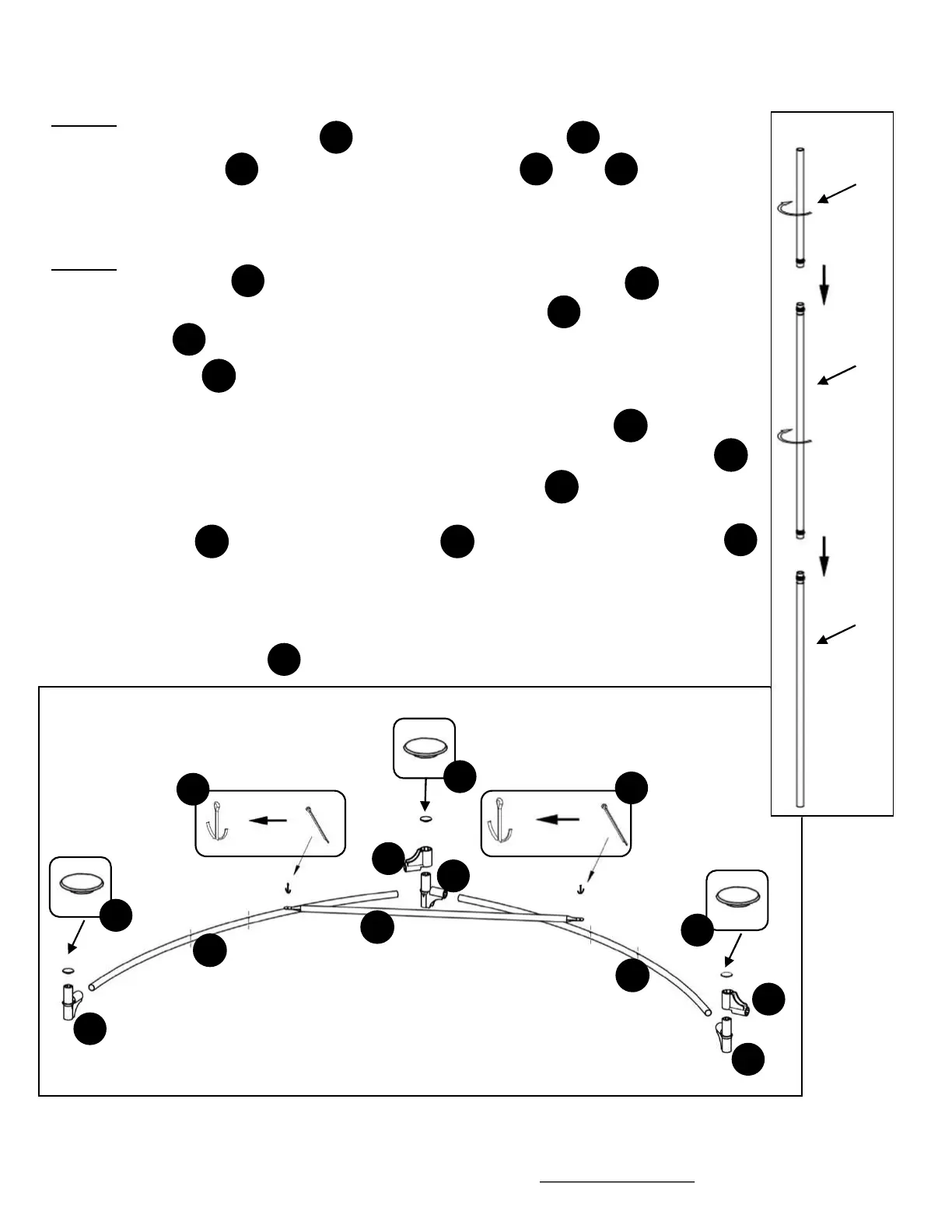

STEP 1:
Screw the short upper tube into the middle tube and tighten.
Screw lower tube into the connected tubes and , tighten to
complete one upright pole. Repeat to build the other two upright poles.
STEP 2:
Place T-connector into one end of each horizontal tube . To
connect the two horizontal poles, join T-connector and
L-connector to produce the corner hinge. Place the two ends of
horizontal pole without connectors into this connection hinge.
Place this assembly onto ground to attach the cross brace . Make
sure the open connector holes are facing down. Position cross brace
over the pre-drilled holes on both horizontal tubes .
Connect brace onto horizontal tube by pushing the cotter pin
through the cross brace and pre-drilled holes in the tubes, then bend
the pins to create snug fit.
Place the adapter cap on each connection point.
