INSTALLATION COMPONENTS
D 2 pcs
Bracket for the upper chim-
ney section
E 9 pcs Wall plugs
F 7 pcs
Screws 4,5 x 39 TORX T25
G
2 pcs
Screws 2.9 x 9.5 TORX T10
J 1 pcs
Protection for plug
K 2 pcs
Screws 2,8 x 30
L 1 pcs
P-type sealing strip 5,5 x 9
D
A
380 5
100
C
C
G
J
L
K
82 82
B
598 698 898
H 144,5 158 184
E
F
H H
I
I
170

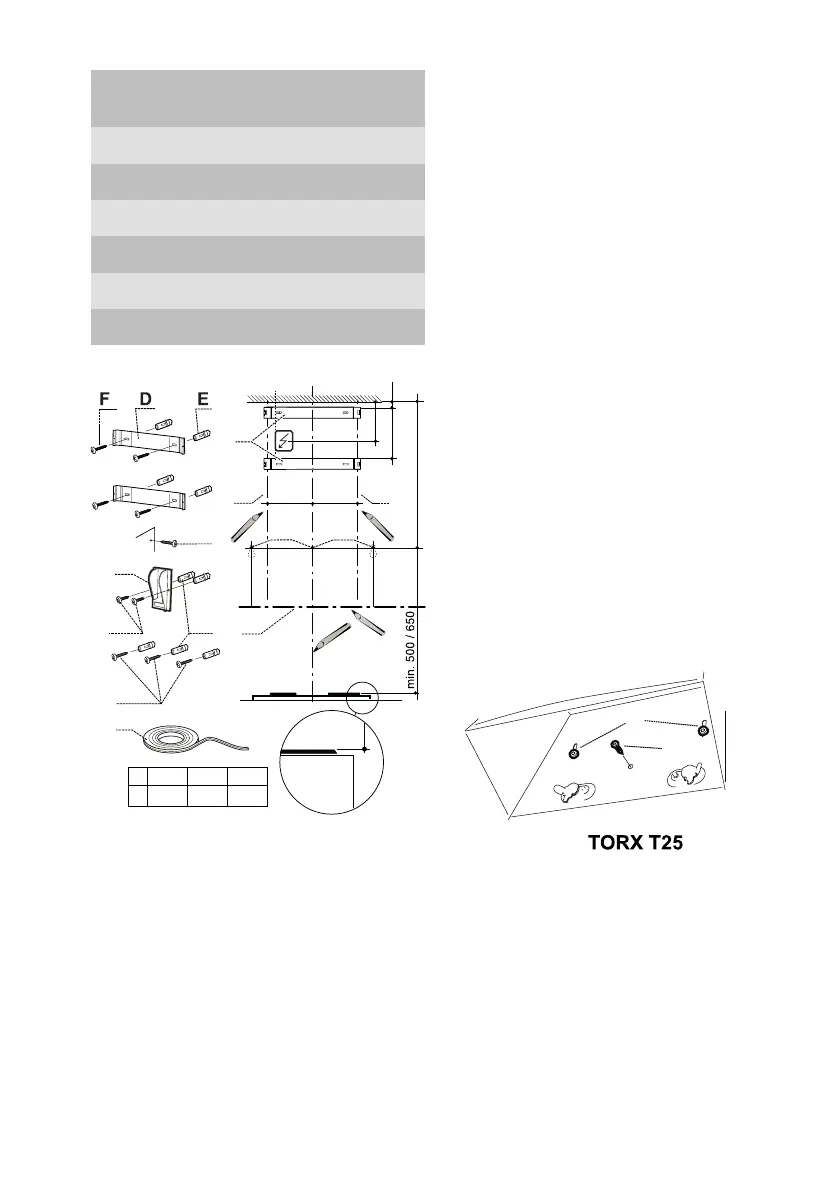

Fig. 3
Installation of wall mounts, marking
the wall
Attention!
The total height is the distance between
the bottom of the cooker hood and the
top of the chimney, see Fig. 1. When in-
stalling with extended chimney sections,
refer to the separate instructions and
measurements.
Mark a centre line A above the stove where
the cooker hood is to be installed.
Draw a horizontal reference line B, above
the stove, Fig. 3.
Place the upper bracket D for the chimney
on the wall, as shown in Fig. 3.
Mark the bracket's screw holes on the wall.
Place the lower bracket D for the chimney
on the wall, as shown in Fig. 3, below the
upper bracket, and mark where the screw
holes should go on the wall.
Mark the screw holes for the mounting of
the cooker hood, C, on the wall, as shown
in Fig. 3.
Drill Ø 3,5 mm holes in the centre of all the
marked points.
If the supplied plugs are to be used, drill Ø
5,5 mm holes. Drill the hole Ø 5 mm deeper
than the length of the plug. Place wall plugs
E in the holes. Check that the screws and
plugs used are intended for the wall materi-
al (red plastic plug is for attachment in con-
crete, brick and natural stone).
Mark a vertical line I, as shown in the mea-
surements, Fig. 3, on each side of the cen-
tre line A.
Installing the cooker hood
Remove grease filter and motor unit, see
Fig. 10 and Fig. 11.
Fig. 4
Prior to mounting, screw two screws F into
the pre-drilled holes, Fig. 4.
Hang the cooker hood and adjust it
horizontally
Secure it in place with a screw F.
991.0357.897/D000000006703/180172/2021-09-30 13
