Franke 729 - Chimney and Filter Installation

Mounting the chimney, upper section
I
L
I
G
L
D

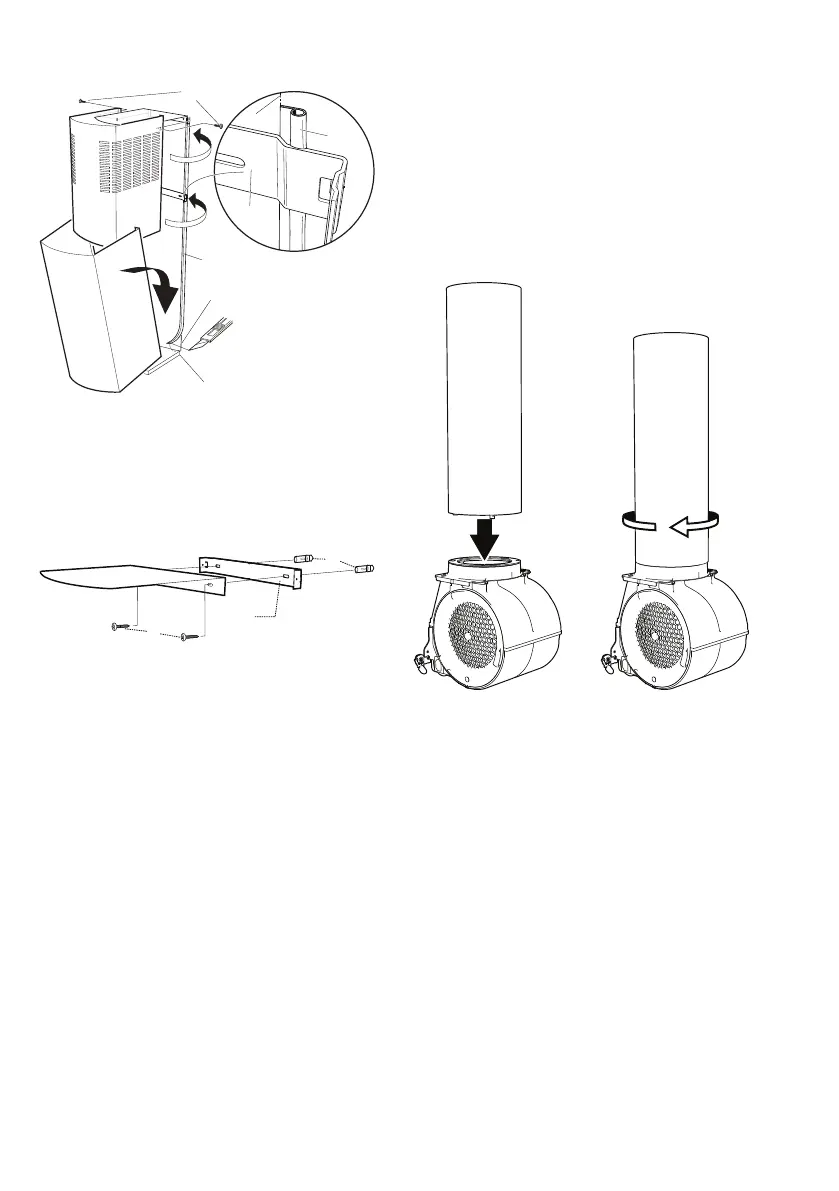

Fig. 5
Fit the sealing strip, Fig. 5L, on the outside
of the vertical lines between the ceiling and
top of the cooker hood. Cut the sealing
strip at the lower edge towards the hood as
shown in Fig. 5.
D
F
E
Fig. 6
Fit the upper bracket, D, to the wall toge-
ther with the carbon filter cover, Fig. 6.
Make sure you centre the parts against
each other.
Fit the lower bracket, see Fig. 3.
Fit the upper drum on the wall by carefully
moving the two sides outwards and clipping
them round the brackets D, see Fig. 5
Make sure you press the drum towards to
the wall so that it snaps into place behind
the brackets. Make sure that it is secure.
Secure the sides to the upper bracket D us-
ing the 2 screws G, Fig. 5.
Check that the sealing strip is in position
before fitting the lower drum.
Mounting the chimney, lower section
Fit the lower drum on the wall by carefully
moving the two sides outwards and careful-
ly putting it down on the hood. Press the
drum down firmly into place. Make sure
that it is fitted inside the edge of the hood
chassis. Hook the top into place between
the upper chimney section and the wall.
Make sure that it snaps into place.
Removal of protective plastic
Remove all protective plastic from the filter
and any other parts of the product.
Installing the carbon filter cartridge
A B
Fig. 7
Fit the three locking pins on the carbon filt-
er cartridge in the mounting ring, Fig. 7A,
lock the carbon filter cartridge by turning it
clockwise. Fig. 7B.
