INSTALLATION

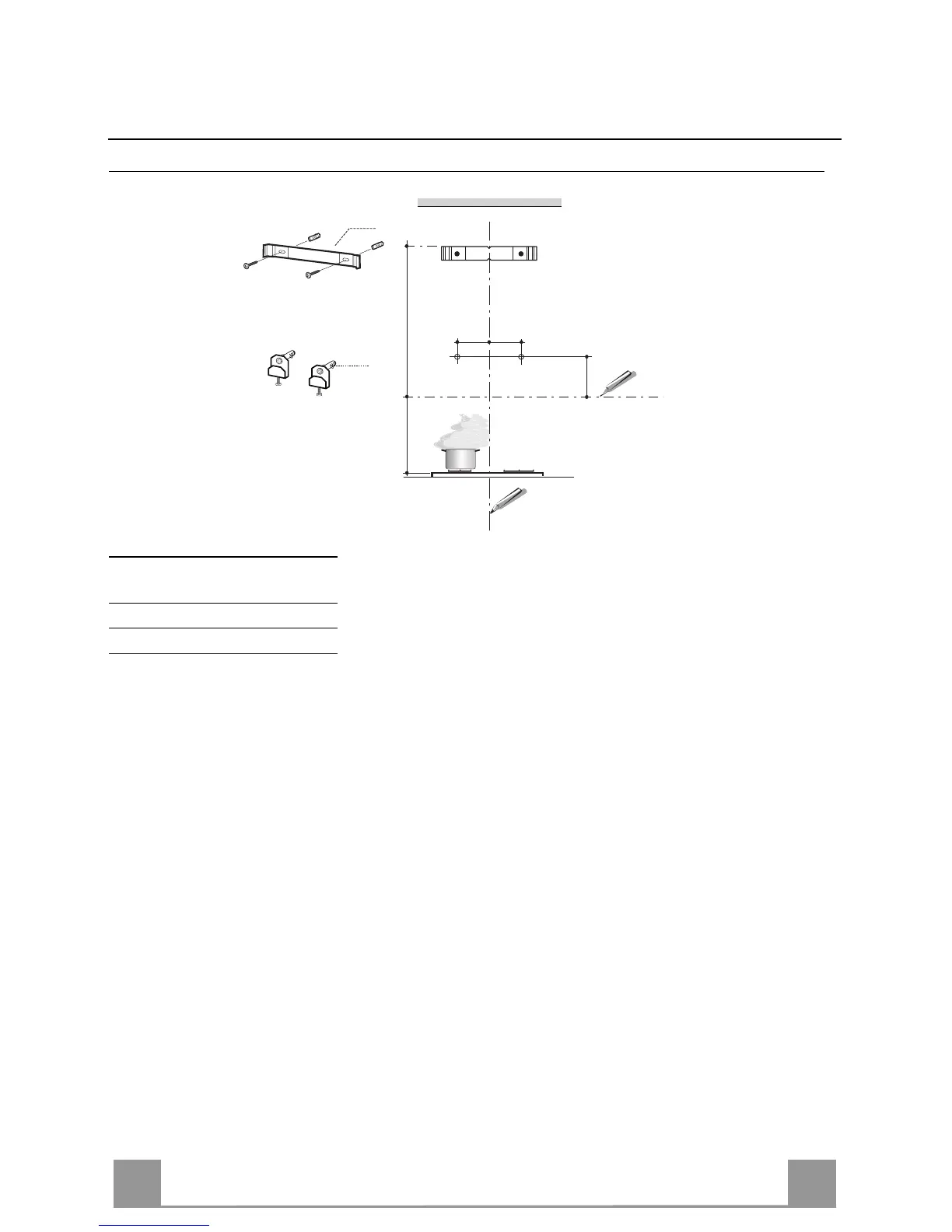

Wall drilling and bracket fixing
Hood dimension share X
60 cm 128 mm
90 cm 150 mm
120 cm 175 mm
Wall marking:
• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the
centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob.
• Mark a reference point as indicated at X mm (see X on picture) from the vertical reference
line and 395 mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill at the points marked, using a ø 12 mm drill bit.
• Insert the bracket plugs 11a into the holes and screw into place.
• Place bracket 7.2 on the wall as shown, 750 mm above the horizontal reference line, align-
ing the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Drill ø 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
• Fix the brackets using the 12a screws (4,2 x 44,4) supplied.
11a
650 min.
750
7.2
XX
395
