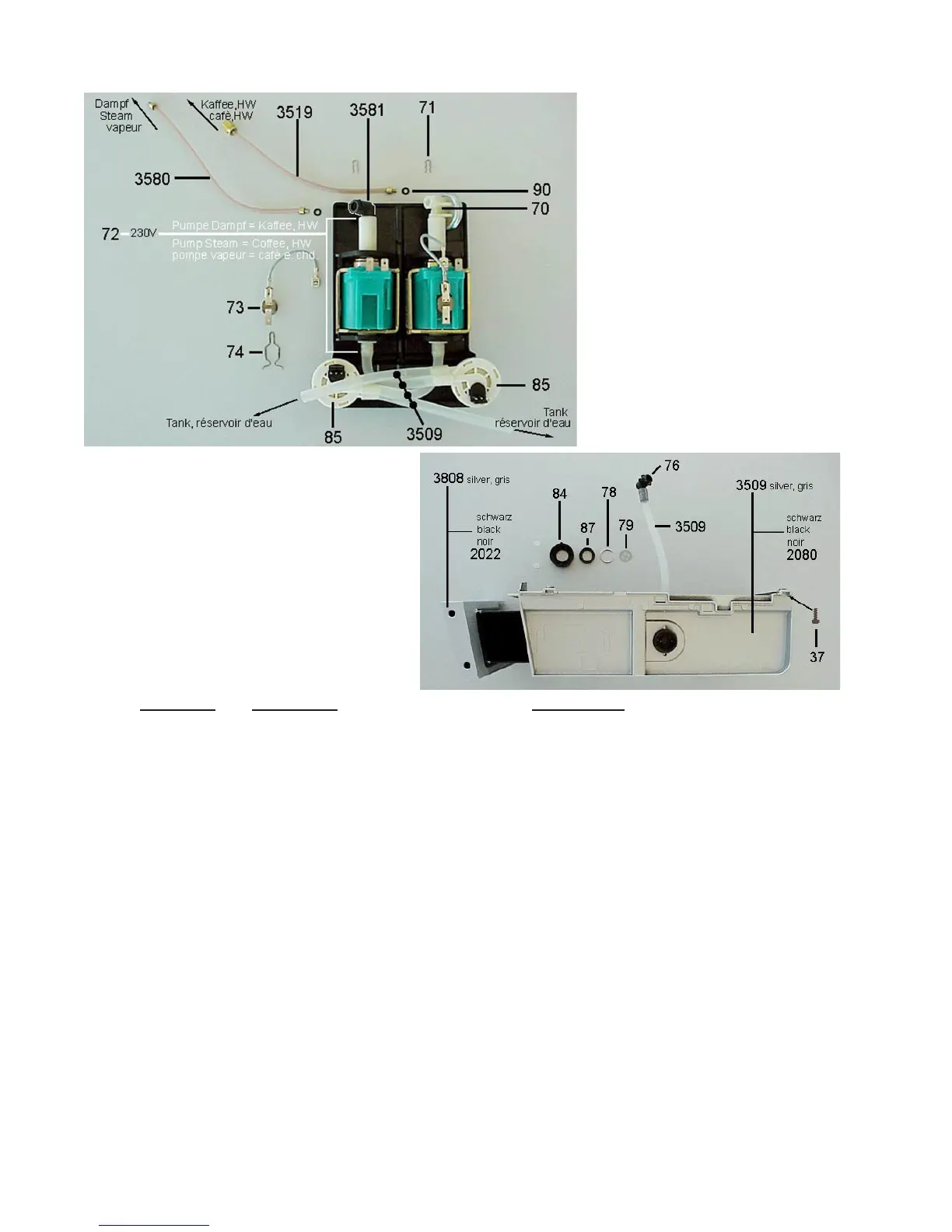

18
Flair Parts Manual
ESI Parts Dept. 800-310-5710
37 Screw 3x12 315038
70 Membrane controller 315065
71 Clamp 315066
72 Pump 230v 315067
Pump 110v 315350
73 Thermostat 115C/10A 315068
74 Clamp to thermostat 315069
76 Angled flange black 315071
78 Safety ring 315073
79 Sieve 315074
84 Valve cap 315079
85 Flowmeter 315080
87 Inner distributing collar 315082
90 O-ring epdm 3.69x1.78 70 shore 315085
2080 Tank base black 315282
3509 Hose silicone 315629
3519 Hose 180mm, 1 clamp ring, 1nut 315609
3580 Tube 180mm, 2 locking rings 315640
3581 Connection Steam Pump 315501
PUMPS AND WATER FEEDING
Position # Description Part Number
