9
Flair Parts Manual
ESI Parts Dept. 800-310-5710
37 Screw 3x12 315038
140 Silicone hose 3x1x200mm 315125
199 Microswitch Cherry 301011
241 Silicone hose ID= 3 mm 296485
3536 Front CNS Outlet Flair 315628
3537 Outlet pipe coffee 315536
3538 Coffee outlet Flair 315568
3539 Support coffee outlet 315542
3540 Support Adapter 315530
3541 Guide to coffee outlet Flair cpl. 315599
3542 O-Ring silicone 5x1.5mm 315569
3543 Adapter Steam 315535
3544 Cover microswitch Flair 315554
3545 Circlip ring 8mm (Adapter Steam) 315627

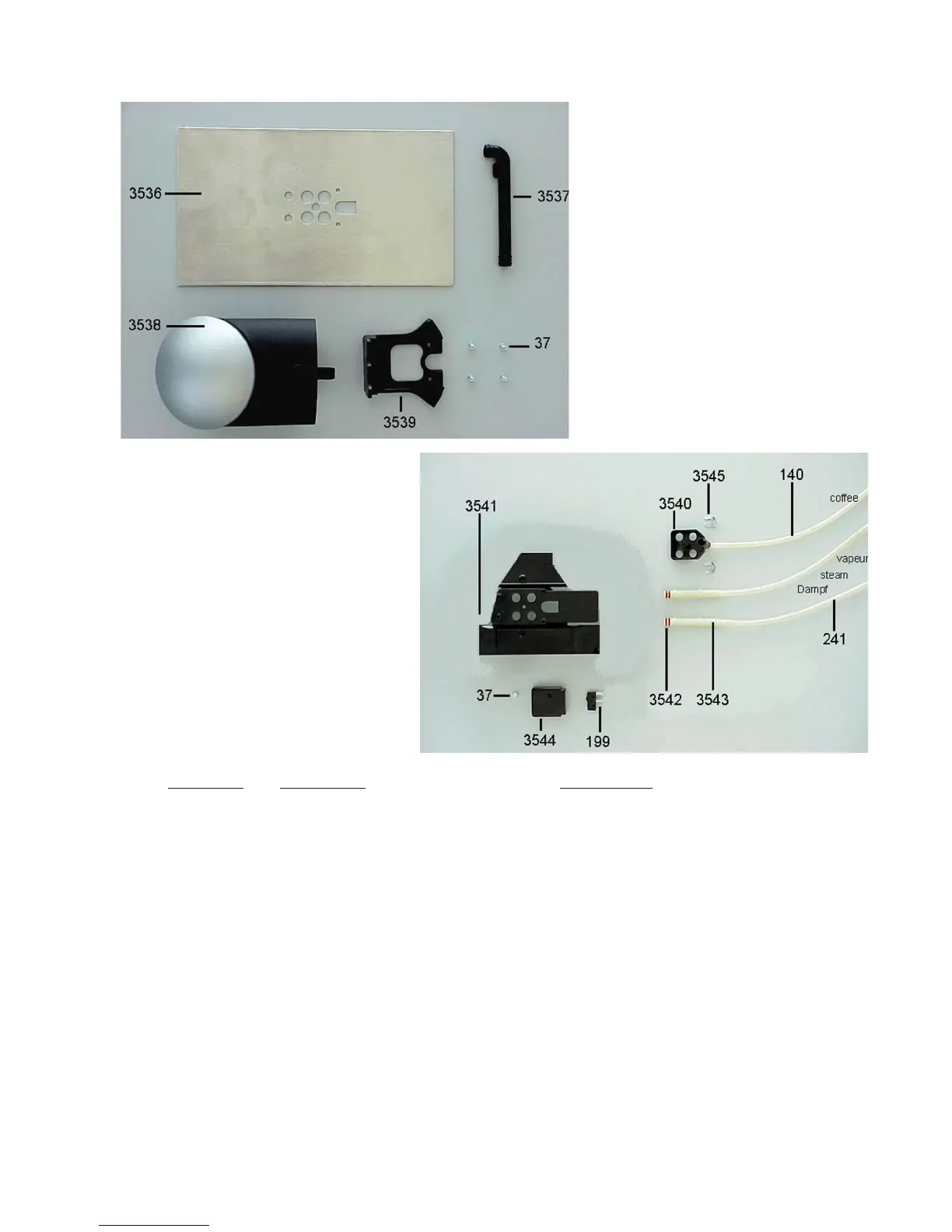

COFFEE OUTLET
Position # Description Part Number
