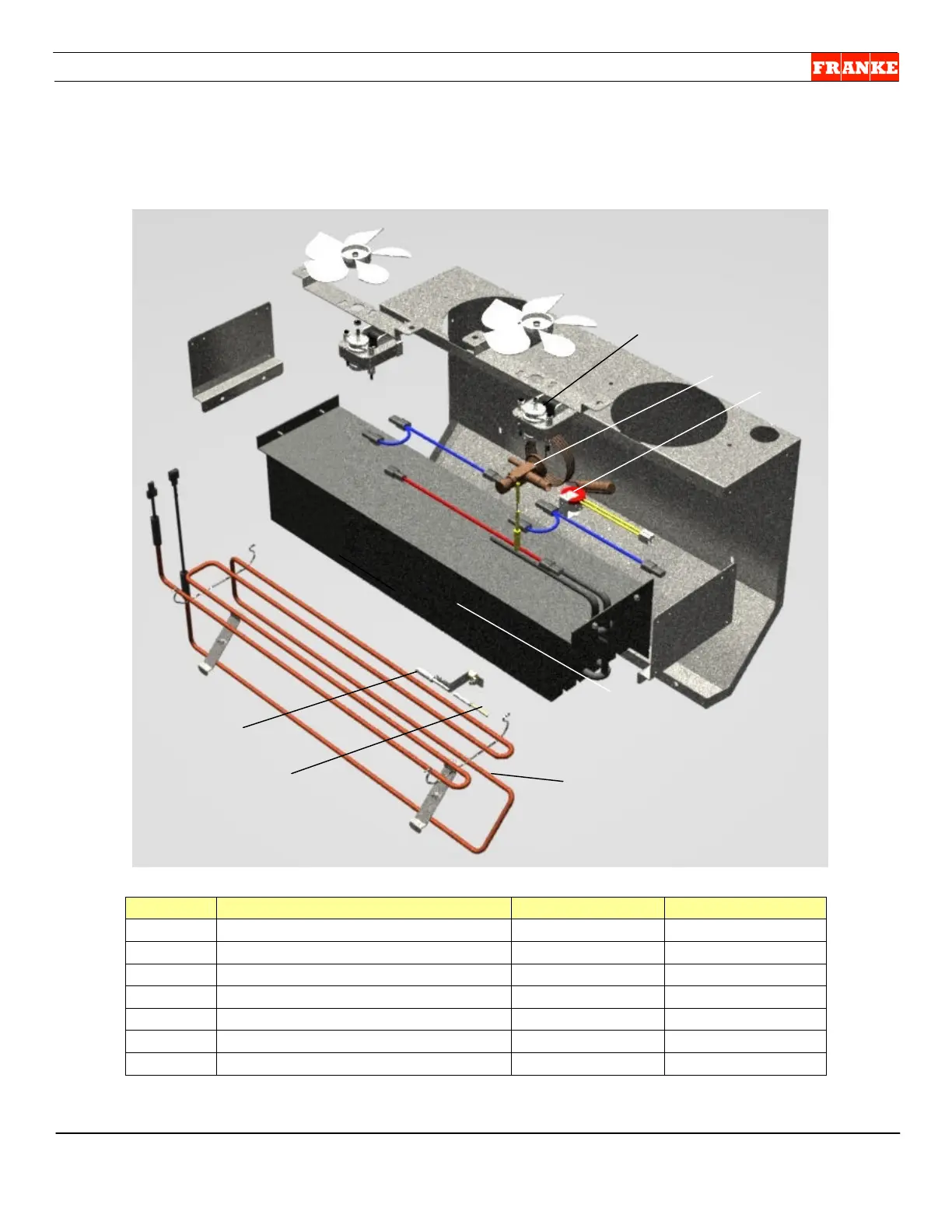

Section 6 – Key Parts & Exploded Parts Diagrams: Evaporator Coil
Key No.
Part Description
HCMF
-
18 P/N
:
HCMF
-
30 P/N
:
1
Defrost Heating Element
19004386 19004308
2
Evaporator Coil
19002059 19002060
3
Thermostatic Expansion Valve
19001190 19001190
4
Evaporator Fan
Motor
19000455 19000455 (2 ea.)
5
High Limit Switch
19004832 19004832
6
Air Temperature Sensor
(grey)
19004769 19004769
7
Defrost Coil Sensor
(yellow)
19004832 19004832







