HCMF Service Manual

For Technical Support, Call 800-537-2653. Page 5 Doc. No. 19005309 - Copyright  2012 Franke, Inc.

Section 3 – Electric & Compressor Schematics:

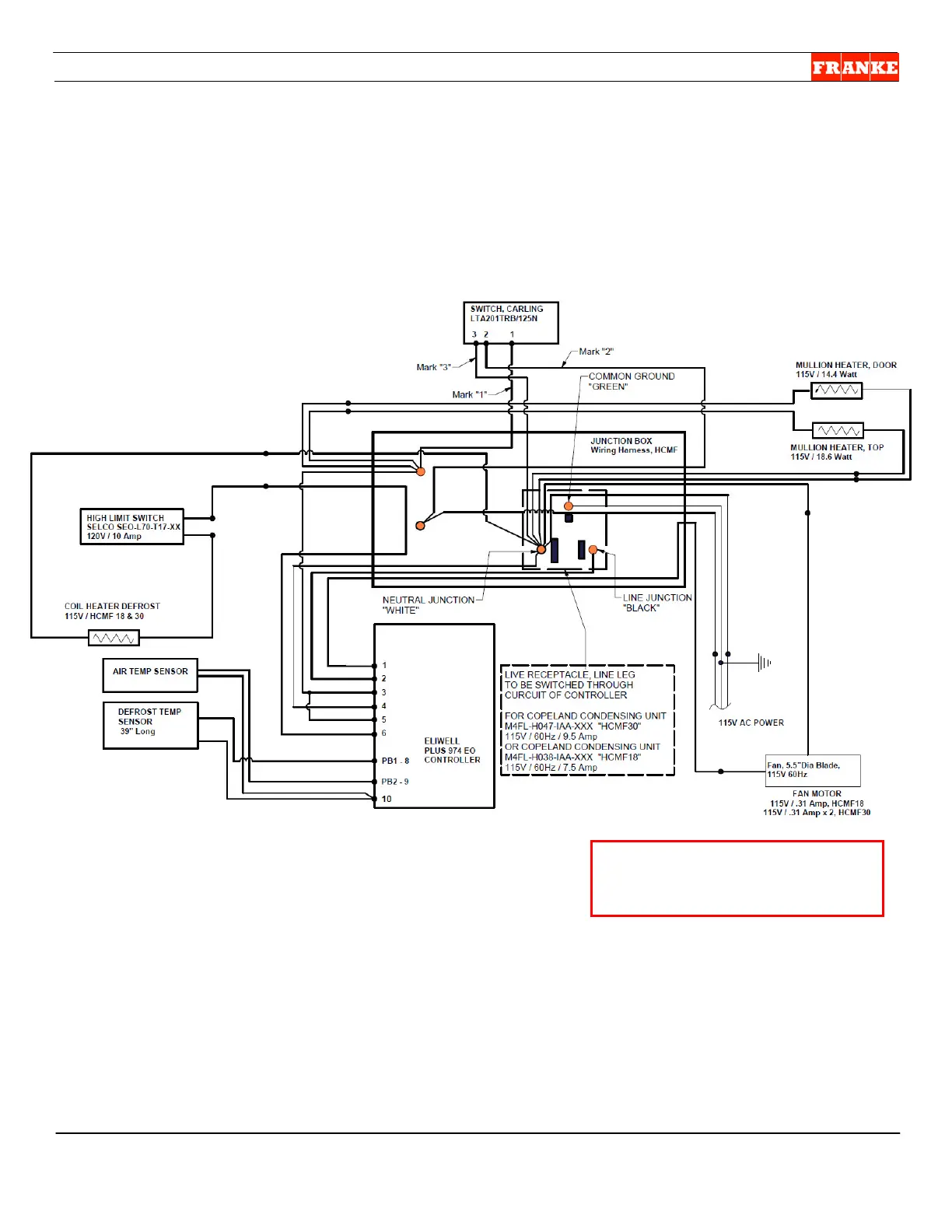

HCMF-18 & HCMF-30 Wiring Harness

NOTE:

Model HCMF-18 has one fan motor

Model HCMF-30 has two fan motors
