Freedom Won eTower - Detailed External Features

eTower Installation Manual Revision 0
Page 3 | 23

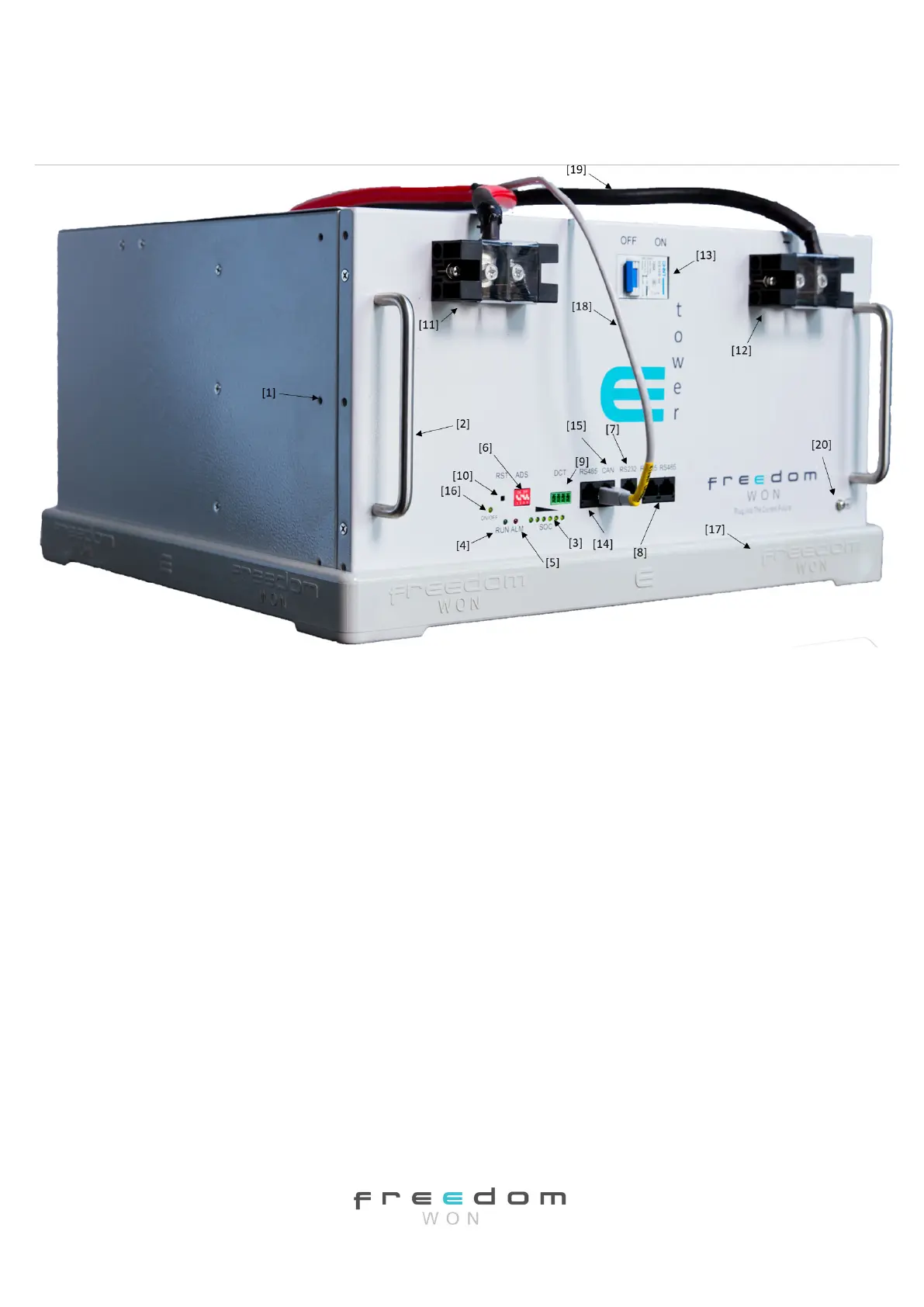

Figure 2.1 Labelled Image of the eTower with four modules stacked together (Labelling
corresponds with the text)
2.2 External Features Detailed Information
Below provides more detailed information pertaining to the external features listed in 2.1
above.
2.2.1 19” Rack Bracket Fixing Points
The eTower modules can be installed into a standard 19” rack. There are three fixing
threads on each side of the module near the front, as indicated, that match the 19” rack
mount brackets available from Freedom Won on request. The primary installation
arrangement is intended to be stacking the modules into a tower using the inter-module
pedestal, but for applications requiring 19” rack mounting the required brackets can be
installed in minutes. Please specify how many of these brackets are required when ordering
eTower.
2.2.2 Carrying handles
Two carrying handles are fitted to the front face of each module to ensure easy and safe
handling and lifting onto the pedestal. Freedom Won recommends two people for stacking
the eTower modules.
