Battery Access
The batteries on a standard vehicle are located on
the driver’s side, behind the fuel tank. See Fig. 3.4.
To access the batteries, pull the cotter pin from the
latch on the battery box cover, then release the latch
and lift off the cover.
12/15/2010 f545719
1
2
3

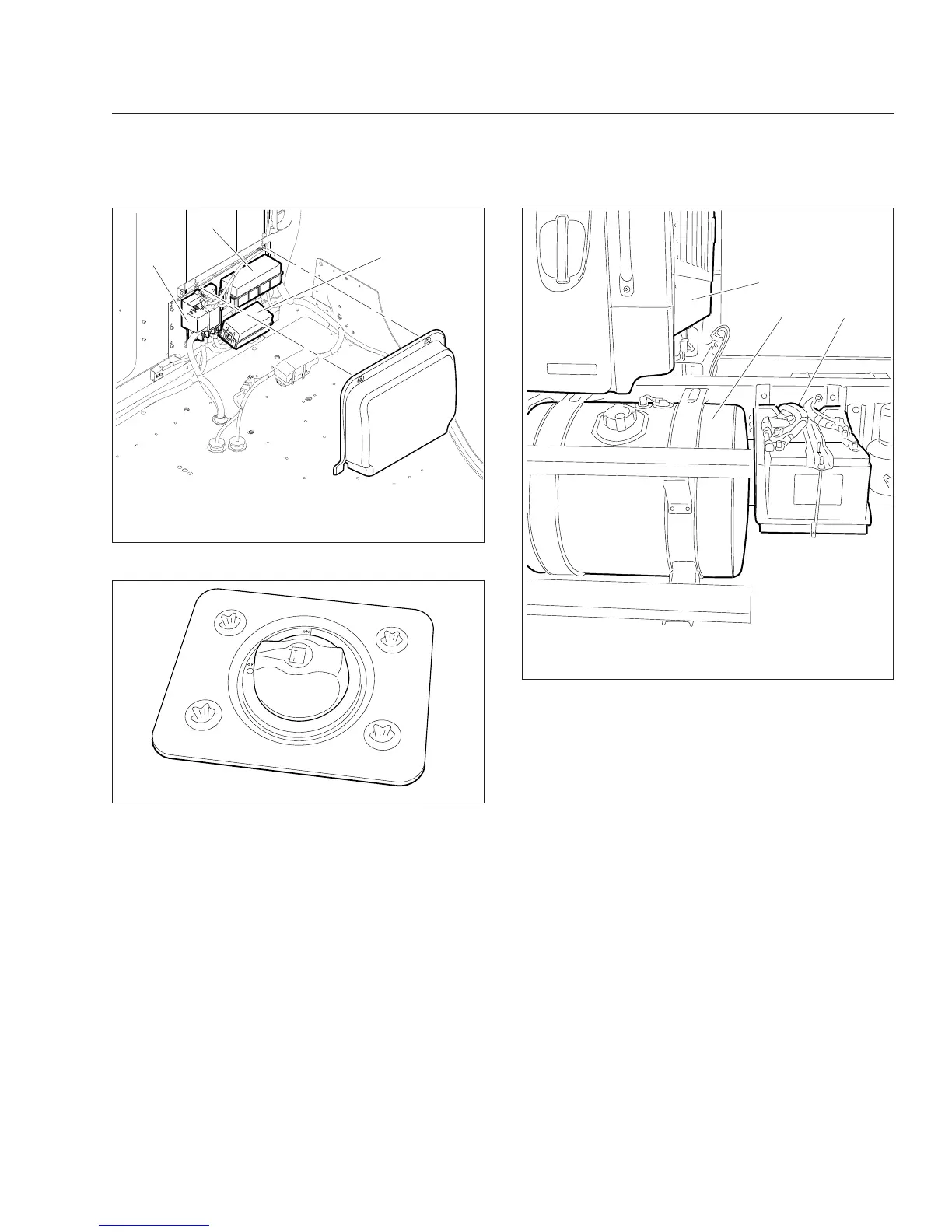

1. Auxiliary PNDB
2. Trailer PDM
3. Body Lighting PDM
Fig. 3.2, Auxiliary Power Distribution Module
05/13/2009 f545527
Fig. 3.3, Load Disconnect Switch
12/03/2010 f545714
1
2
3
1. Back-of-Cab
2. Fuel Tank
3. Battery Compartment
Fig. 3.4, Standard Battery Compartment Location
