Instruments
Standard instruments are present on every vehicle.
They are listed here in alphabetical order to make
the information easier to find.
Optional instruments, typically located on the auxil-
iary dash panel or right-hand control panel, are not
found on every vehicle. They are listed here in alpha-
betical order, to make the information easier to find.
Air Intake Restriction Gauge
The air intake restriction gauge indicates the vacuum
on the engine side of the air cleaner. On standard
installations, it is mounted on the air intake duct in
the engine compartment. As an option for easier
viewing, the air intake restriction indicator (see
Fig. 4.5) can be mounted on the dash, usually on the
right-hand control panel.
03/26/2004 f040636a
Push
Push
123456.7
TRIP MI
12.3 VOLTS
Push
123456.7
MI
12.3 VOLTS
Push
123456.7
TRIP HOURS
12.3 VOLTS
SELECt
MI
dIAG
MI HOURS
n
Push
Push
123456.7
MI
EC
Push
CLEAr
Push
123456.7
HOURS
EC
EnG oIL
*Lo
SEtUP
**MI **HOURS
**no
Default Odometer
Dispay Screen
To Reset Trip Miles
Hold
To Reset Trip Hours
Hold
To Toggle between Units
Hold
Dispay Diagnostics
Hold
Dispay Oil Level
Hold
Dispay Service Interval
Cycle Screens
Hold
To Dispay Total Engine Hours
EC = Engine Control
To Dispay Total Engine Miles
EC = Engine Control
Clear Defaults
Hold
Push Push
n = Number of Active Fault Codes
MI = CYCLE Miles Enabled
HOURS = Cycle Hours Enabled
*Lo = Oil Level Low
HI = Oil Level High
Blank = Oil Level OK
− − = No Message
MI<−−−−>KM
**MI = CYCLE Miles Active Mode
**HOURS = CYCLE Hours Active Mode
**no = Service CYCLE Inactive
NOTE: The engine oil level screen displays for Mercedes-Benz engines only (if equipped and enabled).

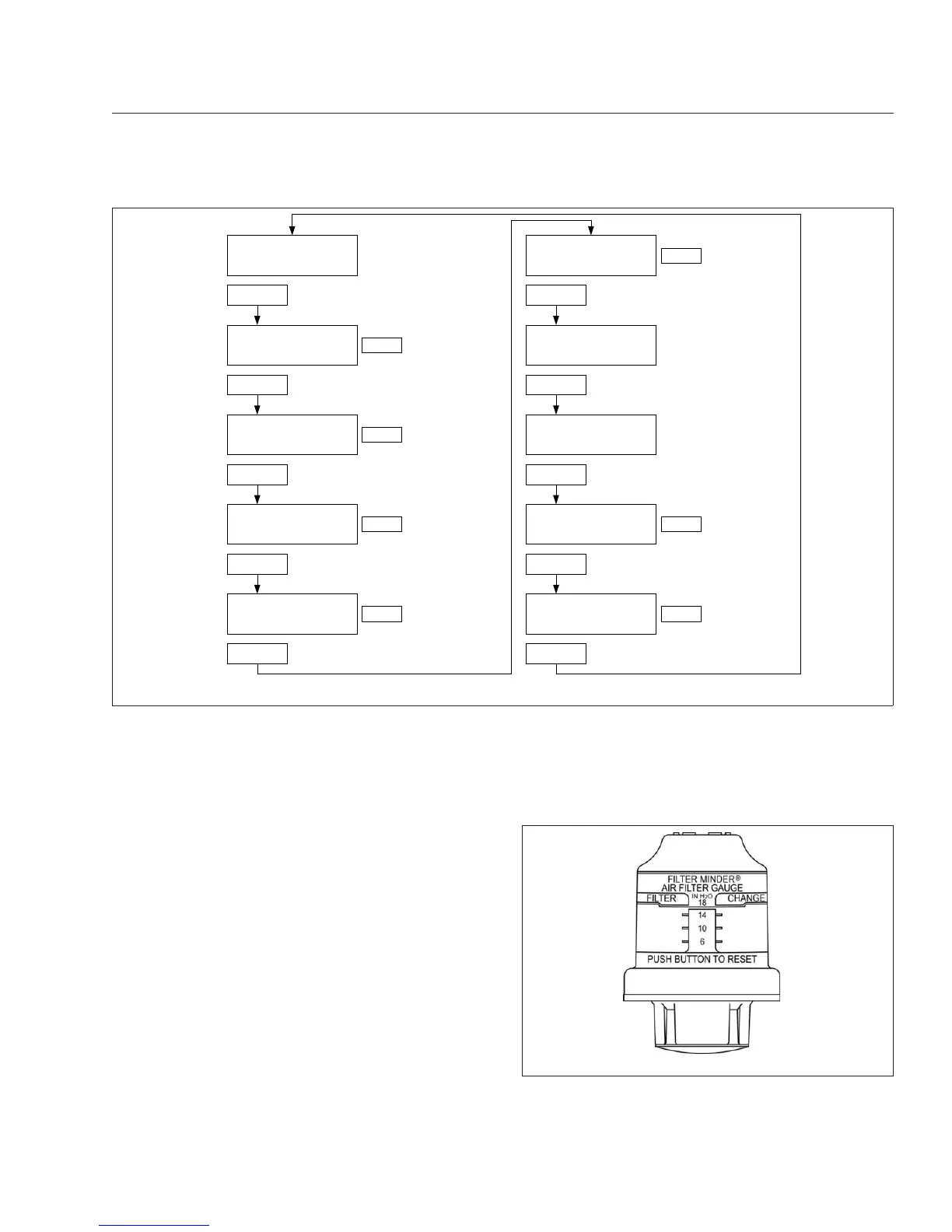

Fig. 4.4, ICU3 Stationary Screens
02/12/2015 f090514
Fig. 4.5, Air Intake Restriction Indicator
