• Front Suspension Spring Brackets
• Fuel Tank Brackets
• Radius Rods
• Rear Engine Supports
• Rear Suspension Spring Brackets
• Shock Absorbers
• All Other Frame Fasteners
Any component that shows signs of cracking, or
other damage, must be repaired or replaced. See the
Century Class Trucks Workshop Manual
for repair or
replacement information.
1
2
3
2
f220054
4
5
5
8
6
7
9
10
11
12
10
13
03/30/95
1. Capscrew, 3/4– x 4.5 Inch, Grade 8
2. Washer, 3/4 Inch
3. Engine Leg
4. Capscrew, 1/2–13 x 1.5 Inch, Grade 8
5. Washer, 1/2 Inch
6. Upper Isolator
7. Rear Engine Mount
8. Nut, 5/16–18
9. Capscrew, 5/8–11 x 2.5 Inch, Grade 8
10. Washer, 5/8 Inch
11. Lower Isolator
12. Nut, 3/4–10
13. Nut, 5/8–11

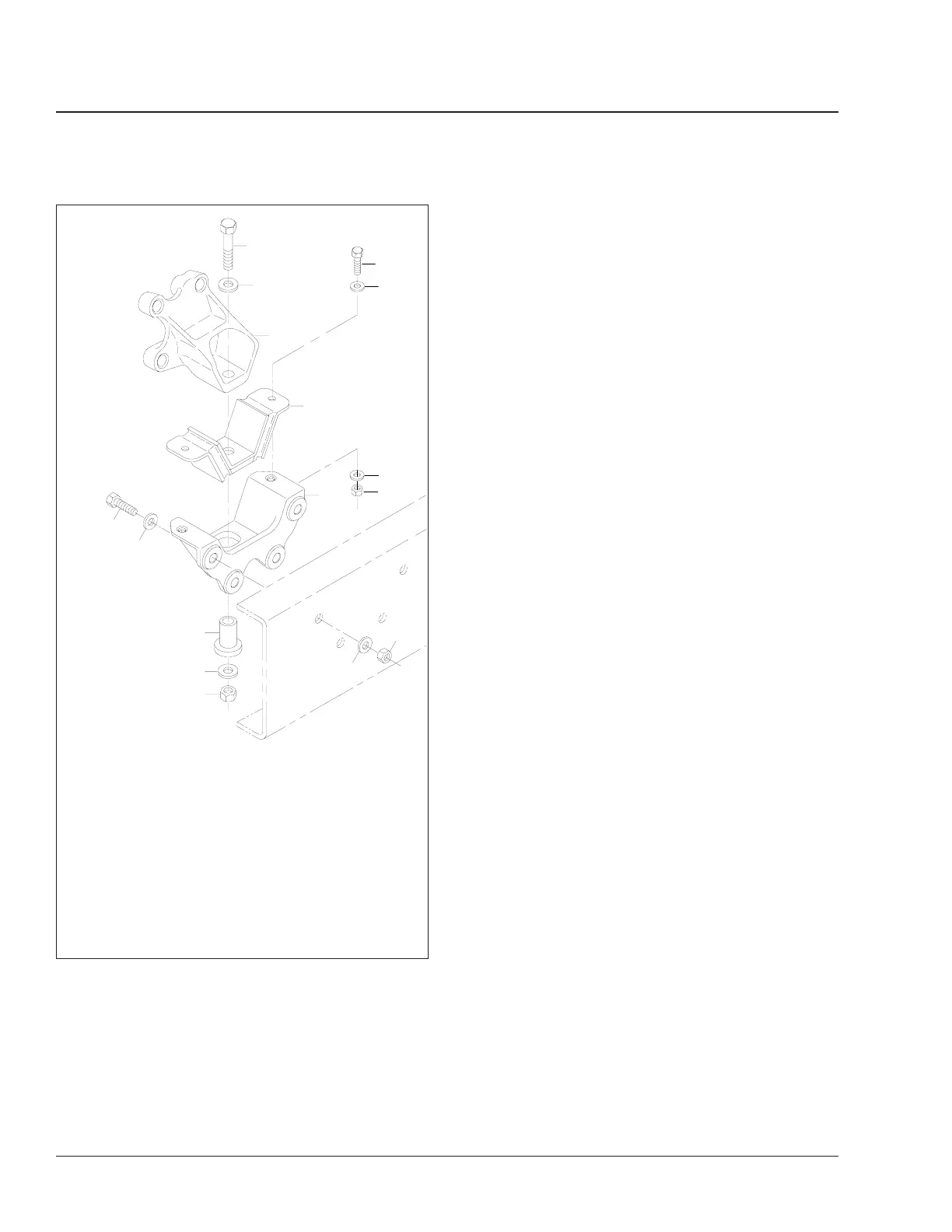

Fig. 6, Rear Engine Mount Assembly (pre-EPA07
engines)
Frame and Frame Components31
Century Class Trucks Maintenance Manual, January 200731/6
