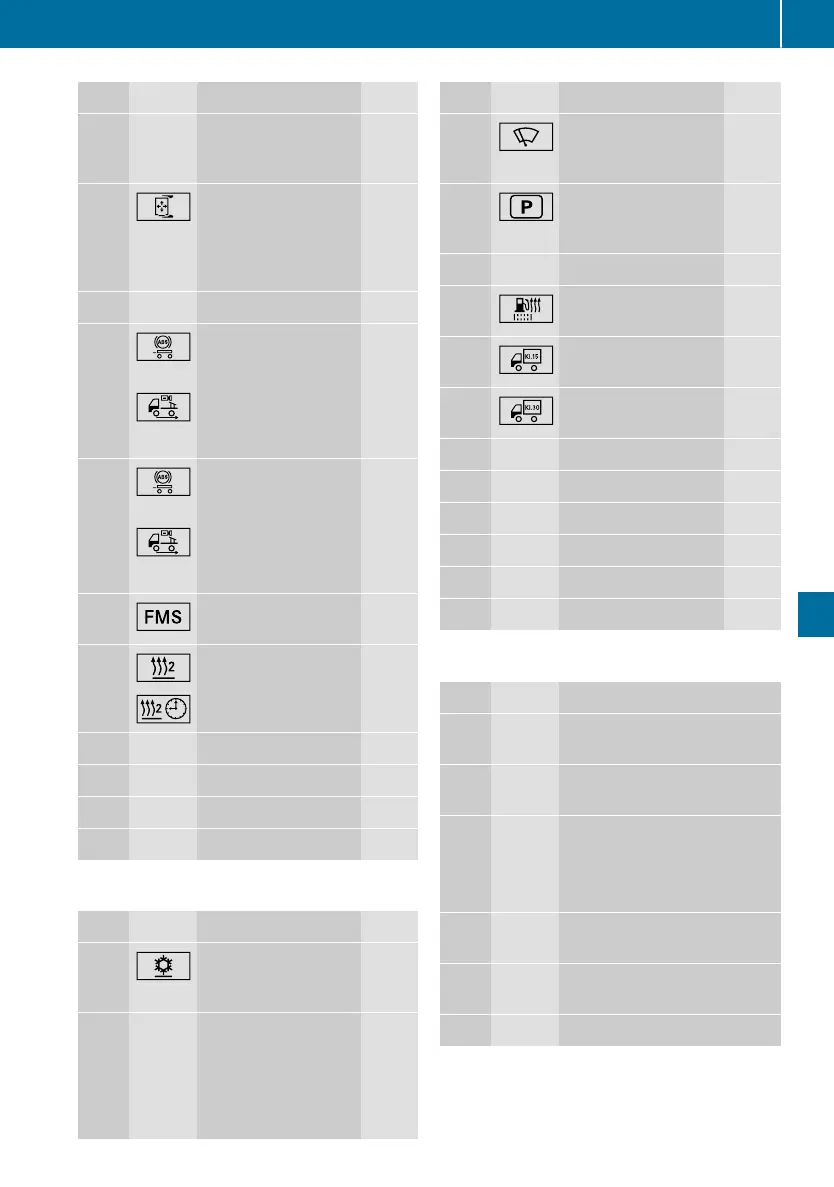

freightliner EconicSD - Page 185

Consumer
F4 Bodyinterface D+
power supply
terminal 15/12V
20 A
F5 Driver's side door
control panel, mirror
adjustment,Blind
SpotAssist camera
system
10 A
F6 Unassigned -
F7
or
7-pin trailer ABS
power socket
or
Rear area monitor-
ing (ESA-R)
terminal 30
25 A
or
10 A
F8
or
7-pin trailer ABS
power socket
or
Rear area monitor-
ing (ESA-R)
terminal 15
10 A
or
5A
F9 TruckDataCenter
terminal 30
10 A
F10 Auxiliary heating
terminal 30
25 A
F11 Unassigned -
F12 Unassigned -
F13 Unassigned -
F14 Unassigned -
FusesinFA4 modules
Consumer
F1 Auxiliary air condi-
tioningsystem
terminal 15
10 A
F2 Sideguard Assist,
rain and light sen-
sor,basic wiringfor
12 Vsocket,12V
radio, Fleetboard
terminal 30/12V
15 A
Consumer
F3 Windshield wiper
system
terminal 15R
25 A
F4 Air processingcon-
trol unit (EAPU)
terminal 30
20 A
F5 Unassigned -
F6 Fuel prefilterheat-
ing terminal 15
15 A
F7 Bodymanufacturer
terminal 15/12V
25 A
F8 Bodymanufacturer
terminal 30/12V
20 A
F9 Unassigned -
F10 Unassigned -
F11 Unassigned -
F12 Unassigned -
F13 Unassigned -
F14 Unassigned -
Relays in module A31
Consumer
K01 Bodymanufacturer inter-
faceRP170a
K02 Backing-up interface basic
wiring(ESA-R)
K03 Backing-up interface basic
wiring(ESA-R)
or
Hill holder
K04 Bodymanufacturer inter-
faceRP170a
K05 Bodymanufacturer inter-
faceRP170a
K06 Unassigned
Electrical fuses
183
Breakdown assistance
Z
