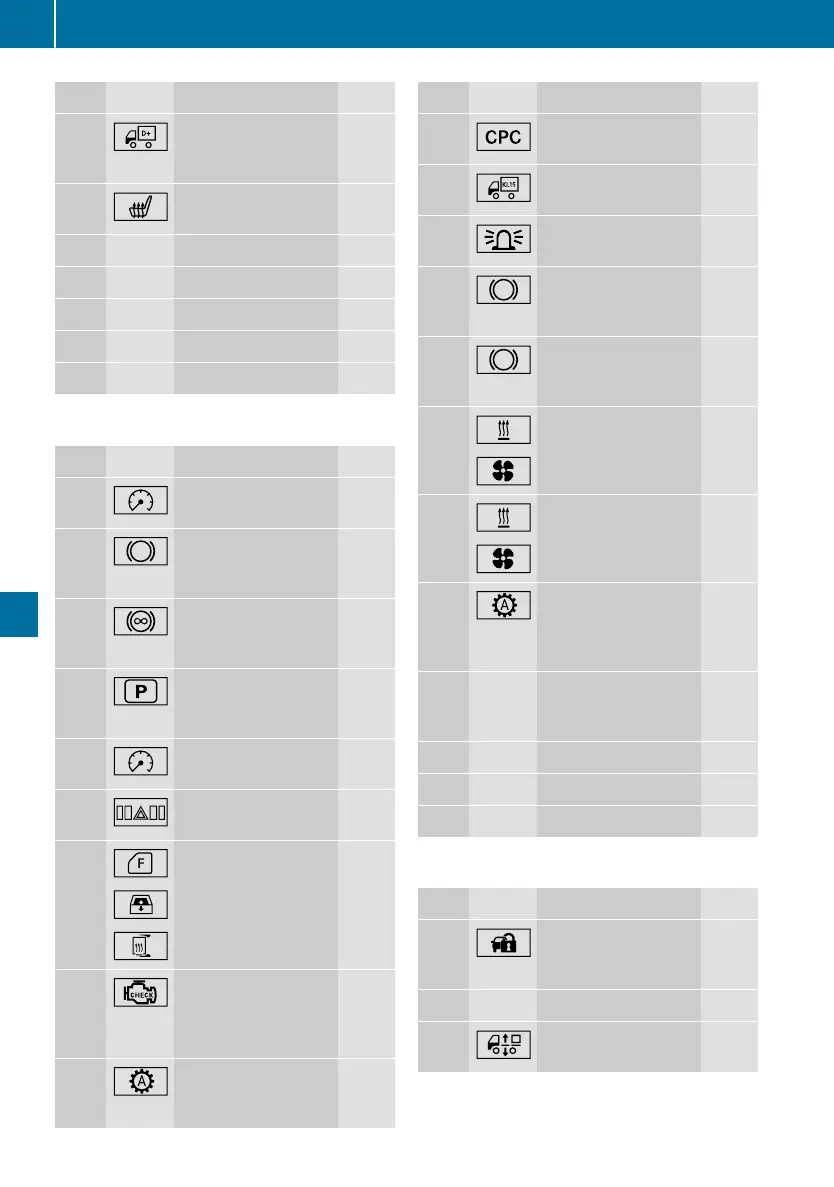

freightliner EconicSD - Page 184

Consumer
F8 Bodymanufacturer
interface D+
terminal 15/12V
20 A
F9 Seat heating
terminal 15
15 A
F10 Unassigned -
F11 Unassigned -
F12 Unassigned -
F13 Unassigned -
F14 Unassigned -
FusesinFA2 modules
Consumer
F1 Instrument cluster
(ICUC) terminal 15
15 A
EBScontrol unit
brakesystem
terminal 15
15 A
12 Vrelay in the
battery rack
terminal 15
15 A
Air processingcon-
trol unit (EAPU)
terminal 15
15 A
F2 Instrument cluster
(ICUC) terminal 30
10 A
Modular switch field
(MSF) terminal 30
10 A
F3 Driver's door oper-
atingunit (FH)
terminal 15
15 A
F4 Exhaust gas after-
treatment (ACM),
engine management
terminal 15/12V
15 A
Allison transmission
control
terminal 15/12V
15 A
Consumer
Drive control (CPC)
terminal 15/12V
15 A
Bodyinterface
terminal 15/12V
15 A
F5 Rotating beacon
terminal 30
10 A
F6 EBScontrol unit
brakesystem
terminal 30
20 A
F7 EBScontrol unit
brakesystem
terminal 30
20 A
F8 Heating terminal 30 25 A
F9 Heating terminal 15 10 A
F10 Automatic transmis-
sion control unit
and control panel
terminal 30/12V
15 A
F11 Central locking sys-
tem fuse
terminal 30
15 A
F12 Unassigned -
F13 Unassigned -
F14 Unassigned -
FusesinFA3 modules
Consumer
F1 Terminal 50/with
immobilizer
terminal 30
10 A
F2 Unassigned -
F3 Level control (CLCS)
terminal 30
15 A
