25–04 Hydraulic Fluid
Replacing
Replace the clutch hydraulic fluid every two years to
ensure clutch function is reliable and correct. Use the
procedures below. Fluid replacement must be done
at an authorized Freightliner service facility.
Draining and Filling
1. Shut down the engine.
2. Apply the parking brakes, chock the front and
rear tires, and open the hood.
WARNING
Clutch hydraulic fluid (DOT 3 brake fluid) is haz-
ardous. It may be a skin irritant and can cause
blindness if it gets in your eyes. Always wear
safety glasses when handling clutch hydraulic
fluid or bleeding hydraulic lines. If you get clutch
hydraulic fluid on your skin, wash it off as soon
as possible.
3. Using a flat-head screwdriver, remove the quick-
disconnect clamp that attaches the hydraulic
hose to the slave cylinder. Retain the clamp for
later installation. See Fig. 3.
06/17/2002
f250591
3
4
9
5
6
10
8
2
1
7
1. Reservoir
2. Reservoir Cap
3. Reservoir Bracket
4. Clutch Support Plate
5. Master Cylinder
6. Hydraulic Hose
7. Slave Cylinder
8. Elbow Connector
9. Actuator Hose
10. Jam Nut

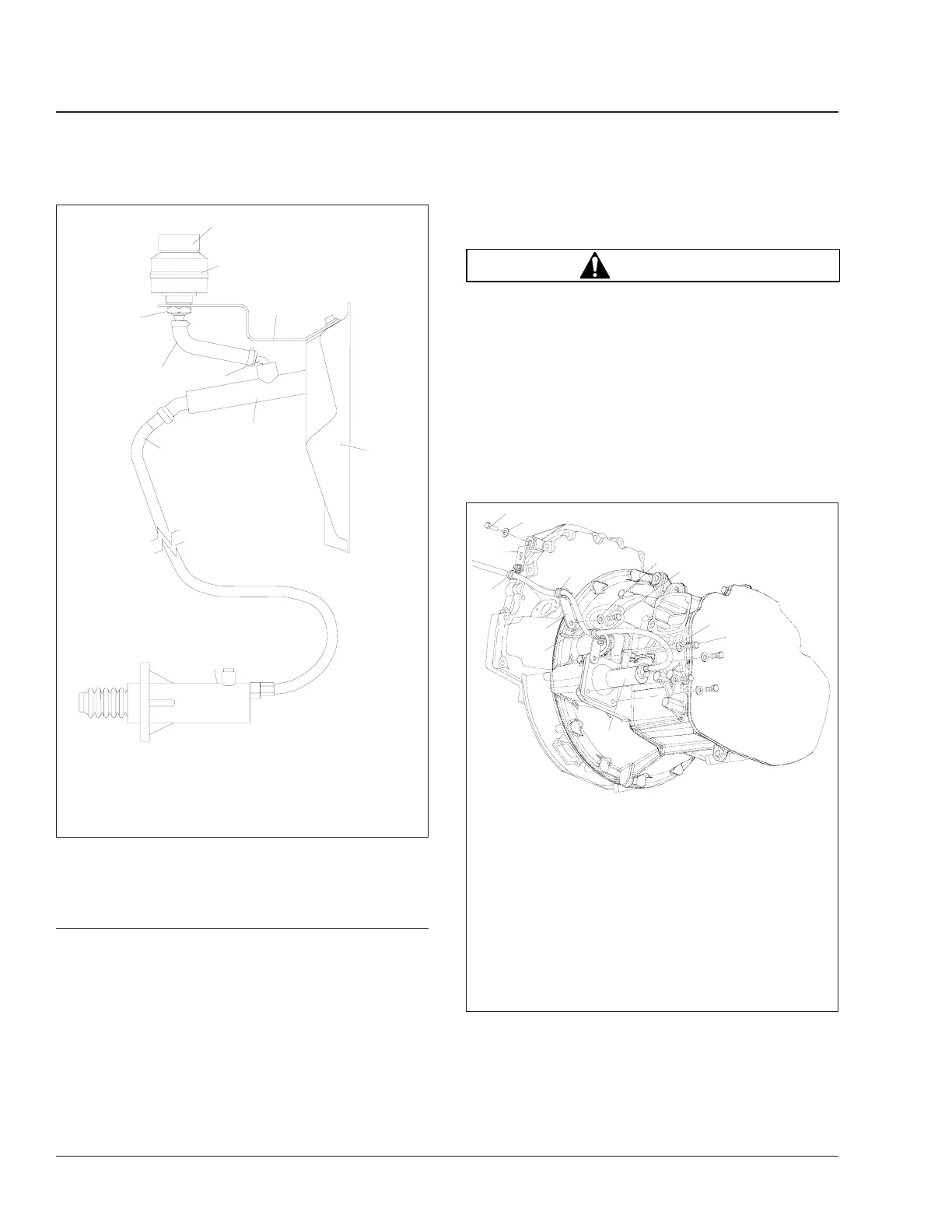

Fig. 2, Clutch Components
06/20/2002
f250592
1
2
3
4
5
4
6
7
8
9
10
11
1. Timing Case Mounting Capscrew, M10
2. Hardened Flatwasher
3. Timing Case Standoff Bracket
4. Cushioned Clamp
5. Bell Housing Standoff Bracket
6. Hydraulic Hose
7. Washer, M10
8. Bell Housing-to-Timing Case Mounting Capscrew,
M10
9. Flatwasher
10. Slave Cylinder Capscrew, M8
11. Slave Cylinder
Fig. 3, Clutch Slave Cylinder
Clutch25
Business Class Trucks Maintenance Manual, June 200225/2
