WARNING
Drain the air supply; if the air supply is not
drained before the air filter/regulator is serviced,
serious injury and component damage could re-
sult.
2. Clean the outside of the air filter/regulator with
cleaning solvent. See
Fig. 5.
3. Remove the end cap, large O-ring, and filter ele-
ment from the filter housing. See
Fig. 6. Remove
the small O-ring from the end cap.
NOTE: Do not remove, disassemble, or adjust
the air regulator. If the air regulator is not keep-
ing air pressure between 58 and 63 psi (400
and 435 kPa), replace the air filter/regulator. It
cannot be repaired.
1. Drain Plug
2. Fill Plug
3. Sight Glass

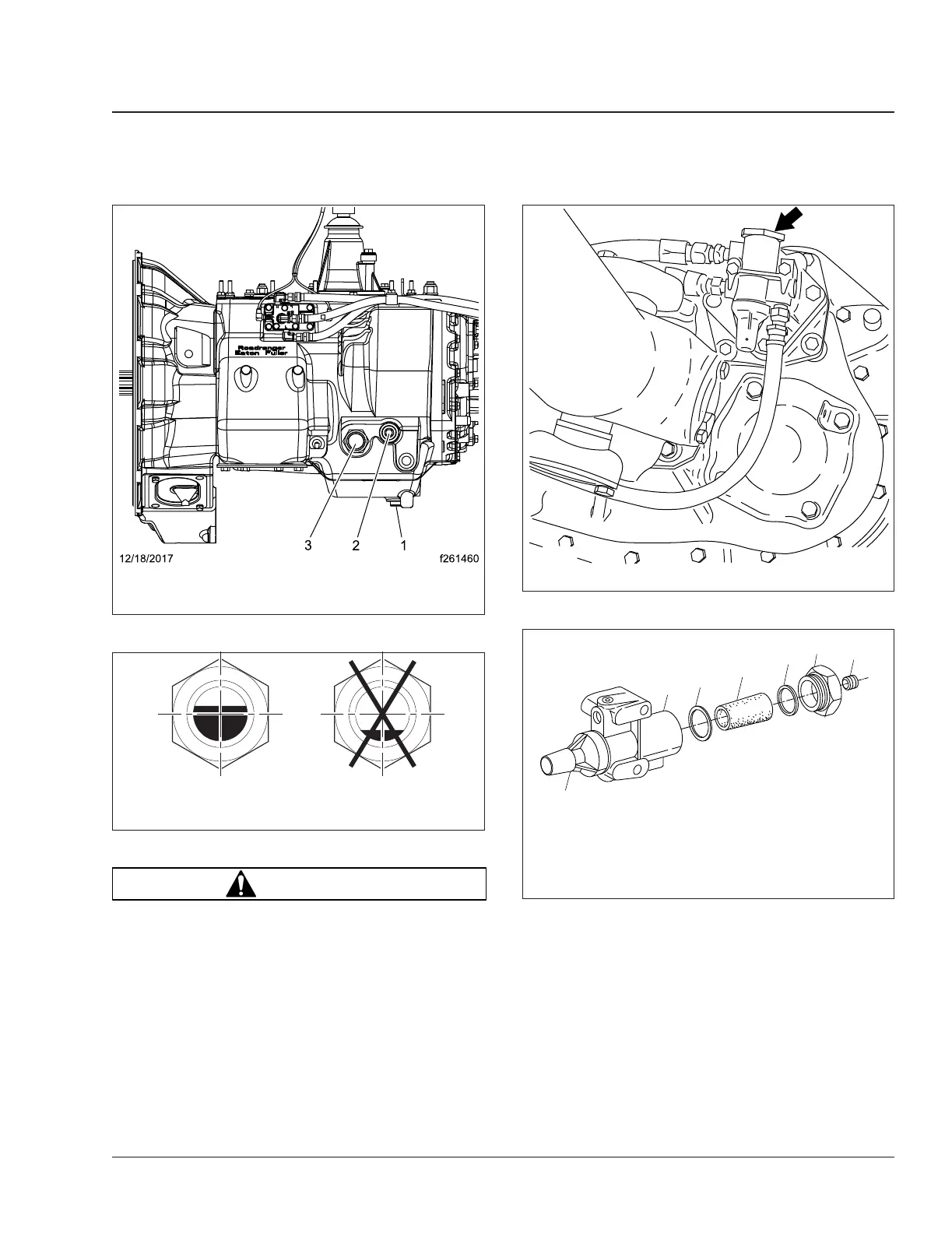

Fig. 3, Eaton Fuller Transmission With a Sight Glass
02/23/2015 f261461
A B
A. Full B. Low
Fig. 4, Transmission Fluid Level Sight Glass
f260037a10/05/2016
Fig. 5, Air Filter/Regulator Location
1
2
3
4
5
6
7
f260052a
10/17/2001
1. Air Regulator
2. Housing
3. Large O-Ring
4. Filter Element
5. Small O-Ring
6. End Cap
7. Plug
Fig. 6, Eaton Fuller Transmission Air Filter/Regulator
Components
Transmission 26
New Cascadia Maintenance Manual, October 2020 26/5
