Suspensions with Single-Leaf Springs: Mea-
sure between the top of the U-bolt pad and the
bottom of the axle stop.
4. If the measurement is not within the acceptable
range, refer to the New Cascadia
™
Workshop
Manual for adjustment instructions. If the dis-
tance is within the acceptable range, apply the
parking brakes.
f320838b02/21/2017
A
Measure Point

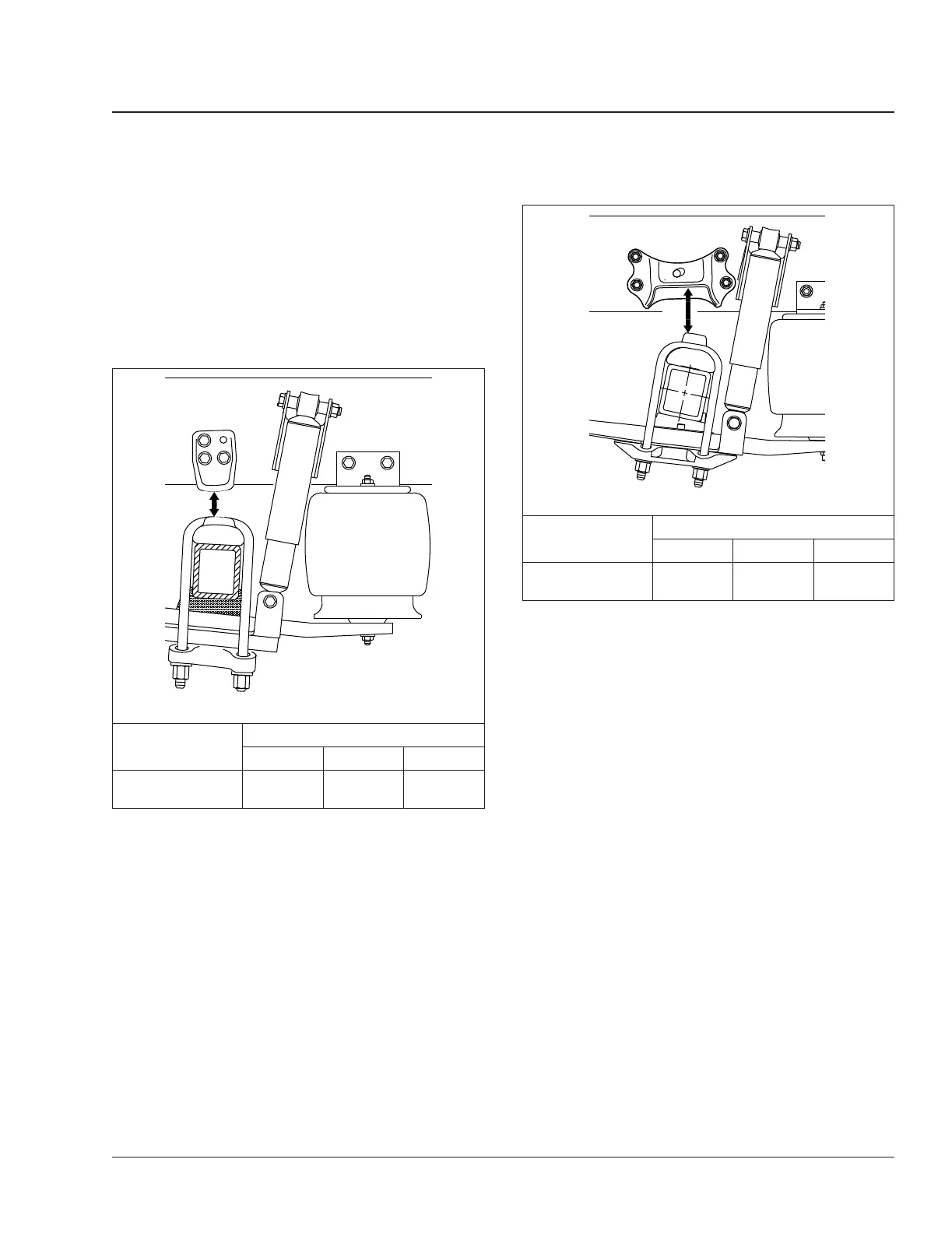

Suspension Height Measurement
Min Target Max
A = Measure Here
2-3/8 inch
(60 mm)
2-5/8 inch
(67 mm)
2-7/8 inch
(73 mm)
Table 1, Suspension Ride-Height Measurement, Dual-
Leaf Spring, 21k/40k High Ride
f320961a02/21/2017
A
Measure Point
Suspension Height Measurement
Min Target Max
A = Measure Here
2-3/8 inch
(60 mm)
2-5/8 inch
(67 mm)
2-7/8 inch
(73 mm)
Table 2, Suspension Ride-Height Measurement,
Single-Leaf Spring, 21k/40k, High Ride
