f320961a02/21/2017
A

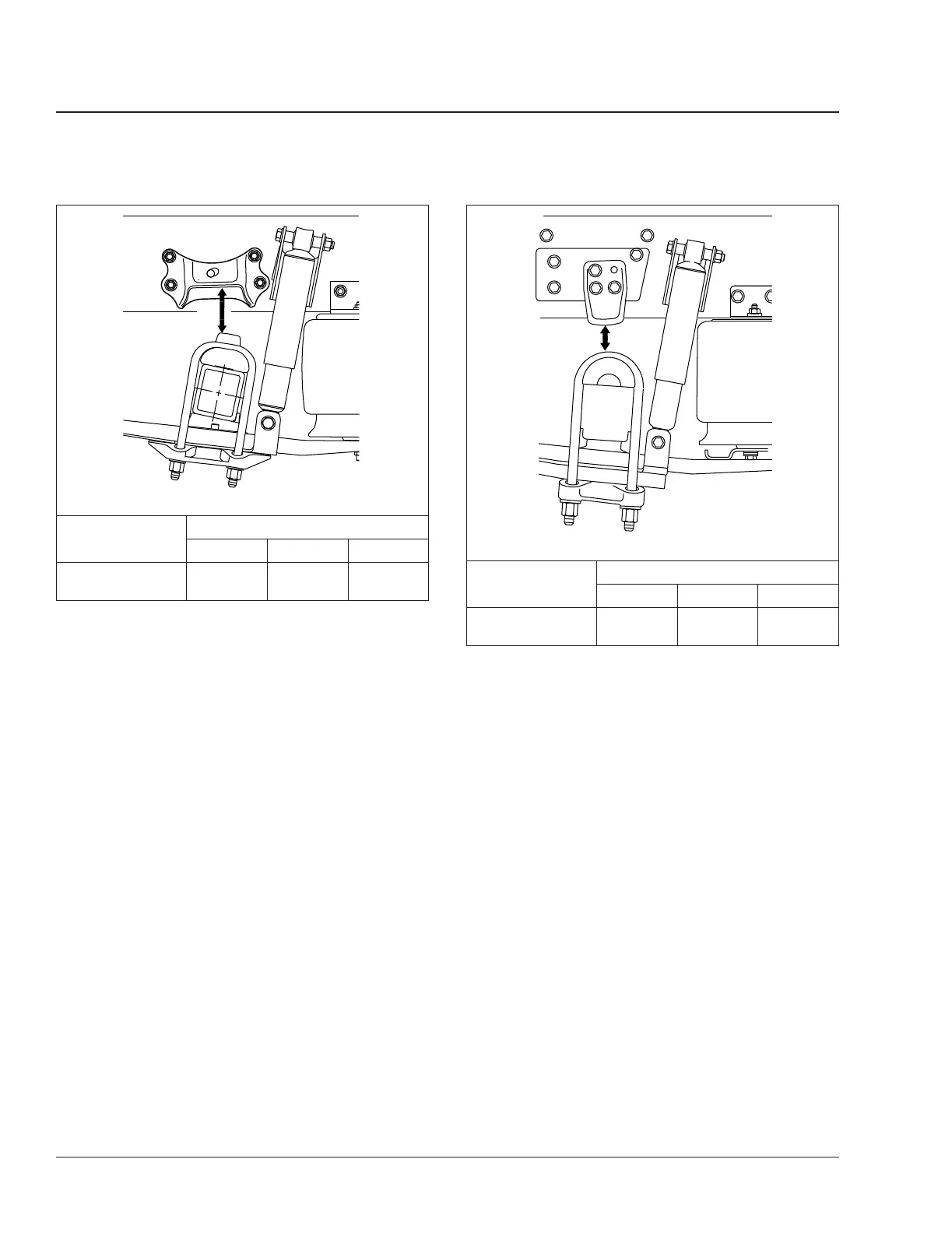

Measure Point
Suspension Height Measurement
Min Target Max
A = Measure Here
2-3/8 inch
(60 mm)
2-1/2 inch
(64 mm)
2-7/8 inch
(73 mm)
Table 3, Suspension Ride-Height Measurement,
Single-Leaf Spring, 40k Low and Mid Ride
f321046a02/21/2017
A
Measure Point
Suspension Height Measurement
Min Target Max
A = Measure Here
2-3/4 inch
(70 mm)
3 inch
(76 mm)
3-1/4 inch
(83 mm)
Table 4, Suspension Ride-Height Measurement, Dual-
Leaf Spring, 23k High Ride
Suspension32
New Cascadia Maintenance Manual, 03/01/202032/4
