Frick QUANTUM LX Control Panel - Page 19

QUANTUM
™
LX EVAPORATOR CONTROL PANEL
MAINTENANCE
090.610-M (MAY 2016)
Page 19
Q5 INTERCONNECTIONS

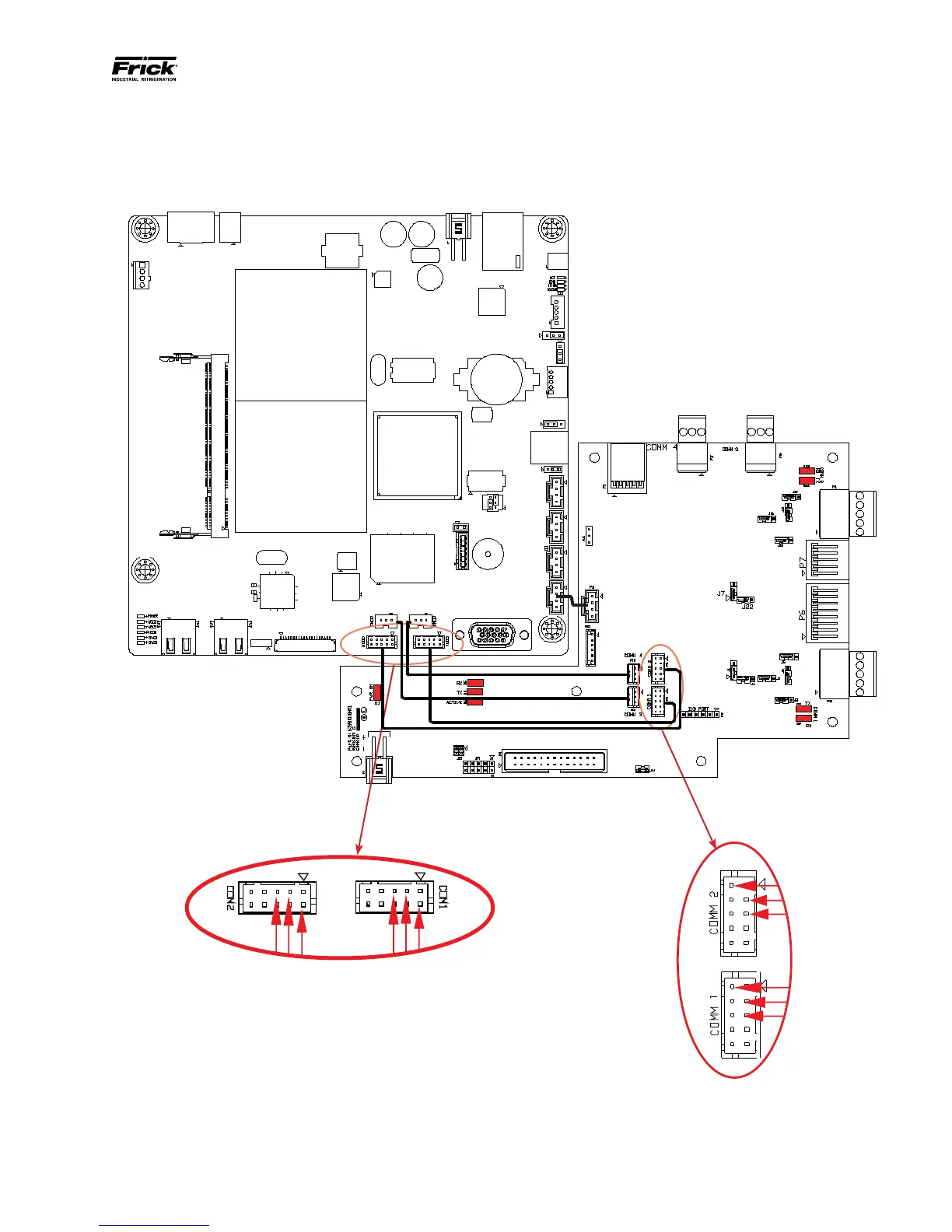

The pictorial below depicts the Q5 motherboard, and the necessary interconnects between it and the Interface
If the harness for either
COMM1 or COMM2 is
ever removed for either
repair, replacement or
troubleshooting, ensure
that the pinout matches
as shown here when
plugging the ends back
in. All other Interconnec
-
tion harness ends share
the same pinout at both
ends.
