Frick RWF II 856 - Compressor Port Locations

070.610-IOM (JUL 21)
Page 53
RWF II Rotary Screw Compressor Units
Maintenance

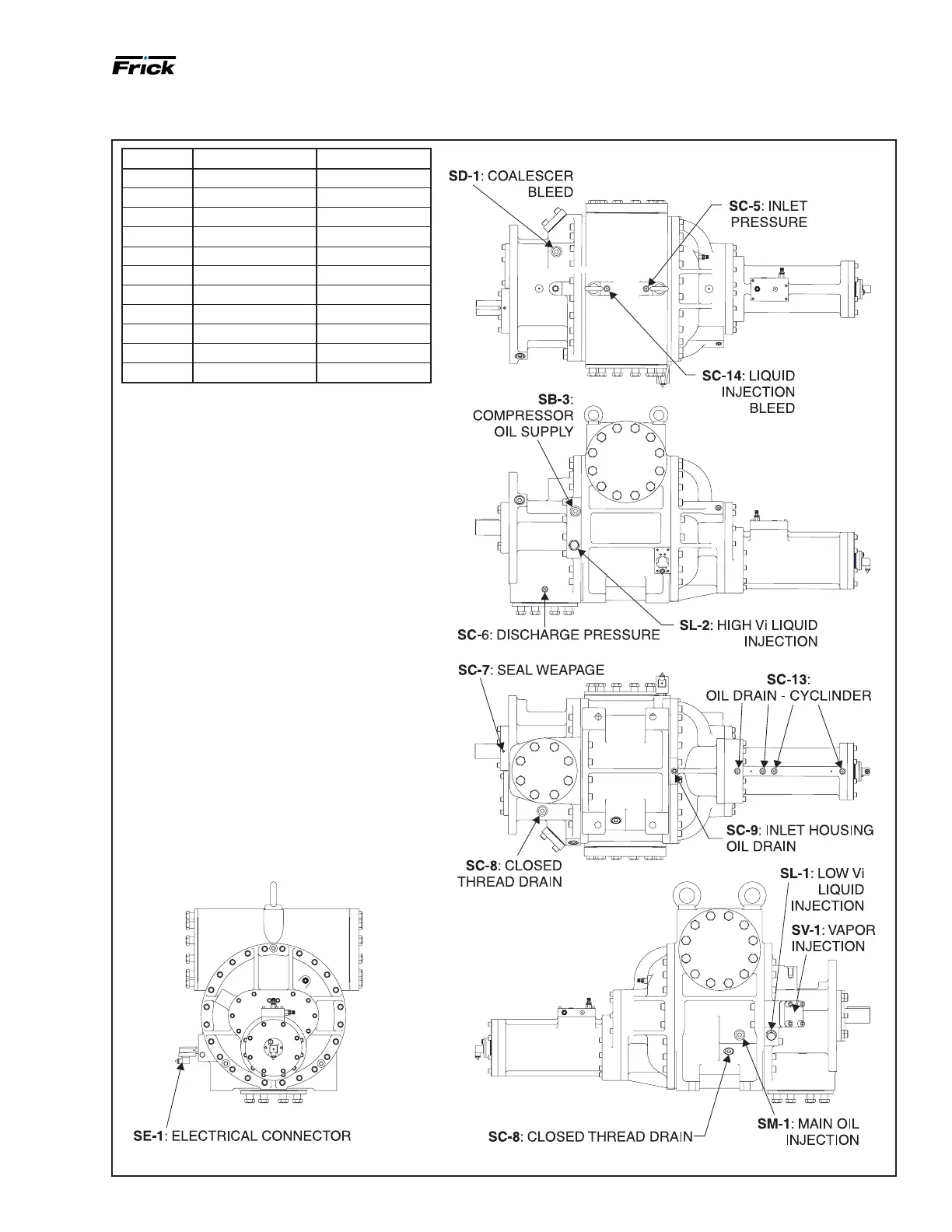

Figure 53: Compressor port locations - RWF II 100, 119 SS, 134, 159 SS
Compressor port locations
Port Thread size O-ring
SB-3 1
1
⁄16-12 UN-2B 980A0012K66
SC-5 9/16-18 UNF-2B 980A0012K60
SC-6 9/16-18 UNF-2B 980A0012K60
SC-8 1
1
⁄16-12 UN-2B 980A0012K66
SC-9 9/16-18 UNF-2B 980A0012K60
SC-13 9/16-18 UNF-2B 980A0012K60
SC-14 9/16-18 UNF-2B 980A0012K60
SD-1 1
1
⁄16-12 UN-2B 980A0012K66
SL-1 1
1
⁄16-12 UN-2B 980A0012K66
SL-2 1
1
⁄16-12 UN-2B 980A0012K66
SM-1 1
1
⁄16-12 UN-2B 980A0012K66
