16

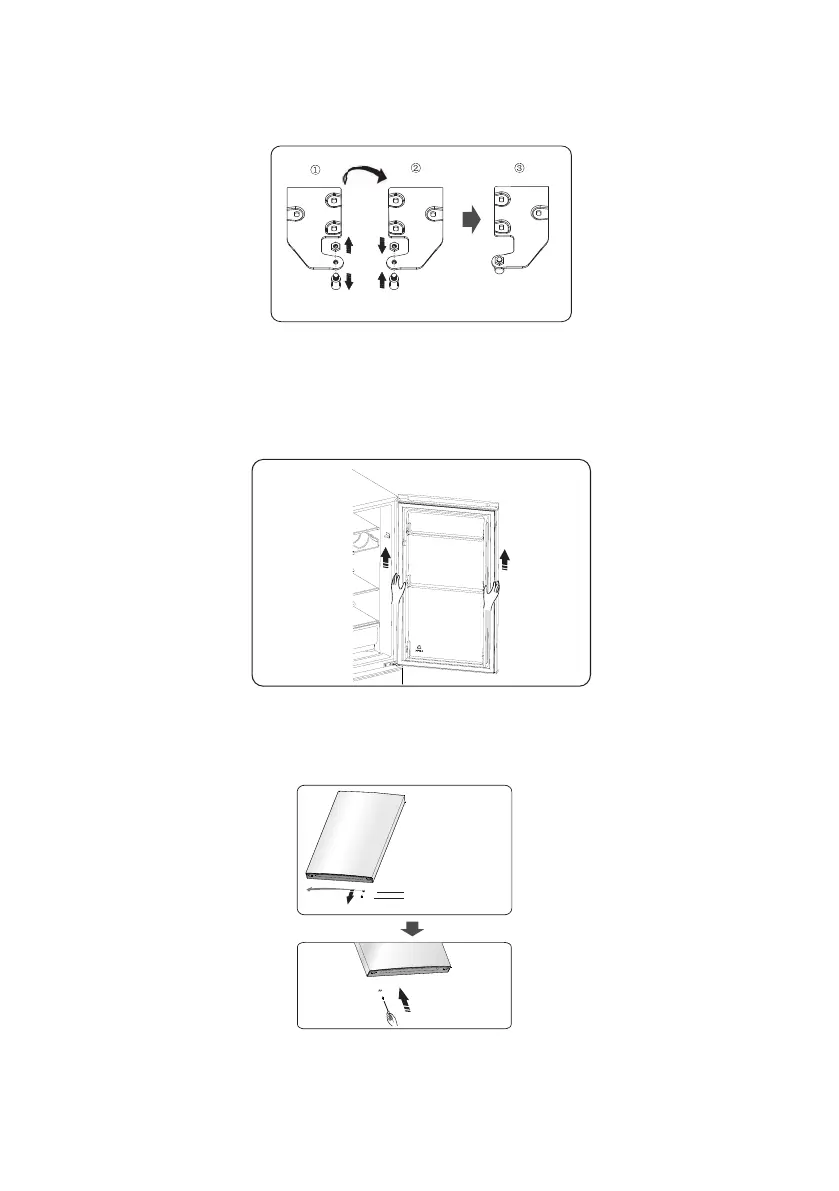

4. Remove the upper hinge axis, transfer it to reversed side and tighten securely,
then put it in a safe place.
5. Remove the upper door from the middle hinge by carefully lifting the door
straight up.
NOTE: When removing the door watch for washer(s) between the center
hinge and the bottom of the upper door that may stick to the door. Do not
lose.
6. Place the upper door on a smooth surface with its panel upwards. Loose screw
(2) and part (1), then install them to the left side and tighten securely.
① Stop block
①
②
②
Self-tapping screw
1 Stop block
2 Self tapping
screw
To Next Page
