17

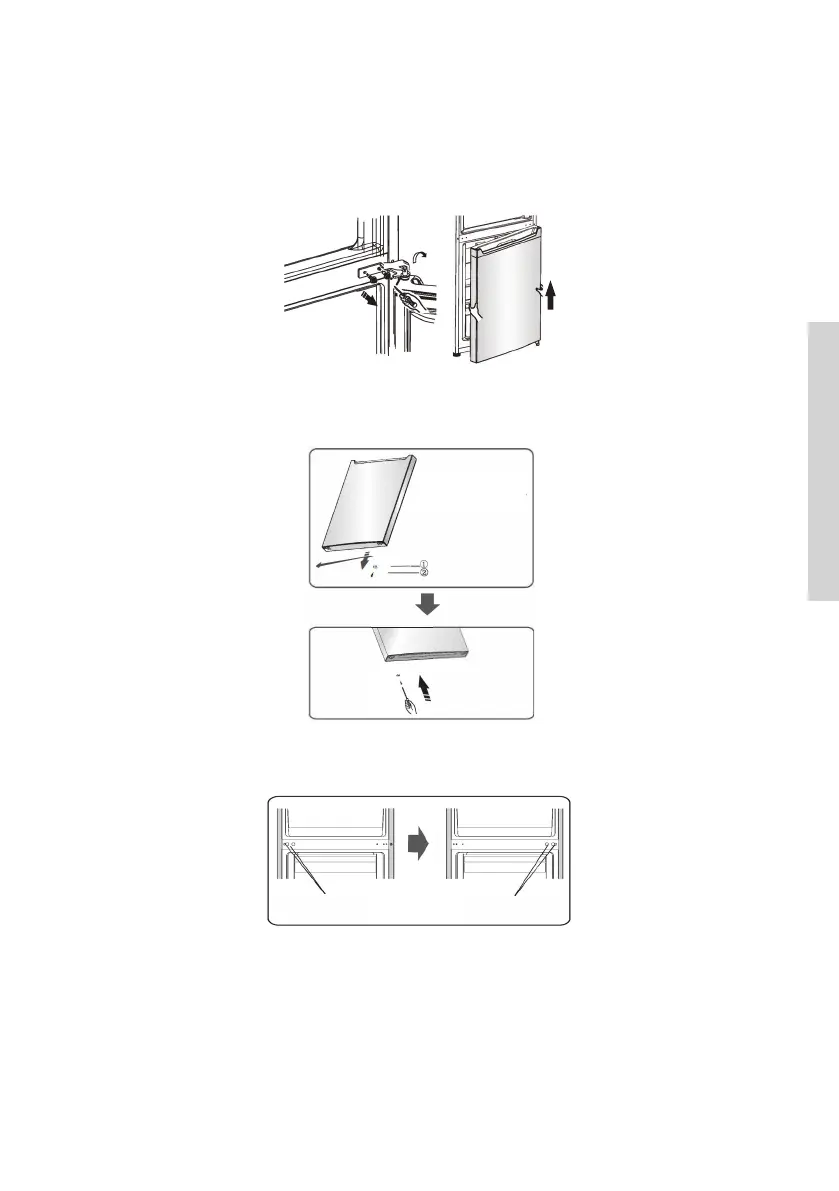

7. Unscrew the two special flange self-tapping screws which are used for fixing
the middle hinge part, then remove the middle hinge part that hold the lower
door in place.
NOTE: When removing the door, watch for washer(s) between the lower hinge
and the bottom of the lower door that may stick to the door. Do not lose.
8. Place the lower door on a smooth surface with its panel upwards. Loose screw
(2) and part (1), then install them to the left side amd tighten securely.
1 Stop block
2 Self tapping
screw
9. Change screw hole covers on middle cover plate from left to right (as shown in
figure below).
screw hole covers screw hole covers
To Next Page
