19

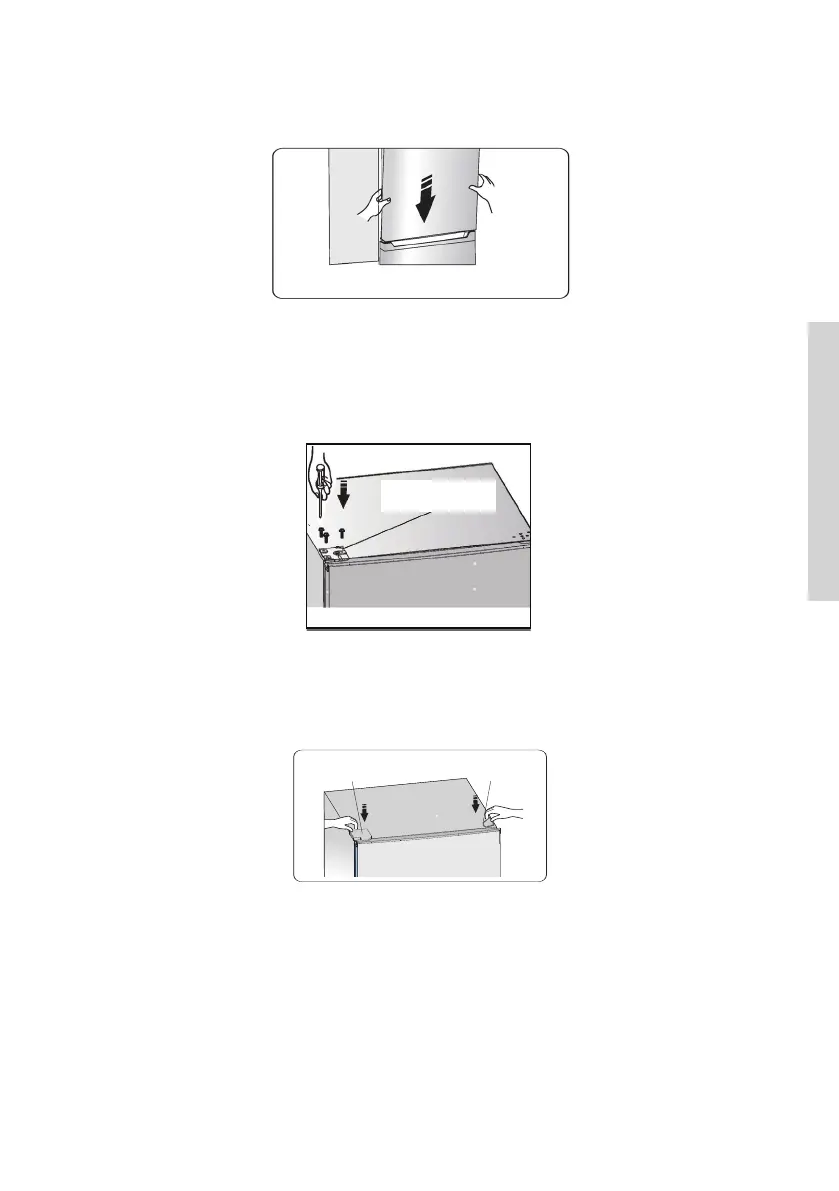

15.Transfer the upper door to the appropriate position. Secure the door`s level,
make the middle hinge axis into the lower hole of the upper door.
16.Transfer the upper hinge part and make the upper hinge axis into the upper
hole of the upper door, and adjust the position of the upper door (please
support the upper door with your hand when doing it), fixing the upper hinge
part with the special flange self-tapping screws.
upper hinge part
17.Install the screw hole cover on the top right corner of the refrigerator. Install
the upper hinge cover (which is in the plastic bag) on the left corner. Put the
other upper hinge cover into the plastic bag.
upper hinge cover
(left)
screw hole
cover
18.Open the upper door and install the door shelves, then close it.
Warning! When changing the side at which the door opens, the appliance
must not be connected to the mains. Remove plug from the mains beforehand.
