1. Open the appliance door and unhinge and remove all fittings from inside the
appliance.
2. Unscrew the 2 screws (10). (Refrigerator with cover panel)
3. Take o the cover panel (11) and set it down on a soft surface. (Refrigerator
with cover panel)
4. Remove the upper hinge cap (7). (Refrigerator without cover panel)
5. Remove the two screws blot (6) that connect the upper hinge (5) on the right
side of the cabinet top.
6. Carefully lift the door and place it on a padded surface to prevent scratching.
7. Remove the plug (9) and transfer it to the uncovered hole on the right side of
the unit. Be sure to press the button firmly into the hole. (Refrigerator without
cover panel)
8. Remove the two screws (1) that hold the lower hinge (2) on the right side of
the unit.

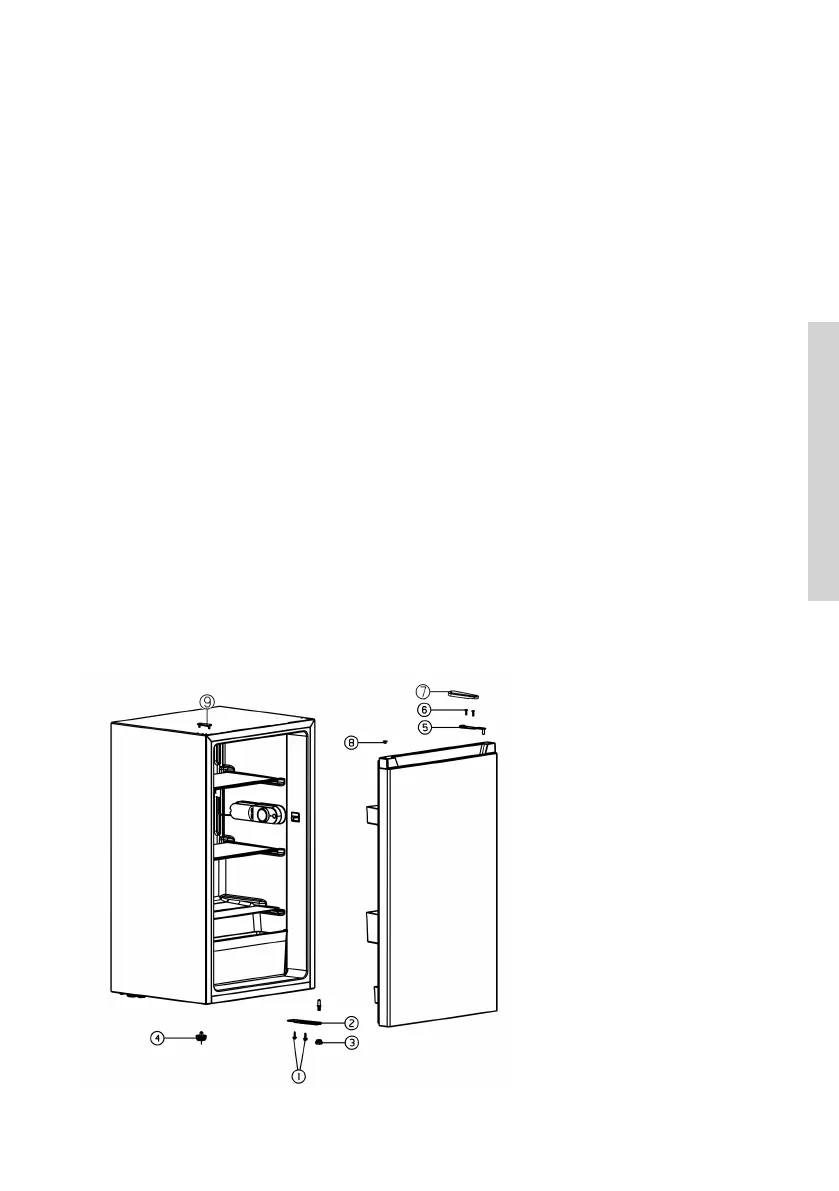

9. Remove the screw-type leveling front leg (4) and transfer it to the right side as
shown in the adjacent figure.
10.Set the door into it’s new place making sure the pin enters the bushing at the
lower frame section (hole).
11.Secure the upper hinge (5) previously removed in step 6 on the left side of the
unit. Make sure the pin enters the bushing on the upper frame section (hole).
12.Loosely secure the lower left hinge (2) and do not tighten the bolts until the
door is in the closed position and leveled.
13.lnsert the plug (9) on the uncovered holes (right side).
14.Replace the upper hinge cap (7).
15.Turn the appliance upright again.
16.Open the appliance doors and attach all fittings.
1. Screw
2. Low hinge
3. Adjustable low foot
4. Adjustable high foot
5. Upper hinge
6. Screw bolt
7. Upper hinge cap
8. Shaft sleeve
9. Plug
