15
1. Open the appliance door and unhinge and remove all fittings from inside the
appliance.
2. Remove the upper hinge cover (2).
3. Remove the two screws (3) that connect the upper hinge part (4) on the right
side of the cabinet top.
4. Carefully lift the door and place it on a padded surface to prevent scratching.
5. Remove the screw hole cover (9) and transfer it to the uncovered hole on the
right side of the unit. Be sure to press the button firmly into the hole.
6. Remove the two screws (7) that hold the lower hinge parts (6) on the right
side of the unit.
7. Remove the supporting leg (8) and transfer it to the right side as shown in the
adjacent figure.
8. Set the door into its new place making sure the pin enters the bushing at the
lower frame section (hole).
9. Secure the upper hinge part (4) previously removed in step 4 on the left side
of the unit. Make sure the pin enters the bushing on the upper frame section
(hole).
10. Loosely secure the lower hinge parts (6) and do not tighten the bolts until the
door is in the closed position and leveled.
11. Insert the screw hole cover (1) on the uncovered holes (right side).
12. Replace the upper hinge cap (2).
13. Turn the appliance upright again.
14. Open the appliance doors and attach all fittings.

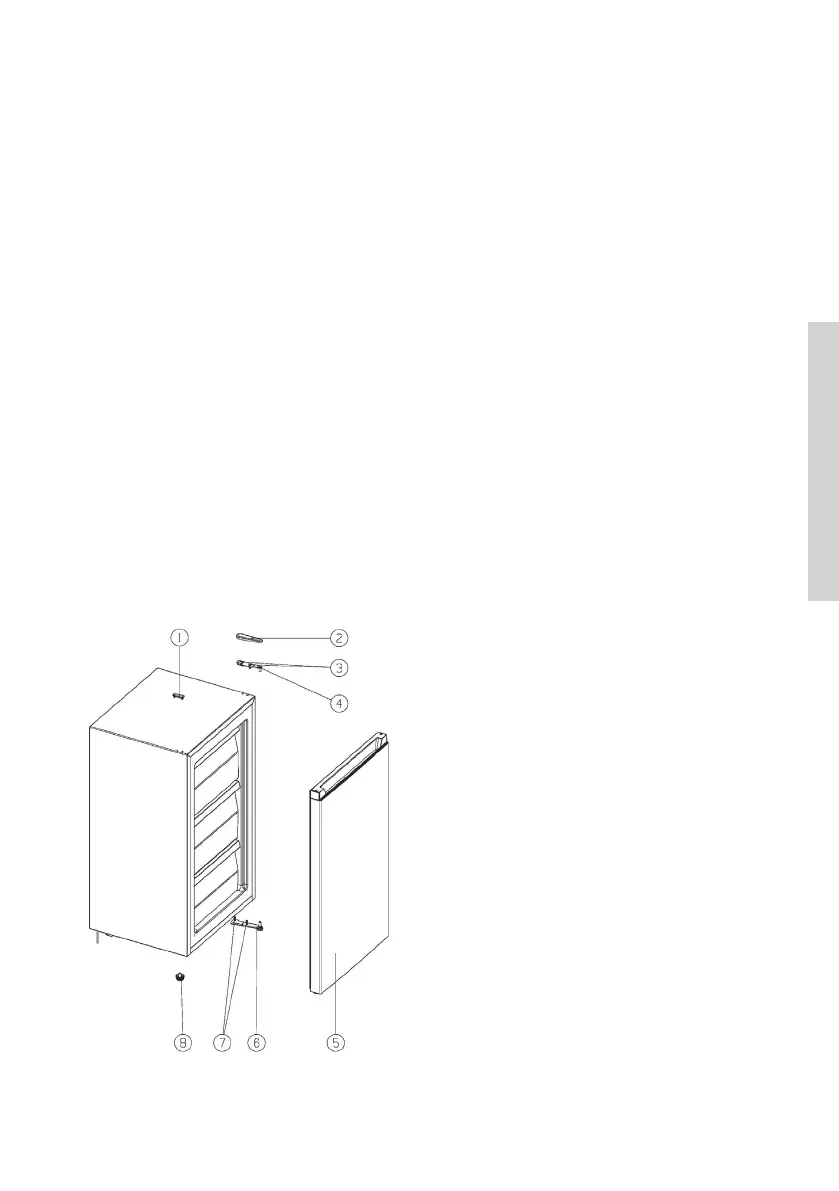

1. Screw hole cover
2. Upper hinge cover
3. Special flange self-tapping screw
4. Upper hinge part
5. Freezing door
6. Lower hinge parts
7. Special flange self-tapping screw
8. Supporting leg
EN
