7

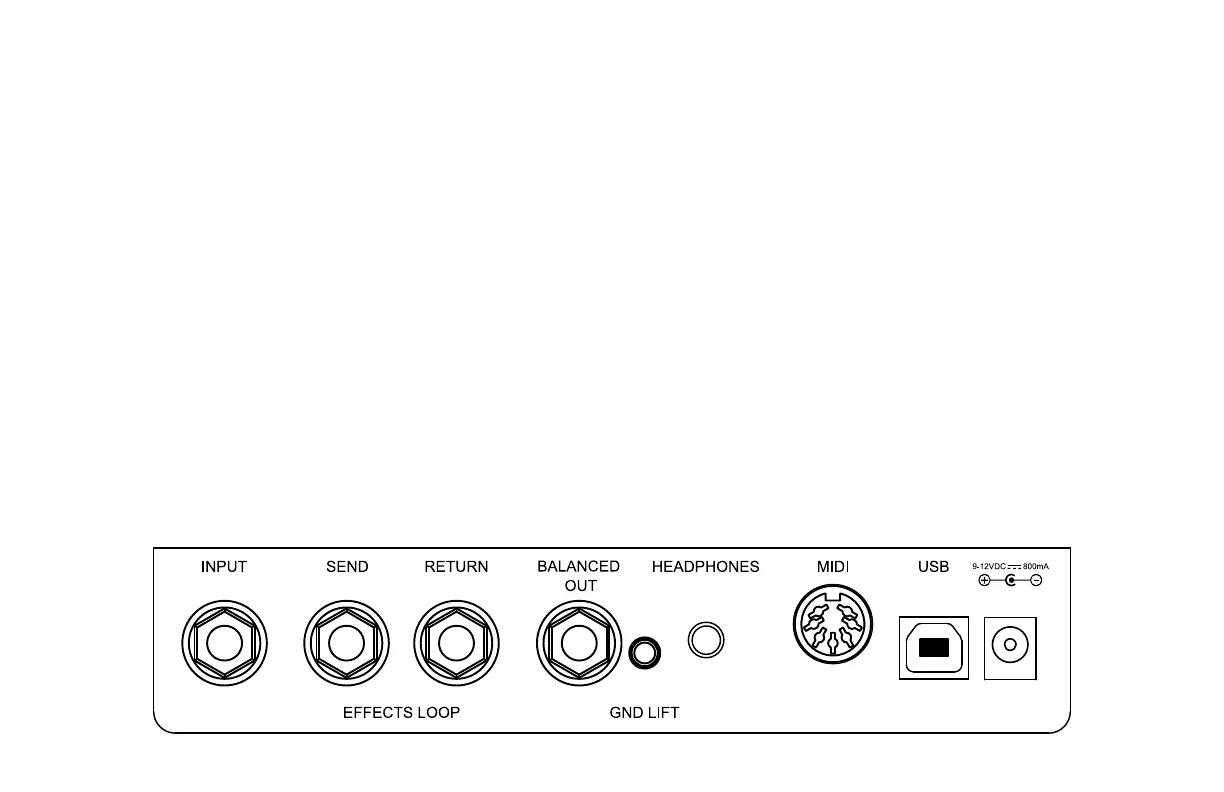

REAR PANEL CONTROLS AND CONNECTIONS
•
INPUT: Just like it says. This is the IR-X Guitar Input Jack.
Plug your guitar or the output of your pedal board here.
•
SEND JACK: IR-X DRY Preamp only output. This is where you
plug the INPUT of your Effect(s) or the output of the IR-X to be
used as an additional preamp to your Guitar amp. Use a
high-quality shielded guitar cable.
•
RETURN JACK: This is where you plug the OUT of your
Effect(s) or OUT of your external preamp (when using IR-X as
external CAB/Power Amp SIM). Use a high-quality shielded
guitar cable.
•
BALANCED OUT: IR-X IR and Poweramp SIM output. This is
a TRS Balanced output that can be used with TRS enabled input
or readily available XLR converter.
•
GND LIFT: This switch enables or disables the ground connection
on the BALANCED OUT to eliminate possible ground loops.
•
HEADPHONES: Headphones connector. Always make sure to
lower master volume before wearing the headphones and
slowly increase the volume to the desired level to avoid too
much SPL (Sound Pressure Level) on your ear.
NOTE: When using the IR-X with just guitar and headphones using
a regular non-earthed power supply like the one supplied, there
will be no connection to your house earth and your guitar will likely
pickup more noise (HUM) depending on your environment.
For a noise free experience please connect SEND or RETURN or
BALANCED OUT or USB to an earthed device (AMP, Audio Inter-
face, Monitor). Consider using an earthed power supply if this will
be your primary use case.
•
MIDI IN: Midi connector to control IR-X with an external midi
device (Default channel is OMNI).
•
USB: USB Connector for software update and IR-X remote
programming.
•
DC INPUT: DC Input power connector, use 9V to 12V adapter
with >= 800mA current available.
NOTE: IR-X uses space saving female jack adapters, so it’s normal if
the plug does not fully plug in.
