6

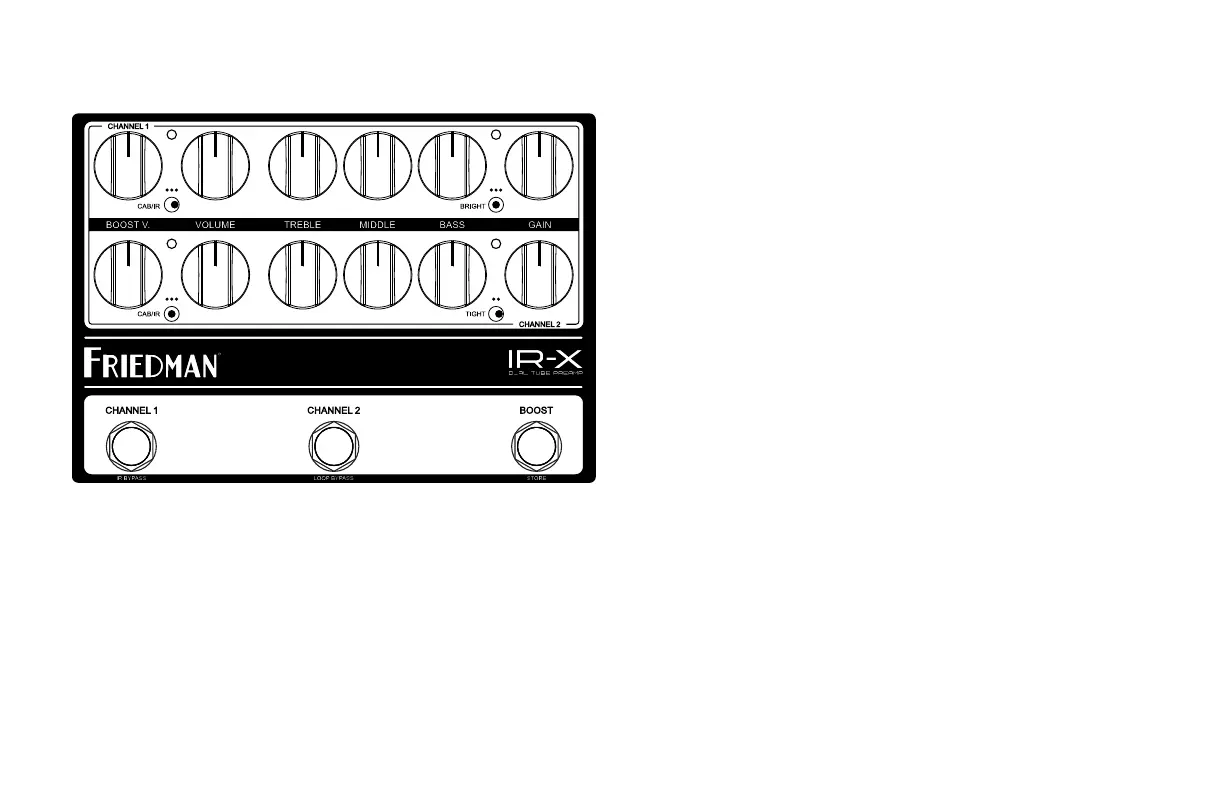

FRONT PANEL CONTROLS AND CONNECTIONS
• BOOST V.: This is the IR-X MASTER VOLUME when BOOST
is engaged. The more you turn it up the louder it gets.
• CAB-IR (PER CHANNEL): 3-Way Cabinet/IR Preset Selector.
• TREBLE CONTROL (PER CHANNEL): This adds or takes away
treble. Start at 5 and adjust to taste.
•
MIDDLE CONTROL (PER CHANNEL): Adds or takes away
midrange. Start at 5, lower settings will scoop the mids, higher
levels will allow your audience to actually hear the guitar in the mix.
• BASS CONTROL (PER CHANNEL): This adds or takes away
bass or bottom end. As the amp gets louder you may want to
back this off a bit. Start at 6 and adjust to taste.
• VOLUME (PER CHANNEL): This is the IR-X MASTER VOLUME
when boost is NOT engaged. The more you turn it up the
louder it gets.
• TIGHT SWITCH (CHANNEL 2): 2-way Tight switch, set to the
right for a fuller and fatter sound, especially great for single
coils, set to the left for percussive and tight riffing.
• BRIGHT SWITCH (CHANNEL 1): 3-way Bright switch, center
deactivate bright for a creamy sound. (Will only work if gain
is lower than 8 on the dial)
• GAIN CONTROL (PER CHANNEL): This adds gain/distortion
to the desired channel. Adjust to taste. Don’t be afraid.
• CHANNEL 1 FOOTSWITCH: Short press: Activates CHANNEL 1,
Long press: BYPASS IR output.
• CHANNEL 2 FOOTSWITCH: Short press: Activates CHANNEL 2,
Long press: BYPASS FX LOOP.
• BOOST FOOTSWITCH: Short press - Activates BOOST.
Long press - STORE current preset on active MIDI preset
number, including CHANNEL, BOOST, LOOP BYPASS,
IR/CAB and power amp simulation. PRESENCE and THUMP
are available via IR-X editor software only.
