10
27" to 39"
Offset
1
/2" to 1
1
/4"
Sill
Exterior
Interior wall
23
5
/8" min.
(Without frame curtain)
Stool
16" min
(With frame curtain)
About
1
/2"
30"~60"
Awning
Cooled air
Fence
Over 20"
Heat
radiation

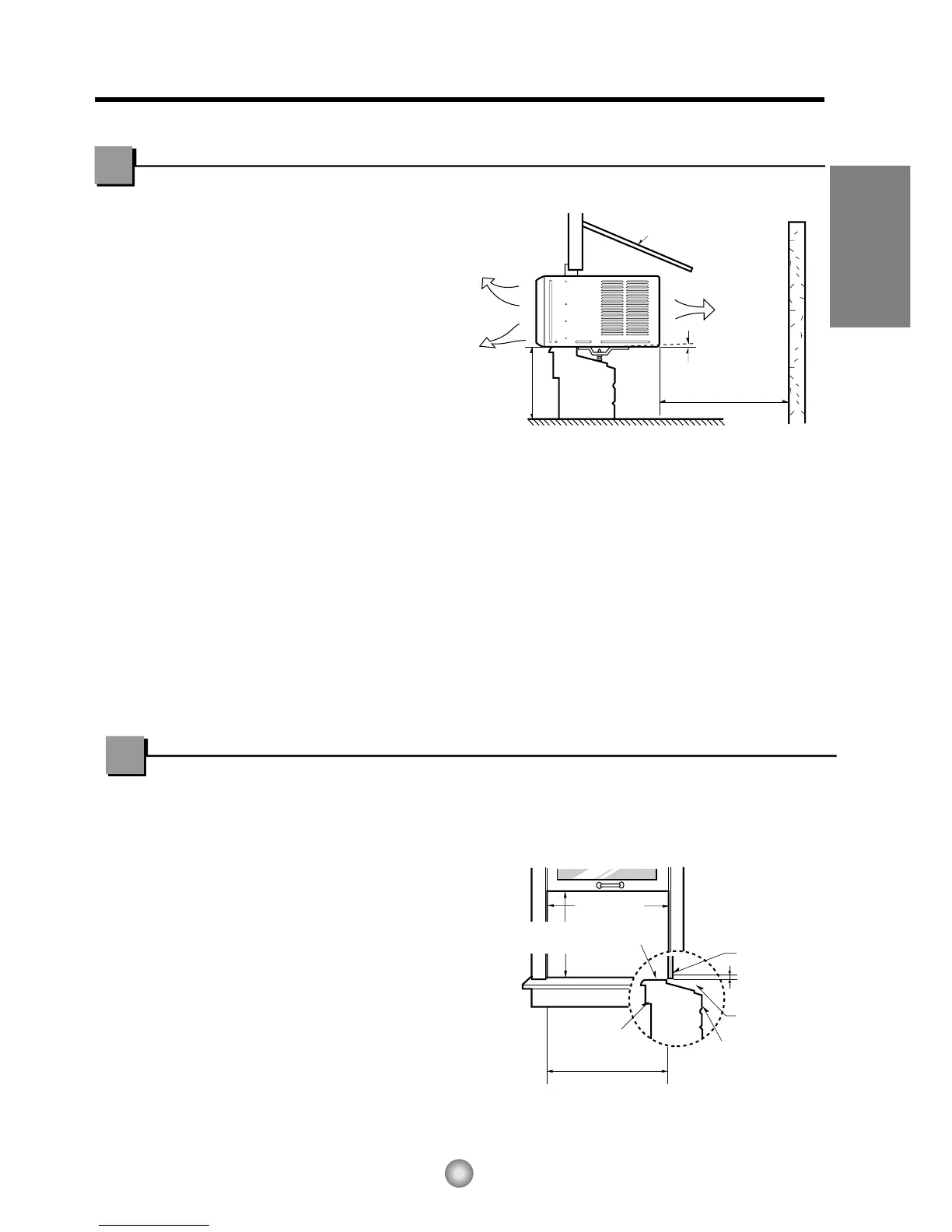

How to Install the Unit
1. To prevent vibration and excess noise,
make sure the unit is installed securely
and firmly
2. Install the unit where the sunlight does not
shine directly on the unit.
3. The outside of the cabinet must extend outward
for at least 12" and there shouldbe no obstacles,
such as a fence or wall,within 20" from the back
of the cabinet, as it will prevent heat radiation
of the condenser.
Restriction of outside air will greatly reduce
the cooling efficiency of the air conditioner.
4. Install the unit with a rear, downward slope, so the back is slightly lower than the front
(about 1/4" bubble on a level). This will force condensation to flow to the outside.
5. Install the unit with the bottom about 30" 60" above the floor level.
Window Requirements
NOTE: All supporting parts should be secured to firm wood, masonry, or metal.
• This unit is designed for installation in standard
double hung windows with actual opening widths
from 27" to 39".
• The top and bottom window sash must open
sufficiently to allow a clear vertical opening of 16"
from the bottom of the upper sash to the window
stool.
CAUTION: DO NOT cover or block any of the side louvers.
All side louvers of the cabinet must remain
exposed and unobstructed to the outside of the structure.
-
