Friedrich CP10E10 User Manual

13
ROODTUOROODNI
Sill Support
NutBolt
ROODTUOROODNI
Cabinet
About
1
/2"
Frame Guide
Screw(Type A)
Upper Guide
Window stool
Front Angle
Window Sash Upper guide
Frame Curtain
Foam-PE
Foam-PE
Cabinet
Fig. 1
Fig. 2
Fig. 3
Fig. 4

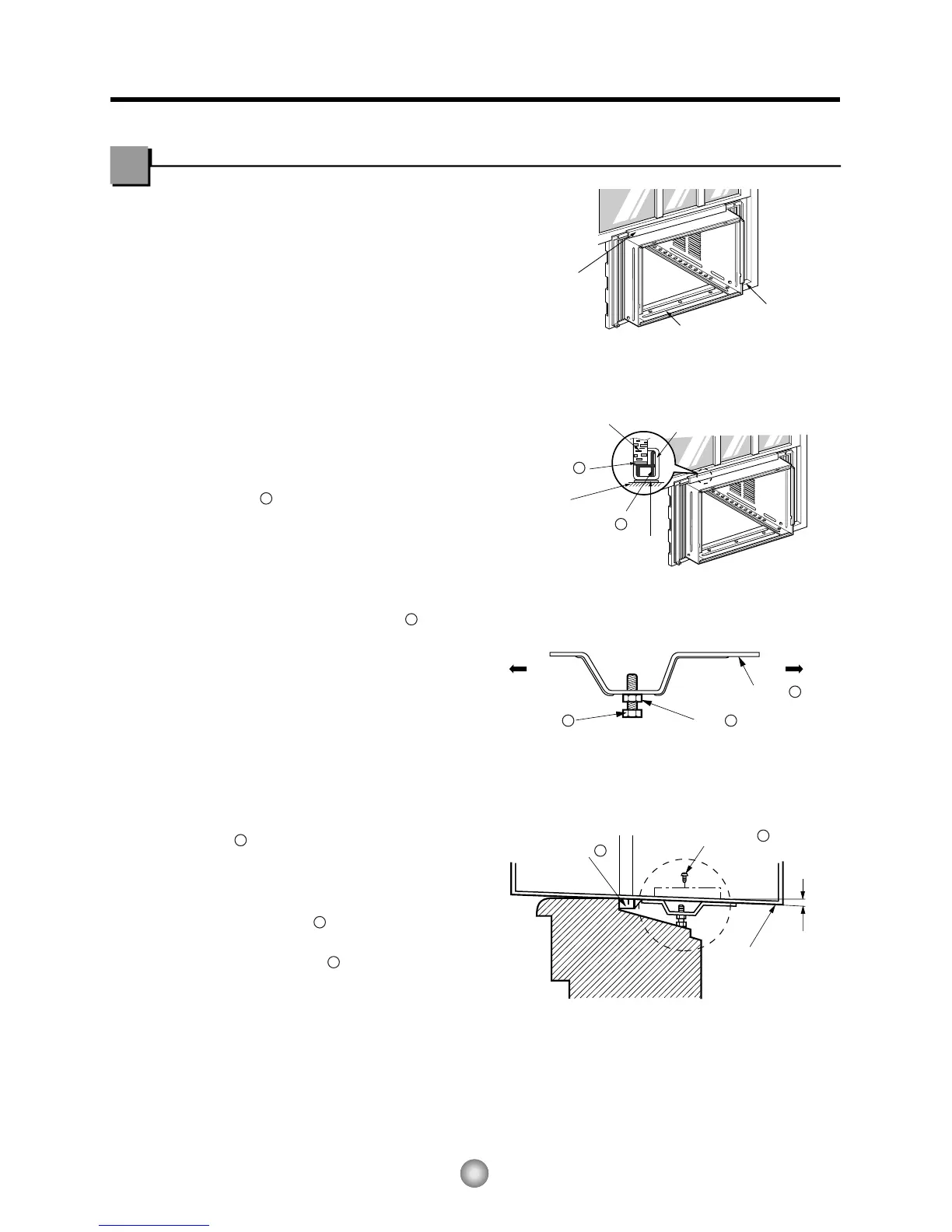

Cabinet Installation
1. Open the window. Mark a line on center of the
window stool.
Carefully place the cabinet on the
window stool and align the center mark on the
bottom front with the center line marked in the
window stool. (Fig. 1)
2. Pull the bottom window sash down behind the
Upper Guide until they meet.
NOTE: Do not pull the window sash down so
tightly that the movement of Frame
Curtain is restricted.
3. Loosely assemble the Sill Support using
the parts . (Fig. 3)
4. Select the position that will place the Sill
Support near the outer most point on sill.
(Fig. 4)
NOTE: Be careful when you install the cabinet
(Frame Guides are broken easily).
5. Attach the Sill Support to the cabinet track
hole in relation to the selected position using
2 -type A screws in each support.
( Fig. 4).
(Fig. 2)
11
5
5
6
4
7
6
9
1
6
9
6
