SPECIFICATIONS
Electrical Requirements 24k, 36K, AND 42K Outdoor Units
1. When connecting the terminal block using stranded wire, make
sure to loop the wire and secure to code requirements.
2. When connecting the terminal block using a solid core wire, be
sure to use a round crimp-style terminal for connection to the
power supply terminal block. Place the round crimp-style
terminals on the wires up to the covered part and secure in place.

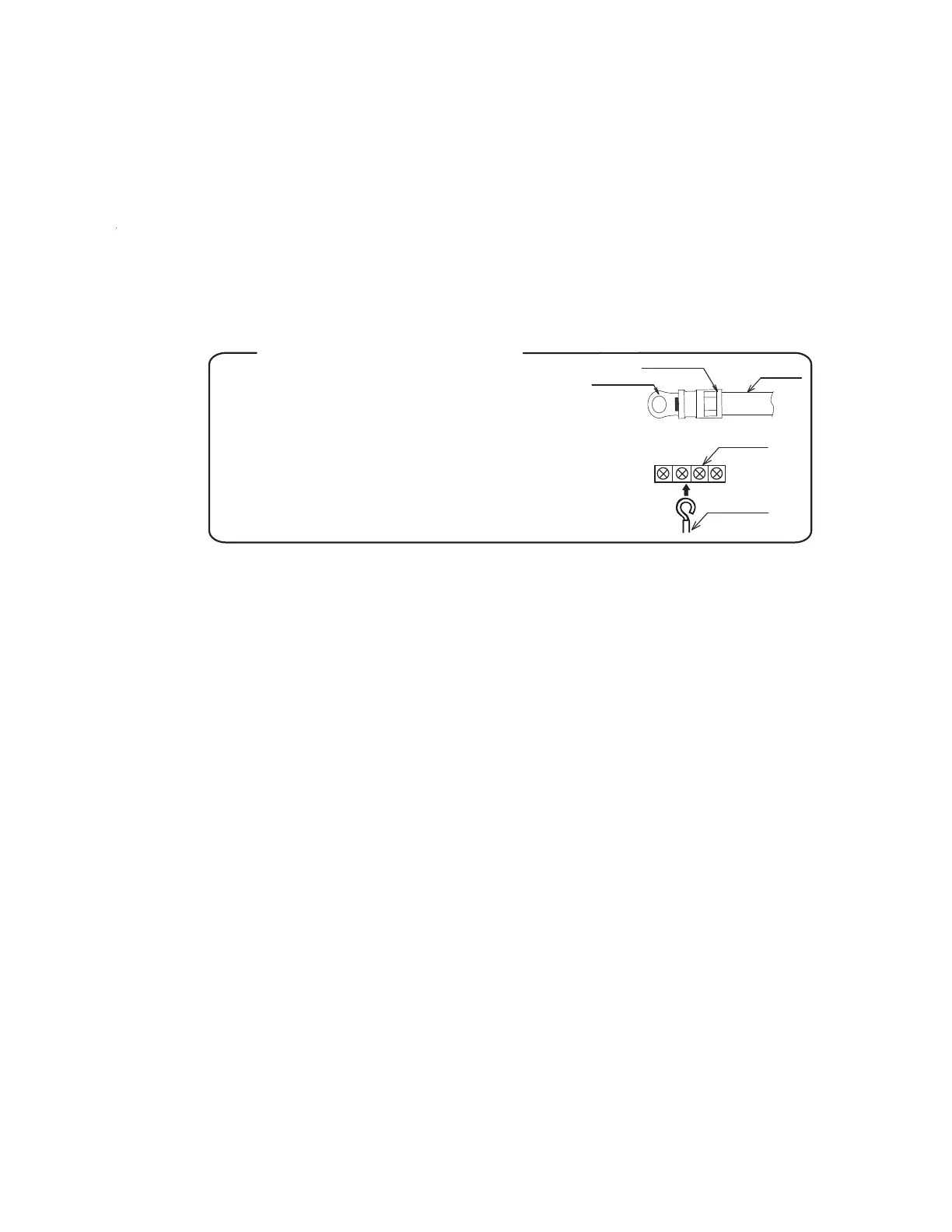

Stranded wire
Terminal
covered part
Single core wire
Round crimp- style terminal
(1) Follow local codes and regulations when selecting wire size and breakers
IMPORTANT
