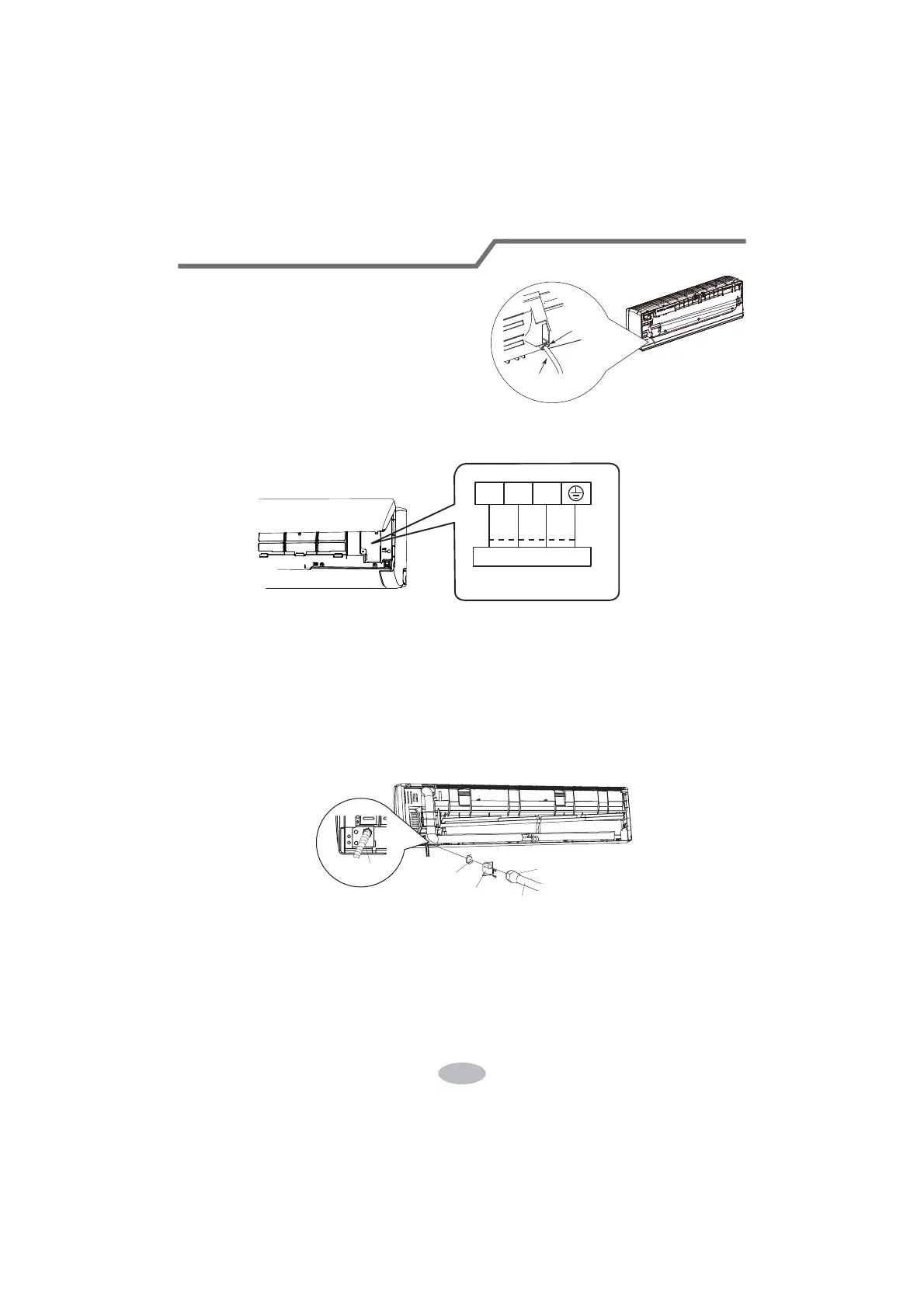

Installation of indoor unit
3.
power connection
wire
cable-cross
hole
2.
3
2
N(1)
Outdoor unit connection
green
green)
red
black
(yellow-
(brown)
white
(blue)
4. Put wiring cover back and then tighten the screw.
5. Close the panel.
6. Install the Conduit assy.
1) Fix the conduit assy on the conduit board and then let the connection wire
between indoor unit and outdoor unit go through the conduit.
2) Fix the conduit assy on the chassis with 3 screws.
Note:
Lock nut
Conduit connector
Cable Cross Plate
Conduit
connection wire
sleeve
Remove wire strain relief. Connect each wire to the corresponding terminal.
Tighten the terminals to ensure solid connections.
Conduit assy consists of conduit, conduit connector and lock nut.(Part to
be purchased from after market supplier.
The length of conduit can be calculated according to the length of connection wire.
