Friedrich FSHSR36A3A - Outdoor Unit Installation Procedure - Part 1; Unit Mounting and Drain Joint; Fixing the Outdoor Unit to Support

 

 

 


 

Installation of outdoor unit
6WHSRQH0RXQWLQJRIWKHRXWGRRUXQLW
1. 
2. 

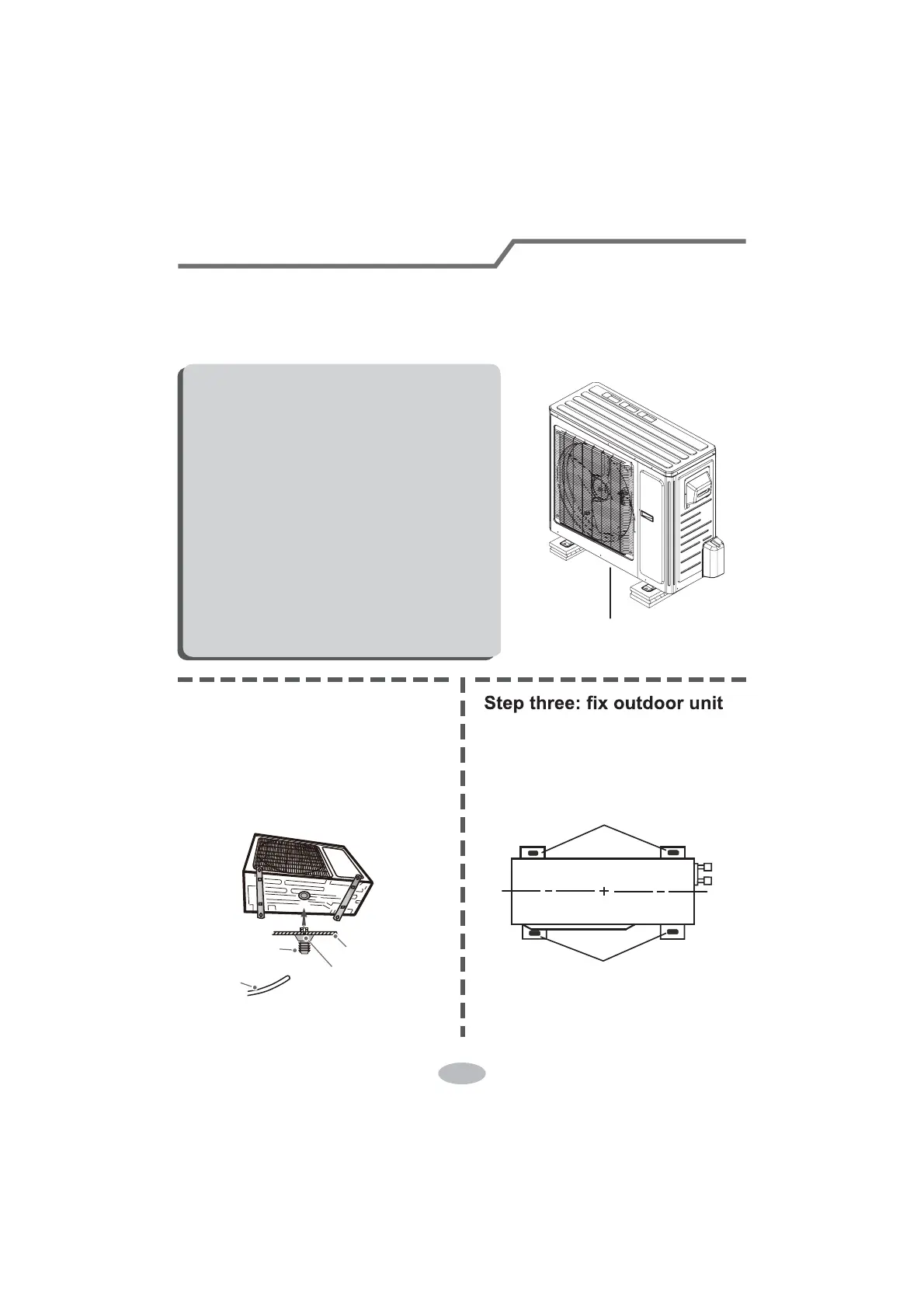

1. Place the outdoor unit on the
support.
Fix the foot holes of outdoor unit
with bolts.
2.
2. Connect the drain hose into the drain vent.
foot holes
foot holes
chassis
outdoor drain joint

drain vent
Drain hose
Connect the outdoor drain joint into
the hole on the chassis, as shown in
the picture below.
Step two: install drain joint
1.
at least 3cm above the floor
