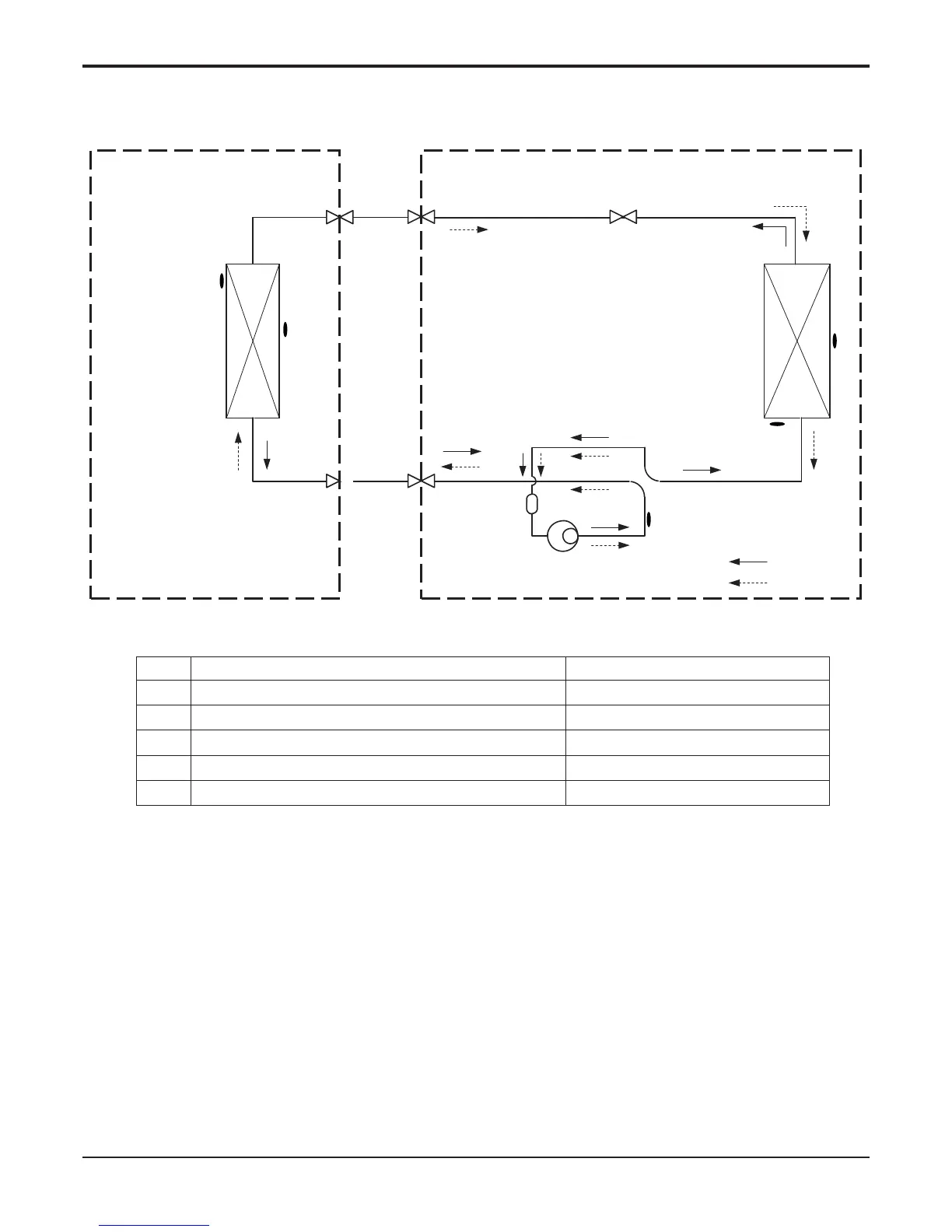

Model : M09CJ / M12CJ
Indoor Unit Outdoor Unit
Liquid Side
2-Way Valve
EEV
Th1
Heat
Exchanger
(Evaporator)
Th2
Heat
Exchanger
(Condenser)
Th5
Gas Side
3-Way Valve
Accumulator
Th4
Compressor
Th3
Cooling
Heating
LOC.
Description
PCB Connector
Th1
Thermistor for sunction air temperature
CN-TH1(Indoor)
Th2
Thermistor for evaporator middle temperature
CN-TH3(Indoor)
Th3
Thermistor for discharge pipe temperature
CN-TH2(OUTDOOR)
Th4
Thermistor for condensing temperature
CN-TH1(OUTDOOR)
Th5
Thermistor for outdoor air temperature
CN-TH1(OUTDOOR)
※
EEV : Electronic Expansion Valve
- 4 -
