3.

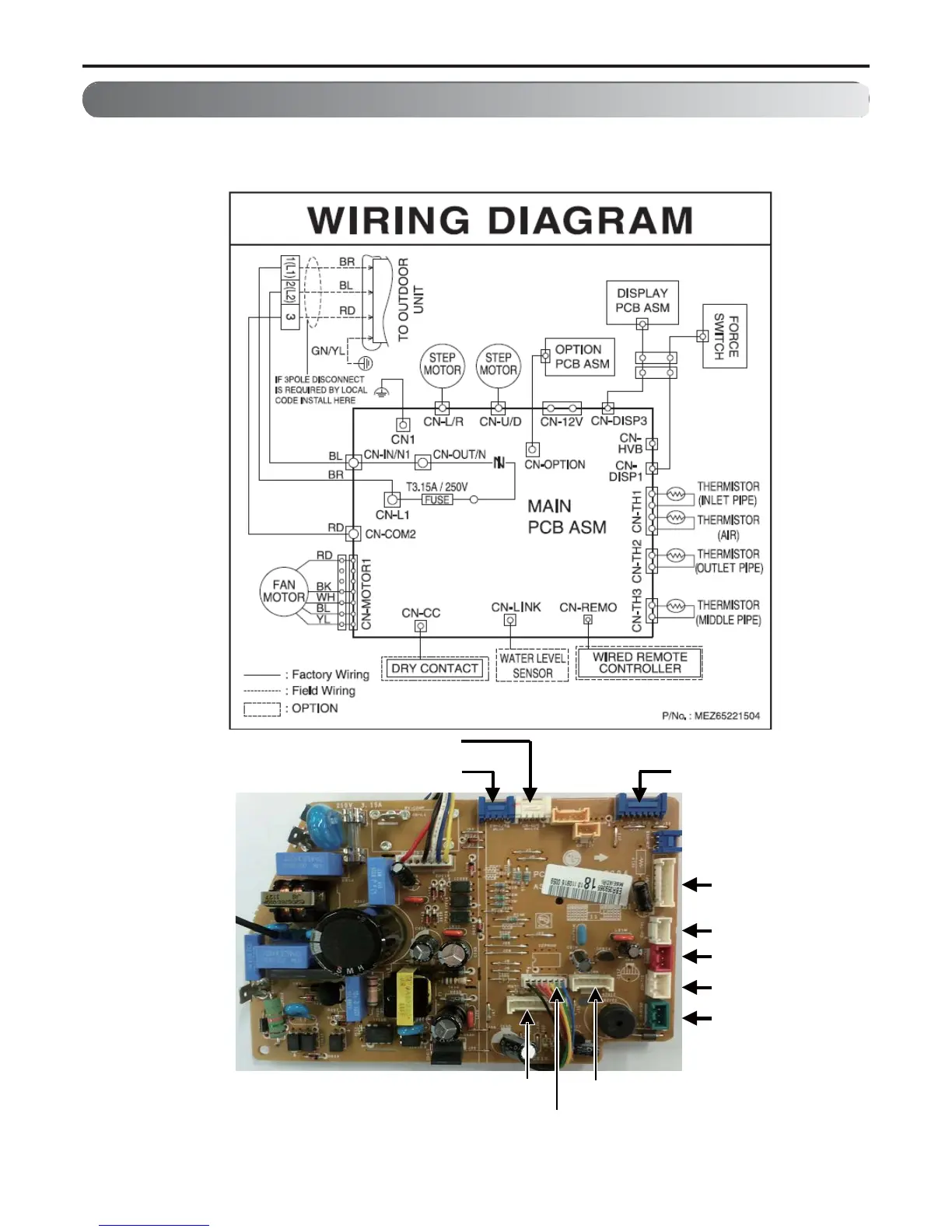

Wiring Diagrams
Indoor Unit
Model : MW09Y3J / MW12Y3J
CN-U/D
CN-L/R
CN-DISP3
CN-DISP1
CN-TH1
CN-TH2
CN-TH3
CN-CN-REMO
CN-CC
CN-LINK
CN-MOTOR1
- 5 -
