Friedrich M09YJ - Wiring Diagrams - Outdoor Unit; MR09 Y3 J; MR12 Y3 J Models

Safety Precautions
Outdoor Unit

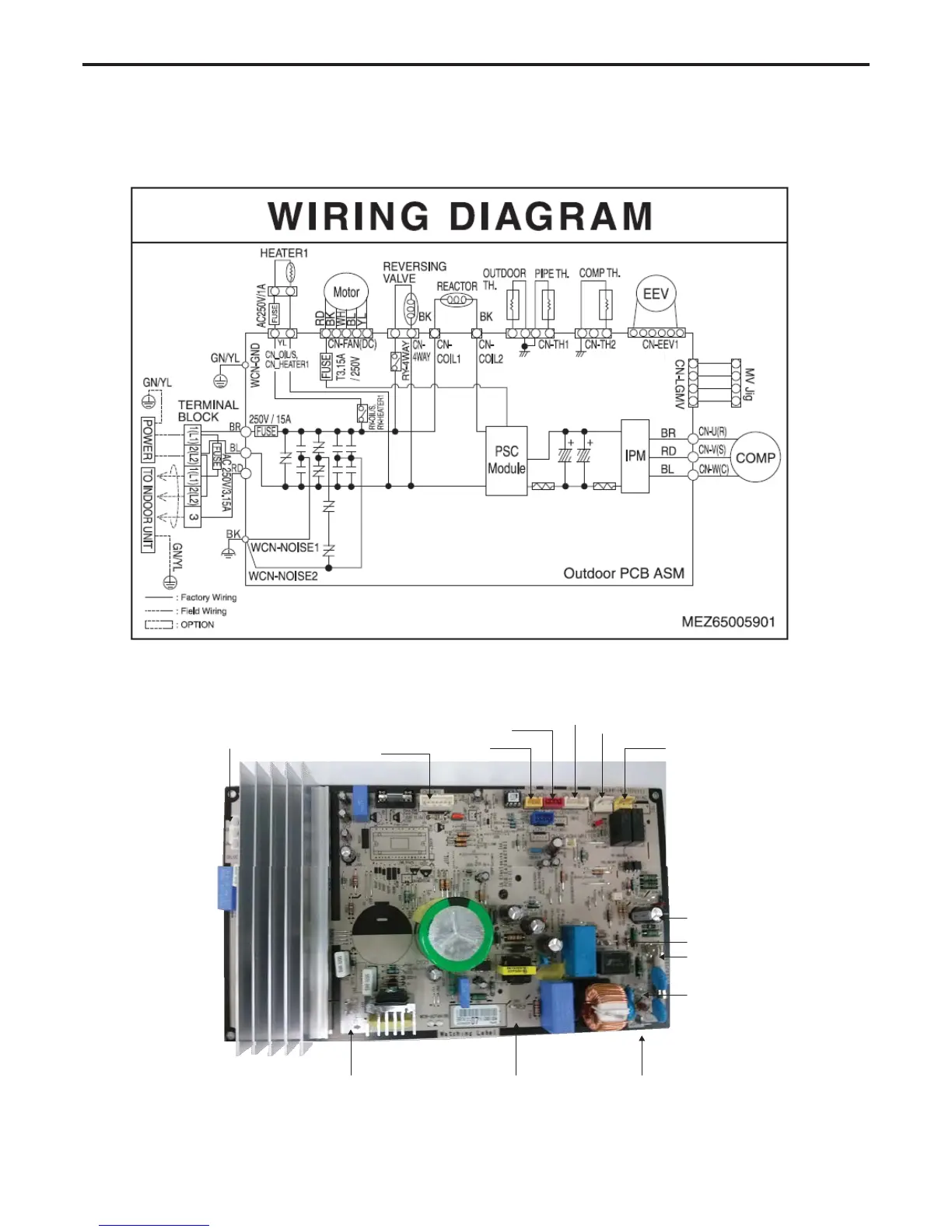

Model : MR09Y3J / MR12Y3J
CN-U(R)
CN-V(S)
CN-W(C)
CN-TH1
CN-FAN(DC)
CN-TH2
CN-EEV
CN-4WAY
CN-HEATER
CN-COM
CN-COIL1
WCN-P(L)
CN-3
CN-COIL2 CN-E WCN-P(N)
