Chassis Install Preparation
16
Chassis Install Preparation
Check to be sure the wall sleeve, extension (if used), grille, and drain kit are installed properly before chassis
installation.
1. Remove the weatherboard and center support from the sleeve (if
still in place). Be sure an outdoor grille is attached.
NOTE: Use a wall sleeve adapter kit (PXSE) if installing a P-Series
chassis in a T-Series sleeve.
2. Remove the front cover contained in a protective plastic bag
from chassis. Remove the bag and dispose of it properly.
If the control door is not installed, follow these steps:
a. From the front cover, slide the right control door pin into the
hole on the right side of the front cover.
b. Slide the left door pin into the hole on the left side of the
front cover opening.
c. Snap cover into place.
NOTE: To avoid breaking the door or hinge pins, do not apply excessive
force when installing.
IMPORTANT: When installing a Friedrich PTAC into an existing sleeve,
it is important to ensure that the unit is installed completely. Inspection
of the air seal between the condenser air bafes and around the indoor
mounting ange is recommended.
In some cases additional gaskets or bafing may be required.
Suffocation Hazards
Keep bag away from babies and children.
Do NOT use in cribs, beds or playpens.
Destroy immediately after opening. This bag
is NOT a toy.
Failure to do so can result in personal injury
and/or death.
WARNING
FRP015

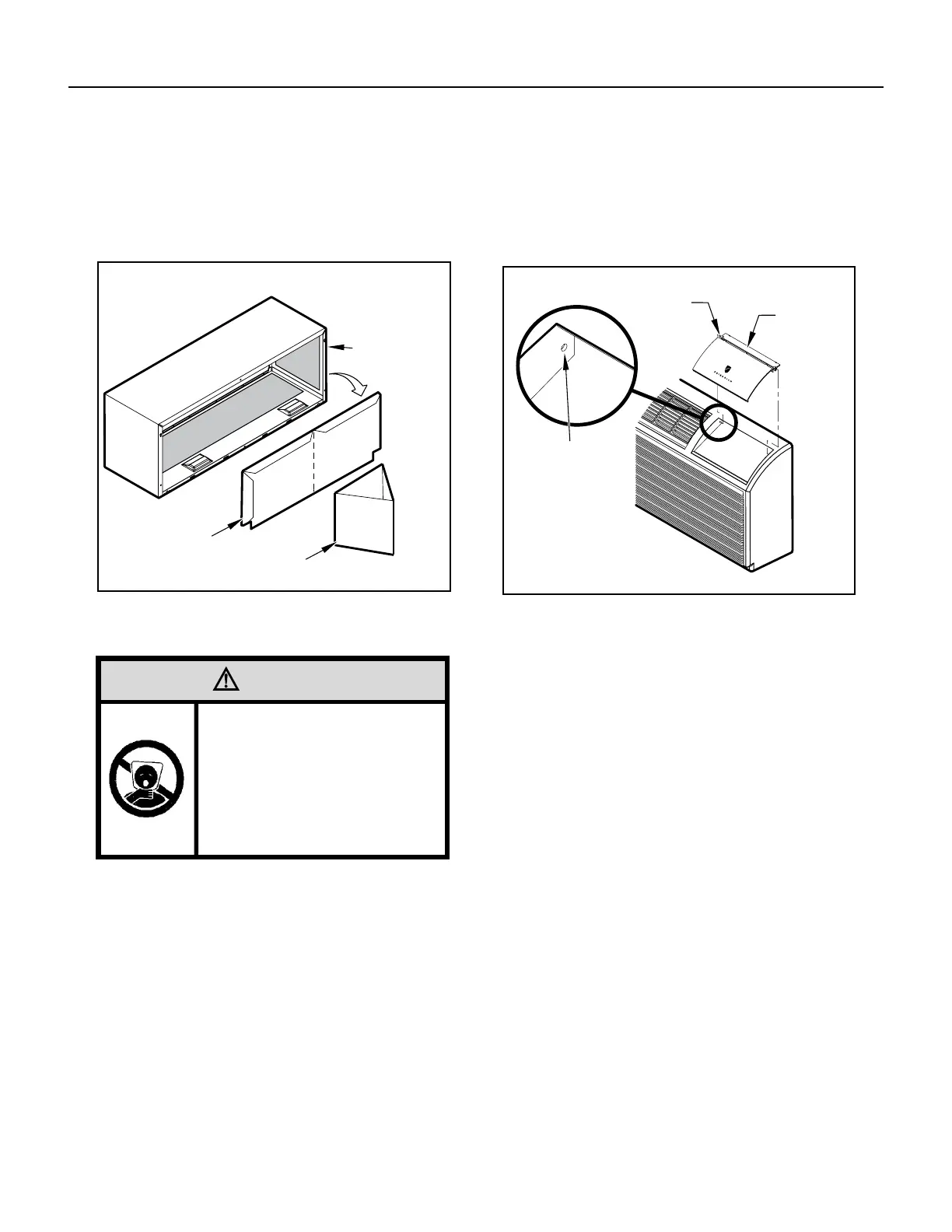

WALL SLEEVE
WEATHERBOARD
CENTER SUPPORT
Figure 18
FRP016
PIN
INSERT PIN
IN THIS LOCATION
CONTROL
DOOR
Figure 19
