27

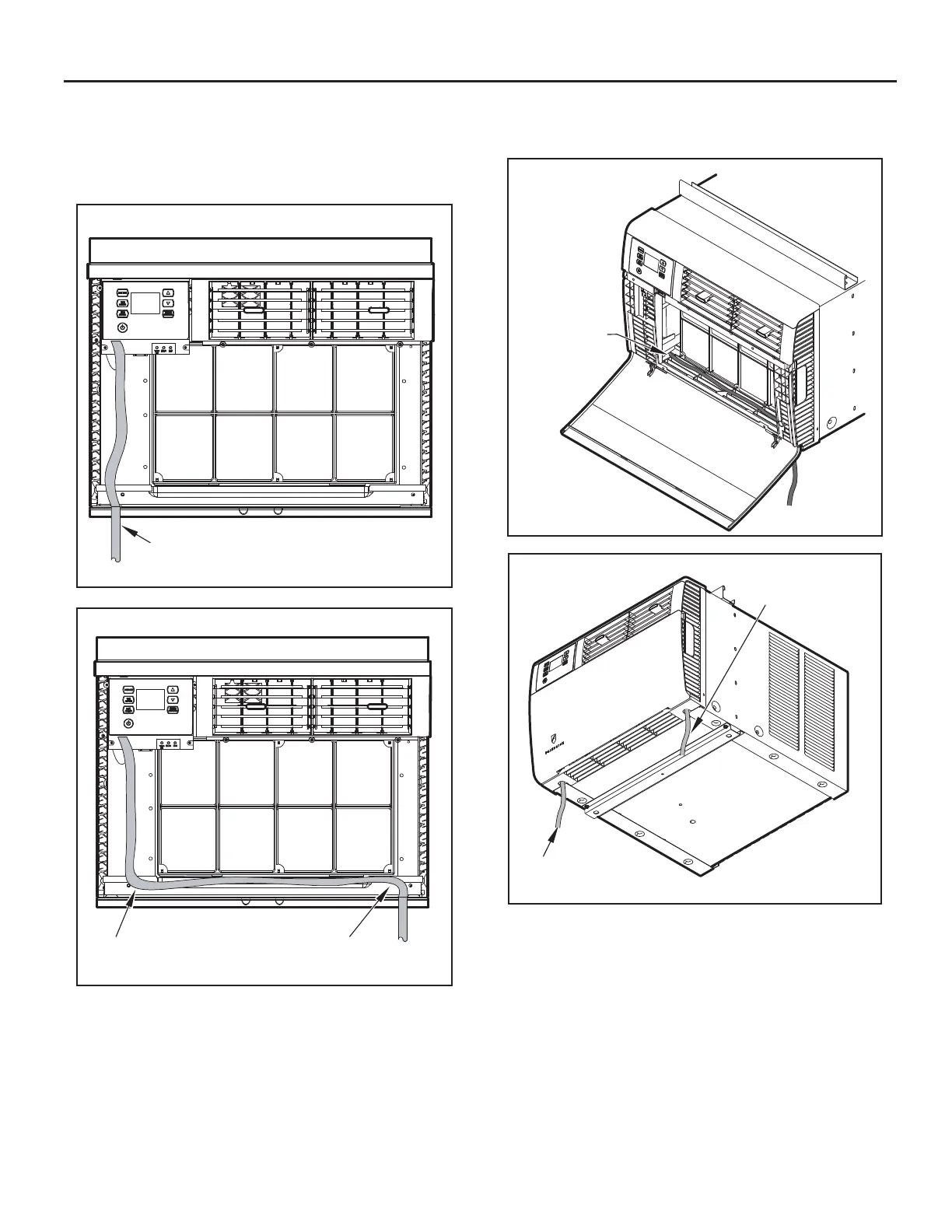

FRR201
FACTORY SETTING WITH LEFT-SIDE
CORD PLACEMENT
Figure 19
STEP 2. In order to run the power cord to the right of the unit, route
the cord along bottom inside of the unit (See Figures 20 and
21), under the lower left mounting screw embossments (See
Figure 22) and exit the cord through right side cord opening
(See Figure 22) of the decorative front cover. Decorative front
cover will keep cord in place.
FRR202
NEW CORD ALIGNMENT FOR ROUTING CORD
EXIT TO THE RIGHT OF UNIT
FRR099
CLOSE-UP OF
CORD UNDER
LEFT MOUNTING
SCREW
EMBOSSMENT
Figure 20
STEP 3. Reinstall the 4 screws removed earlier to secure Decorative
front cover with cord exiting to the front bottom of the unit. (4
screws RETAINED FROM STEP 1)
Figure 21
Figure 22
FRR200
LEFT-SIDE
CORD ROUTING
RIGHT-SIDE
CORD ROUTING
