34

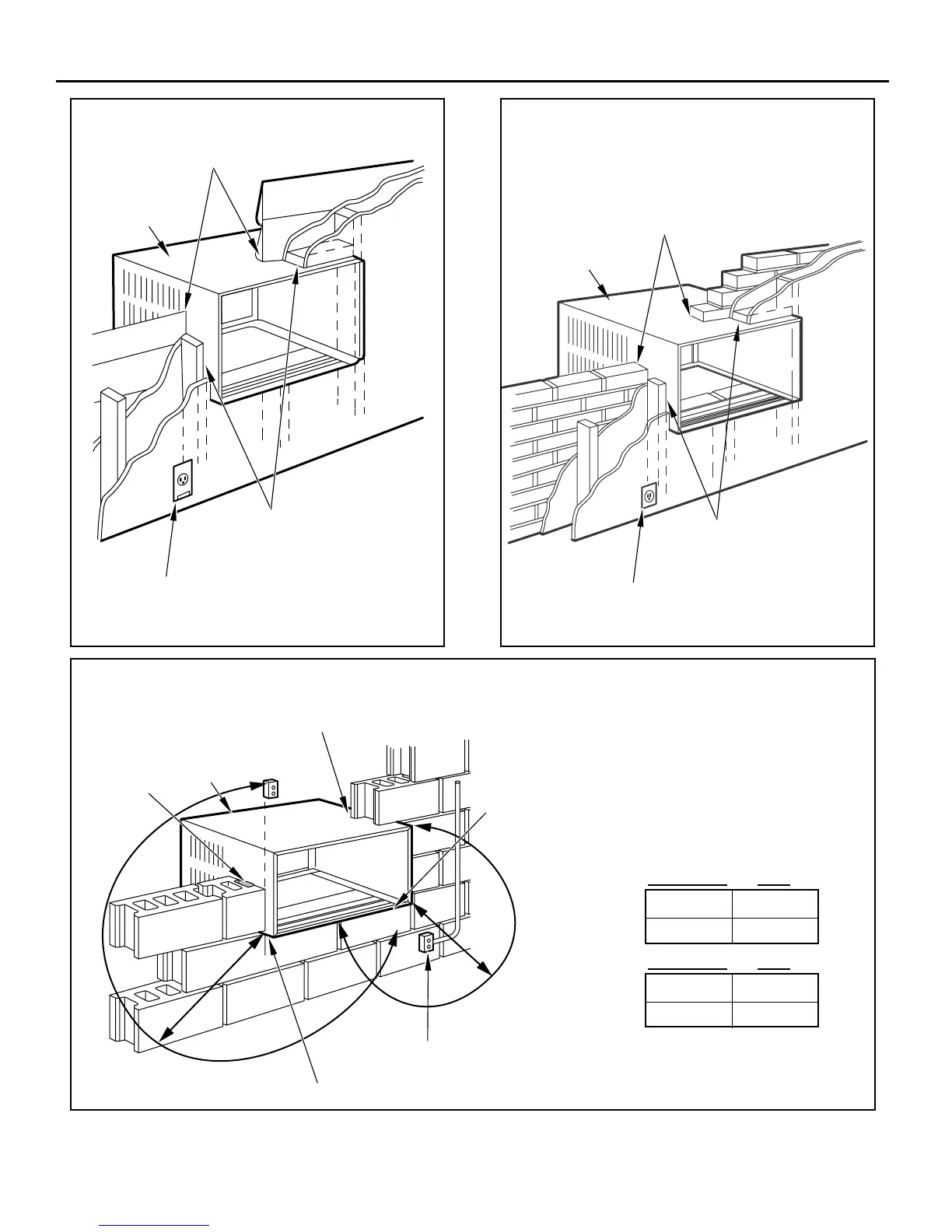

FRR028
CAULK ALL SIDES
INSIDE AND OUTSIDE
CABINET
ELECTRICAL RECEPTACLE
(SEE FIG. 42 FOR LOCATION NOTE)
SHIM TO FILL IN VOID AT THE
TOP AND SIDES WITH WOOD
AS REQUIRED.
Figure 40
FRR029
CAULK ALL SIDES
INSIDE AND OUTSIDE
CABINET
ELECTRICAL RECEPTACLE
(SEE FIG. 42 FOR LOCATION NOTE)
SHIM TO FILL IN VOID AT THE
TOP AND SIDES WITH WOOD
AS REQUIRED.
Figure 41
FRR030
CAULK ALL SIDES
INSIDE AND OUTSIDE
CABINET
ELECTRICAL
RECEPTACLE
MORTAR
POINT “Y”
From Point "X" Small/Medium Large
115V 69” N/A
230V 45” 45”
POINT “X”
From Point "Y" Small/Medium Large
115V 45” N/A
230V 21” 20”
Figure 42
