Installing the window adapter kit
Note: The window adapter kit must be installed and con-
nected for the air conditioner to work properly in Cool mode.
The window adapter kit is not required when using the unit
in Dehumidify or Fan modes.
Your window adapter kit has been designed to fi t most stan-
dard vertical and horizontal window applications. However,
it may be necessary for you to modify some aspects of the
installation procedures for certain types of windows.
1. Open window.
2. Place window panel with extensions into windowframe
and adjust to width of window.
Window adapter kit may be installed vertically aswell as
horizontally. This installaton may also be used for crank
style windows.
3. Tighten the four screws on the window panel to secure
the window panel extensions.
4. Close window.
5. The window adapter kit should now fi t securely within
the window frame and you can now attach the air ex-
change tubes. If you are having trouble attaching the air
exchange tubes, you may attachthe tubes prior to install-
ing the window adapter kit.

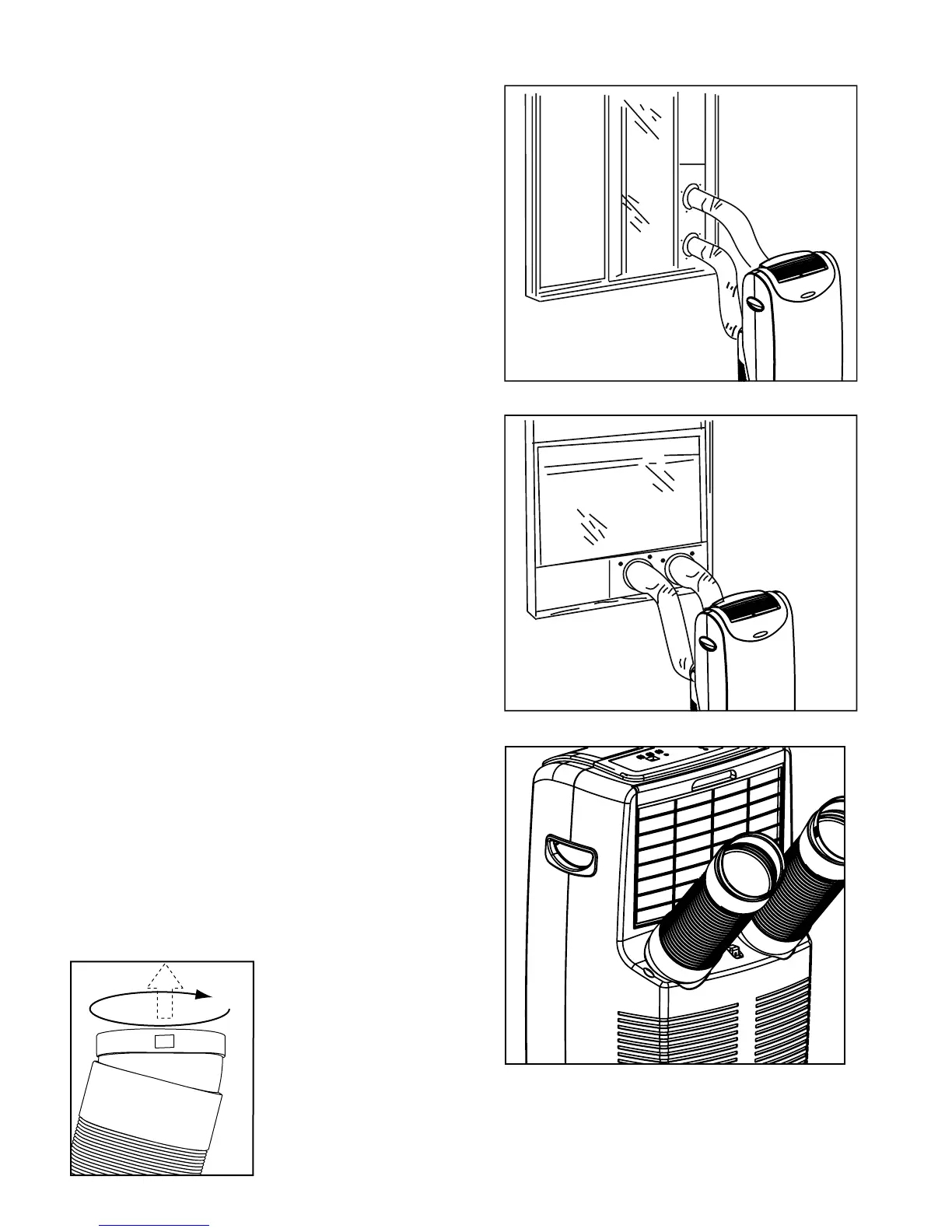

Attaching the air exchange tubes to the air
conditioner
1. Attach the tubes to the window adapter kit.
2. Attach the other end to the air conditioner.
To attach air exchange tubes: push tube onto tube adapter
and twist until the tab is in place in the hole on the tube.
To remove air exchange tubes: twist the end until the tab is
clear of the hole in the tube and pull off.
Do not attach the tubes if using the unit in dehumidify
mode.
Maintain a clear distance (from walls, furniture, etc.)
of at least 10 inches around the unit to allow proper
air circulation and prevent damage to the unit.
Important: Do not over-stretch the exhaust tube or-
make any unnecessary bends in it.
