Chapter 2
Page 18

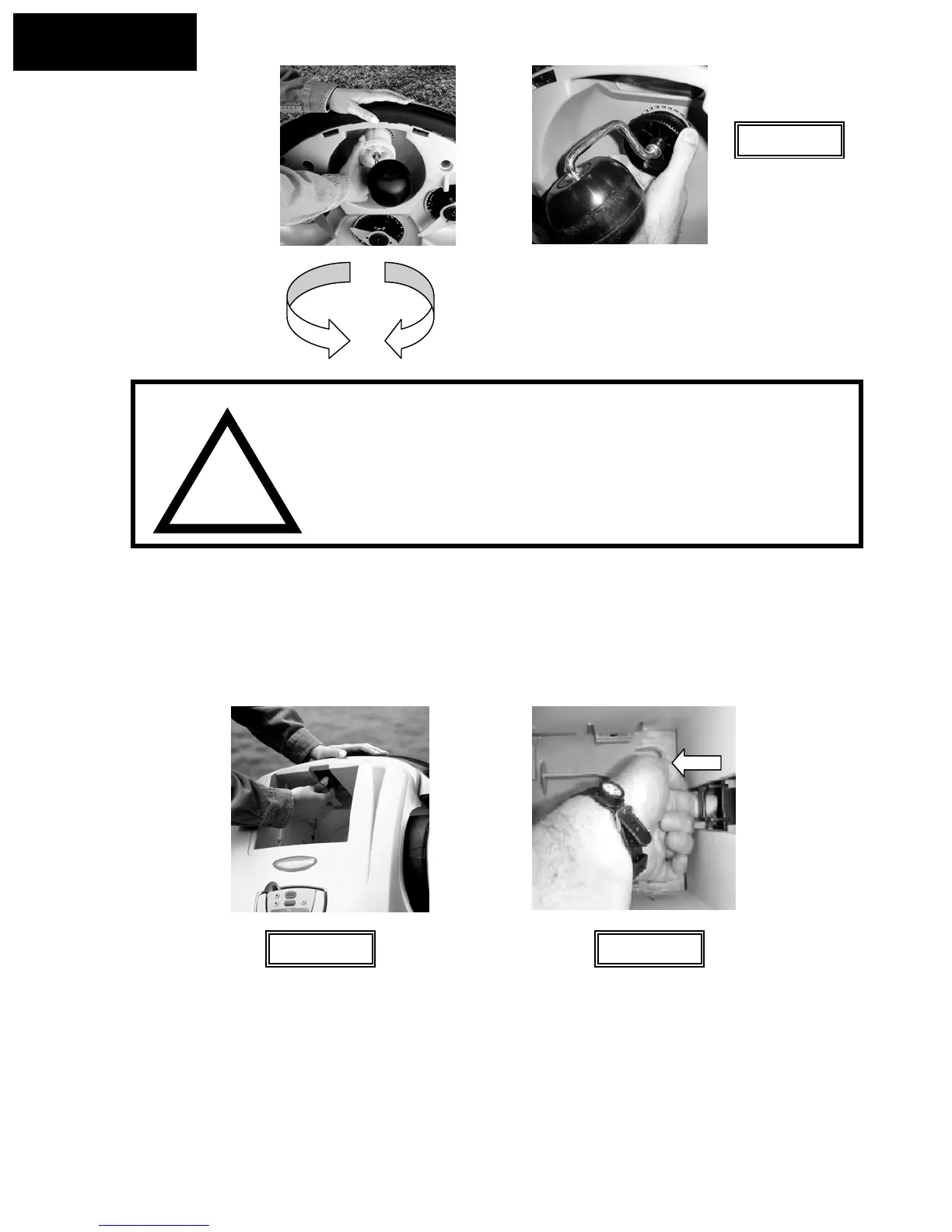

Rotate the front wheel
hub in (lower) or out
(higher) to adjust the
cutting height. Each
click represents about
1/4 inch (6 mm) in
height of cut.
Figure 2.6
Rotate this
direction for
higher cut
Rotate this
direction for
lower cut
Severe injury is possible. Always remove the Power Pack when attempting
to adjust the height of cut or otherwise lifting the mower off the ground.
Never lift the mower or attempt to adjust the cutting height during
operation. Blades are very sharp and severe cuts or lacerations are
possible. When working around or near the blades always wear heavy
gloves.
!
WARNING!
The ground height adjustment is located in the Power Pack compartment of the mower. See Figure
2.7. It has two positions, upper and lower. (RL550 Europe has three; upper, lower and middle) The
lower position (closest to the bottom of the Power Pack compartment) provides the highest level of
ground clearance while the upper position (farthest from the bottom of the Power Pack compartment)
provides the least amount of ground clearance. See Figure 2.8.
Rear ground height
adjustment is located
in the Power Pack
compartment.
To adjust ground
clearance, pull
out on tab as
shown and slide
tab up or down.
Figure 2.7 Figure 2.8
