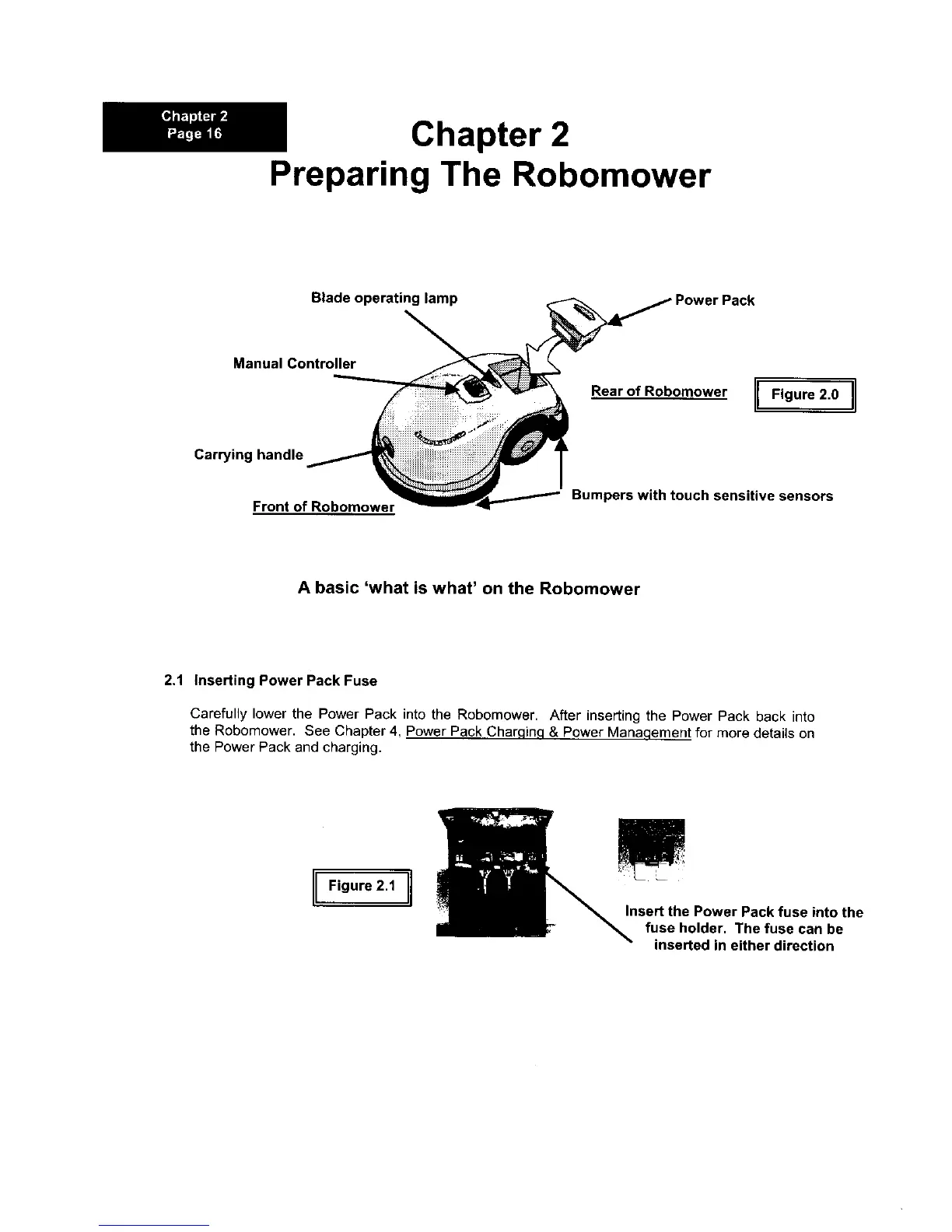

Chapter 2
Preparing The Robomower
Blade operating lamp Power Pack
Manual Controller
Rear of Robomower [I Figure2.0 I]
Carrying handle
Front of Robomower
Bumpers with touch sensitive sensors
A basic 'what is what' on the Robomower
2.1 Inserting Power Pack Fuse
Carefully lower the Power Pack into the Robomower. After inserting the Power Pack back into
the Robomower. See Chapter 4, Power Pack Charqinq & Power Manaqement for more details on
the Power Pack and charging.
I Figure 2"1 IJ
Insert the Power Pack fuse into the
fuse holder. The fuse can be
inserted in either direction
