Squeeze tabs & pull
I
0
!
I
Squeeze tabs & pull
i Figure 9.1
Locking tabs
Squeeze here
!
!
Squeeze here
ALWAYS REMOVE POWER
PACK BEFORE SERVICING
BLADES!
I Mating spline I

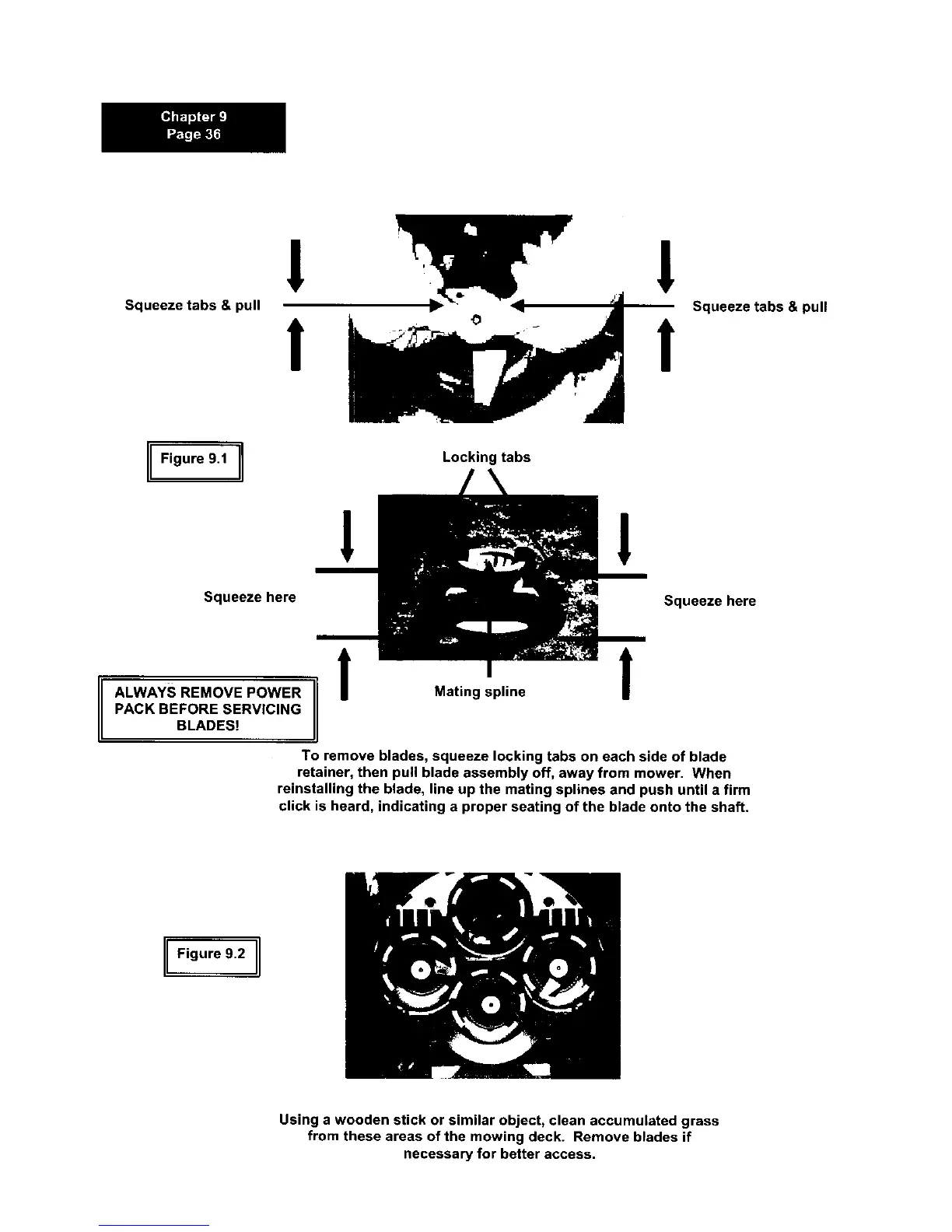

To remove blades, squeeze locking tabs on each side of blade
retainer, then pull blade assembly off, away from mower. When
reinstalling the blade, line up the mating splines and push until a firm
click is heard, indicating a proper seating of the blade onto the shaft.
Figure 9.2
Using a wooden stick or similar object, clean accumulated grass
from these areas of the mowing deck. Remove blades if
necessary for better access.
