GAS COOKTOP INSTALLATION INSTRUCTIONS
(For 30" & 36" Models)
3

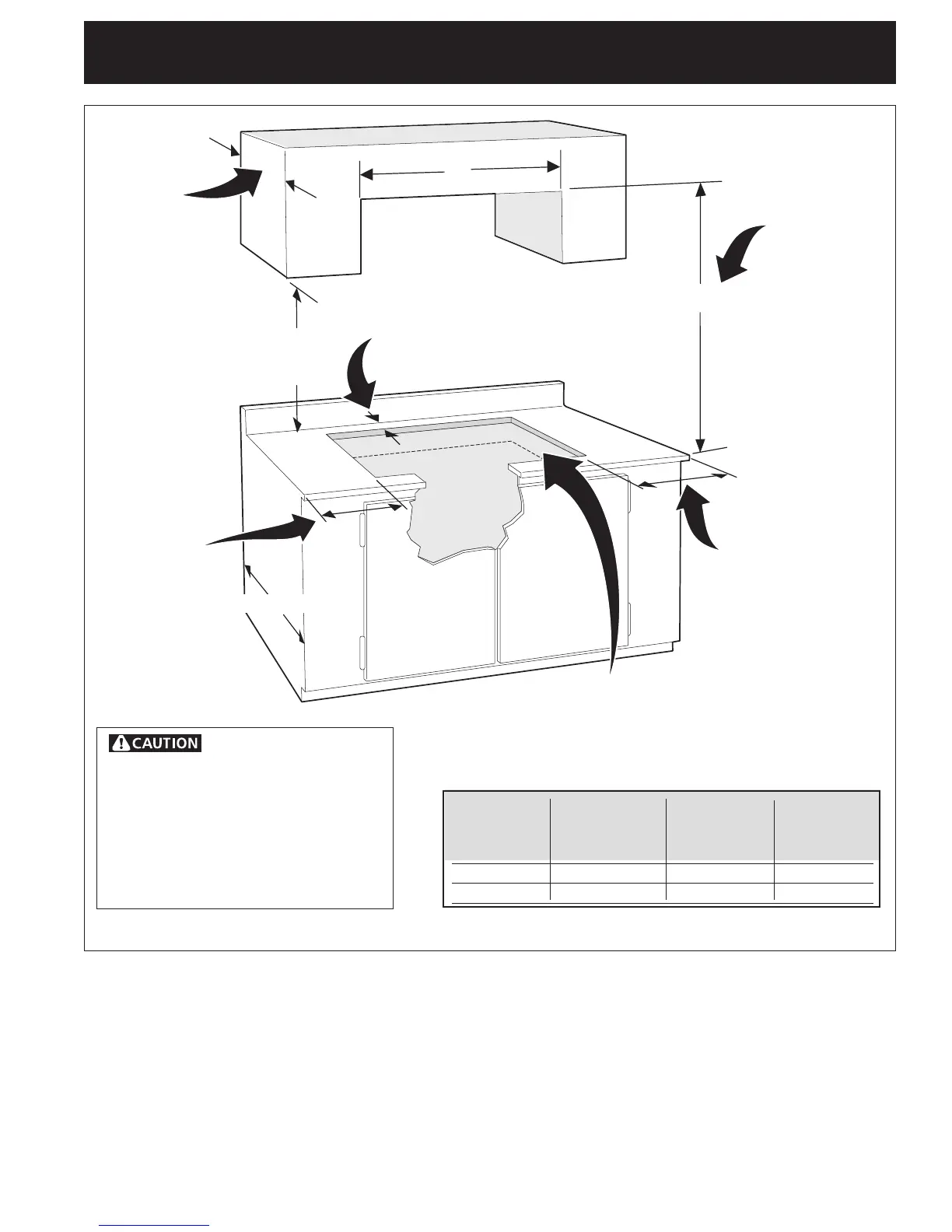

Figure 2 – CABINET DESIGN
To eliminate the risk of
burns or fire from reaching over heated
surfaces, cabinet storage space located
above the cooktop should be avoided. If
cabinet storage is provided, risk can be
reduced by installing a range hood that
projects horizontally a minimum of 5"
(12.7 cm) beyond the bottom of the
cabinets.
MODEL A B. Minimum C. Minimum
Clearance from Clearance from
Left Side Right Side
30" Cooktop 30" (76.2 cm) 5" (12.7 cm) 5" (12.7 cm)
36" Cooktop 36" (91.4 cm) 5" (12.7 cm) 5" (12.7 cm)
A
1½" (3.8 cm)Minimum Distance
Between Rear Edge of Cutout
and Nearest Combustible Surface
Above Countertop.
18" Min.
(45.7 cm)
Clearance
30" (76.2 cm)
Min. Clearance
Between the
Top of the
Cooking
Platform and
Unprotected
Wood or Metal
Cabinet
24" (61 cm)
13" (33 cm)
Max. Depth
For Cabinet
Installed Above
Cooktop.
C
B
Drawers Cannot Be Used with This
Cooktop Since Burner Box Extends
3
5
/
32
" (8.02 cm) Below Surface of
Countertop.
