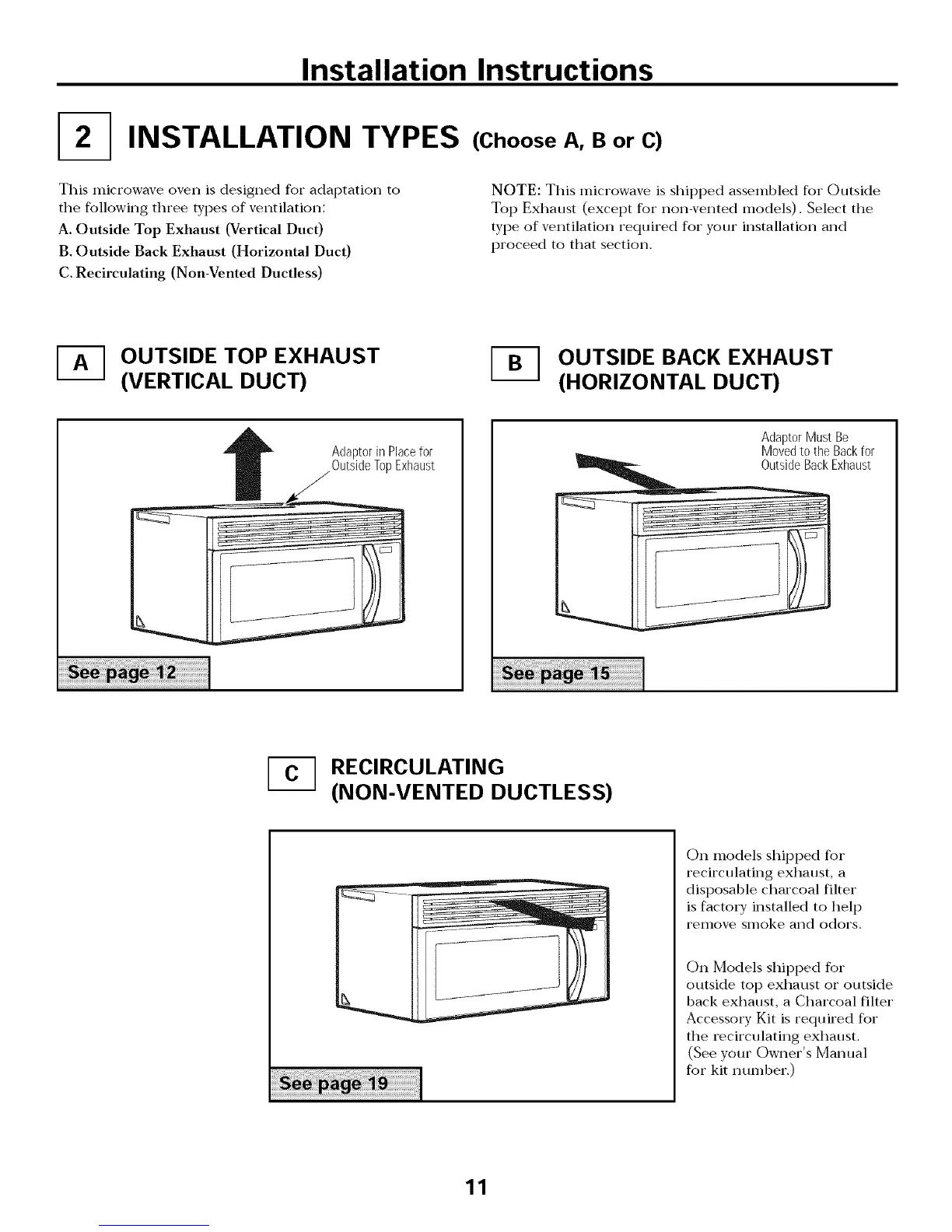

Installation Instructions
I-2-1 INSTALLATION TYPES (Choose A, B or C)
This microwave oven is designed for adaptation to
the following three types of ventilation:
A. Outside Top Exhaust (Vertical Duet)
B. Outside Back Exhaust (Horizontal Duet)
C. Reeirculafing (Non-Vented Ductless)
NOTE: This microwave is shipped assembled for Outside
Top Exhaust (except for non-vented models). Select the
type of ventilation required for your installation and
proceed to that section.
_-_ OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
[_ OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
Adaptorin Placefor
OutsideTopExhaust
AdaptorMust Be
Movedto the Backfor
OutsideBackExhaust
[_ RECIRCULATING
(NON-VENTED DUCTLESS)
On models shipped for
recirculating exhaust, a
disposable charcoal filter
is factory installed to hel t)
remove smoke and odors.
On Models shipped for
outside top exhaust or outside
back exhaust, a Charcoal filter
Accessory Kit is required for
the recirculating exhaust.
(See your Owner's Manual
for kit number.)
11
To Next Page
