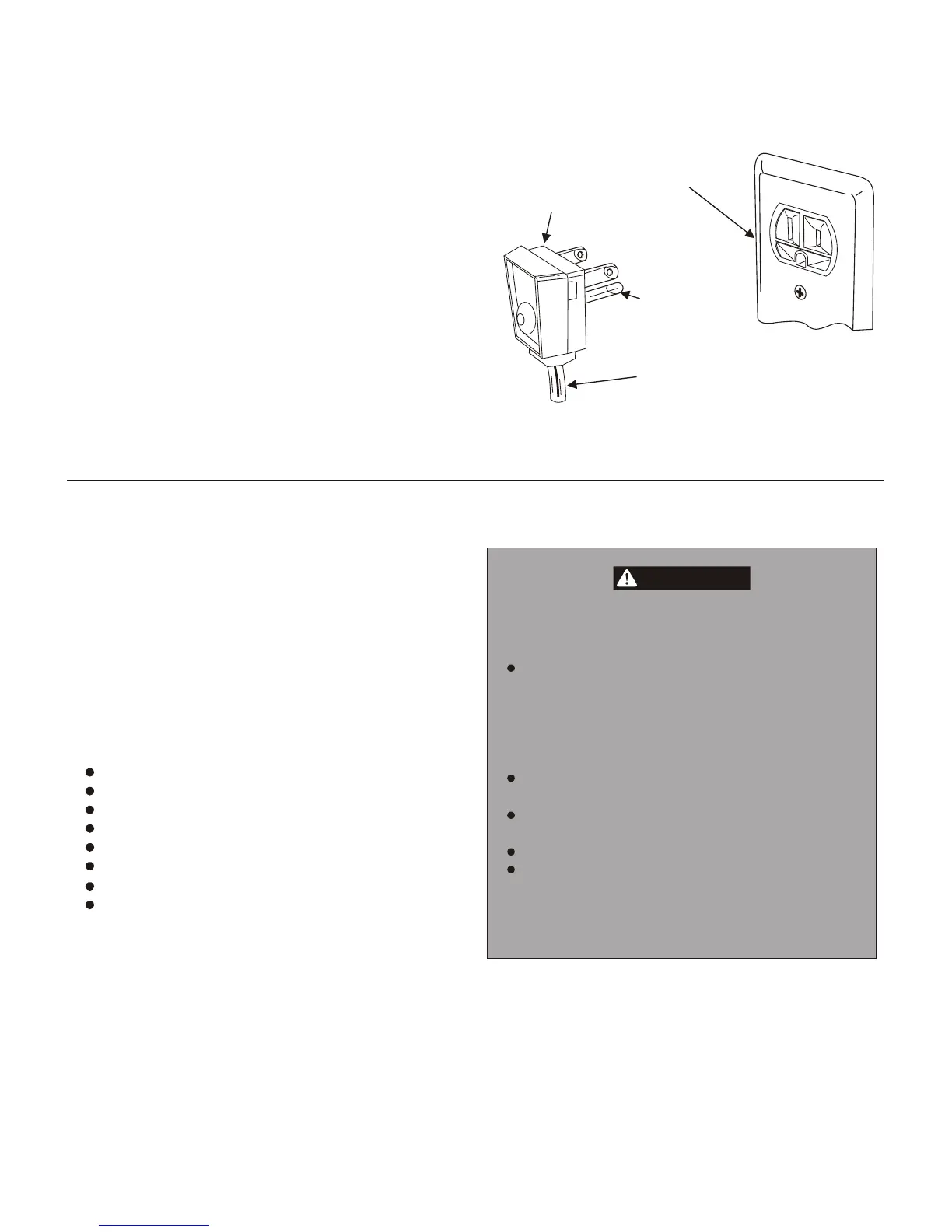

Recommended grounding method:
For your personal safety, this appliance must be
grounded. This air conditioner includes a power
supply cord with a 3-prong grounding plug. To
minimize possible electrical shock hazard:
-cord must be plugged into a mating 3-prong
grounding-type wall receptacle,
-must be grounded in accordance with
National Electrical Code (ANSI/NFPA 70-
latest version) and
-all local codes and ordinances.
If a mating 3-prong grounding-type wall receptacle is
not available, it is the responsibility of the consumer
to have a properly grounded 3-prong wall receptacle
installed by a qualified electrician.
Electrical Connection
Electrical ground is required on this appliance.
Preparing for Installation
For wood-frame casement windows: It may be
necessary to construct a frame, using at least 1-inch
thick wood, with a 15-1/2-inch wide opening.
For brick or cement building construction: It may
be necessary to put a wood stool strip under AC, for
mounting purposes.
Installation Tips
Tools Required
Flat-head screwdriver
Phillips-head screwdriver
Carpenter's level
Tape measure
Fine tooth saw
Electric or hand drill
WARNING
3 Prong
Grounding
Plug
3 Prong
Grounding
Type
Wall
Receptacle
Grounding
pron
g
Power
Supply Cord
(6
feet long)
2
Failure to adhere to the following precautions could
result in personal injury and product damage.
Because this unit weighs about 88 to 105 pounds,
it is recommended that you have someone help
you when install your new unit, and that you both
use proper lifting techniques. Inspect the condition
of the window where unit will be installed. Be sure
it will support the weight of the unit.
This appliance must be installed according to all
applicable codes and ordinances.
Handle AC with care. AVOID sharp metal fins on
front and rear coils.
Make sure your AC does not fall during installation.
Do not use water collected in the unit for drinking
purposes. It is not sanitary.
Knife and scissors
Pencil
To Next Page
